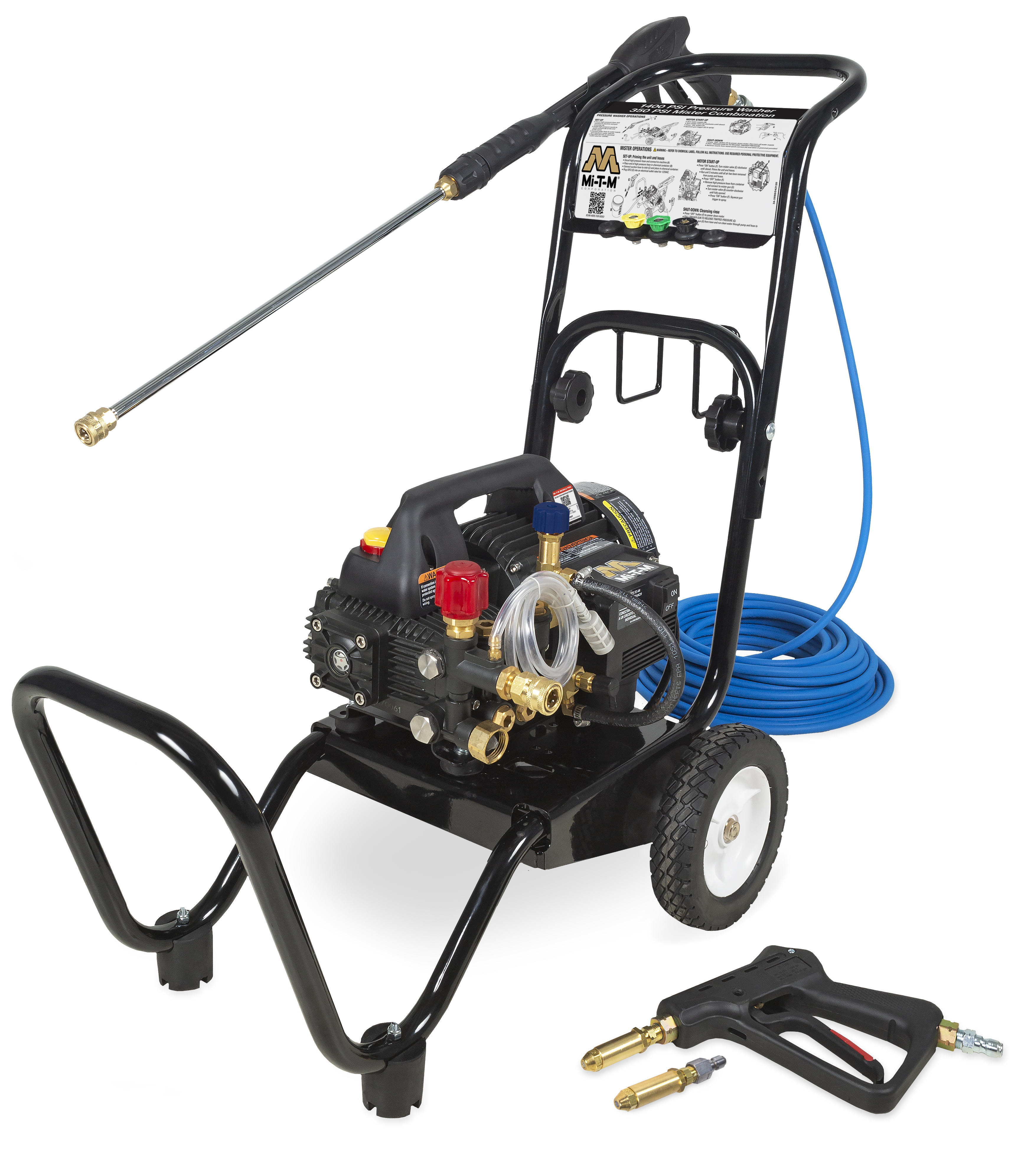

Mister Combination Electric Direct Drive - CM-1400-0MEC-M

CM-1400-0MEC-M

This combination unit can be used for all-purpose cleaning around the home or small business. In mister mode, disinfectant can be applied right where it is needed.

Mister Droplet Size
20 to 30-micron at 2-inches from tip at 350-PSI

Pump
Triplex crankshaft pump · Adjustable pressure unloader · Thermal relief valve · In-line water strainer · Oil drain, fill port and sight glass · Misting valve · Built-in low pressure detergent injector for pressure washer use only

Motor
Totally enclosed fan-cooled electric motor · 35-foot power cord with GFCI and 15-amp plug

Frame
Powder coated steel frame with upright tilt back design · Two rubber isolators and two 8-inch tires

Unit Includes
Quick connect nozzles – 15°, 25°, detergent and misting nozzles · 75-foot x ¼-inch non-marking hose · Two piece, 36-inch lance with trigger gun · Additional trigger gun with misting nozzle

Specifications

  • Type

    Cart-mount

  • PSI - Pressure Washer Mode

    1400

  • GPM - Pressure Washer Mode

    1.5

  • PSI - Mister Mode

    350

  • Flow - Mister Mode (GPM / GPH)

    .049 / 2.93

  • Horsepower/Motor

    1.5 HP, 120V, 1Ø, 13.5A

  • Plug Type

    NEMA 5-15P

Weights & Dimensions

  • Net Weight

    85.00 lbs.

  • Shipping Weight

    110.00 lbs.

  • Length

    26.00 in.

  • Width

    18.00 in.

  • Height

    38.00 in.

Options

  • No options
Warranty Information
  • 1 Year Electric Motor
  • 1 Year Pump
Additional Info
