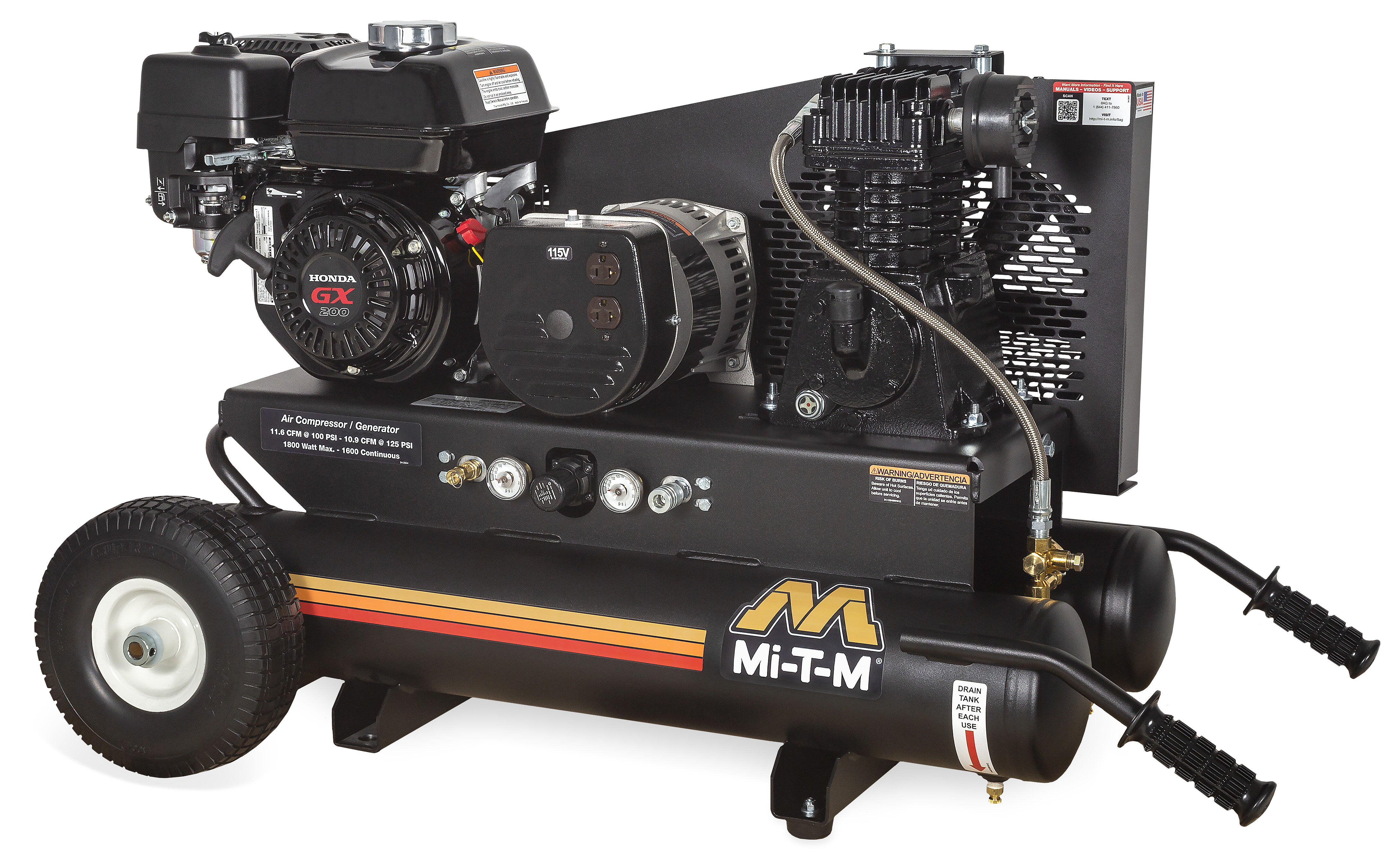

8-Gallon Single Stage Gasoline Combination - AG1-PM07-08M1

AG1-PM07-08M1

Combining two machines into one, this air compressor/generator combination unit is great for completing multiple jobs requiring both air power and electricity.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Generator
Brushless alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings · (2) NEMA 5-20R 120V, 20A receptacles

Frame
Powder coated twin tank receivers · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · 10-inch flat-free tires

Components
Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 12 or 16 ½-inch fly wheel · Quality pilot valve unloader

Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult factory.

Specifications

  • CFM @ PSI

    11.9 @ 90

  • CFM @ PSI

    10.9 @ 125

  • Alternator Wattage: Max. Output

    1800 watts

  • Alternator Wattage: Cont. with Comp. On-Load

    600 watts

  • Alternator Wattage: Cont. with Comp. Off-Load

    1600 watts

  • Displacement/ Engine

    212cc Mi-T-M OHV

Weights & Dimensions

  • Net Weight

    207.00 lbs.

  • Shipping Weight

    257.00 lbs.

  • Length

    44.50 in.

  • Width

    26.00 in.

  • Height

    27.50 in.

Options

  • No options
Warranty Information
  • 2 Year Alternator
  • 2 Year Pump Exchange
  • 3 Year Mi-T-M Engine
Additional Info
