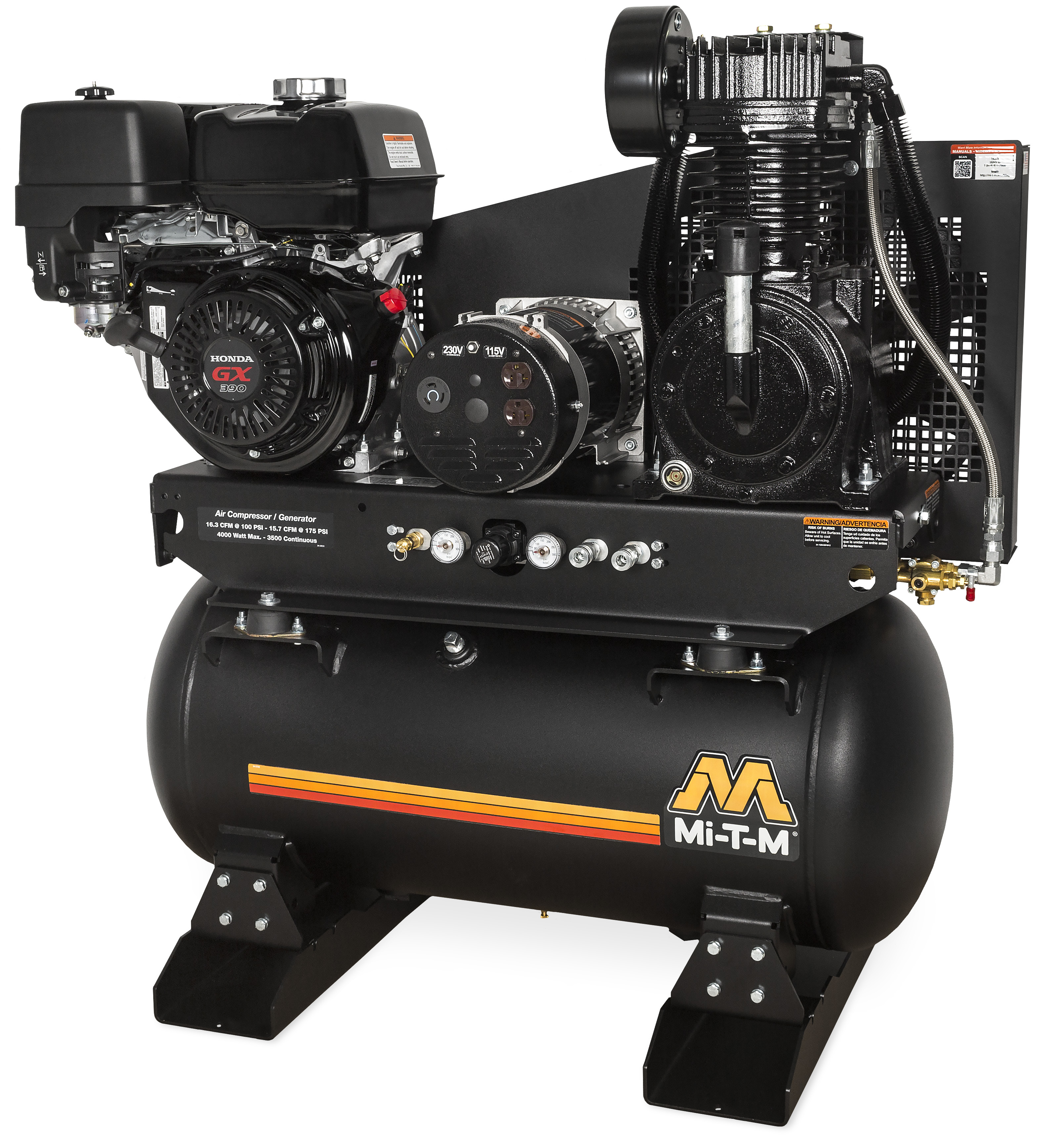

30-Gallon Two Stage Gasoline Combination - AG2-SH13-30M

AG2-SH13-30M

The 30-gallon two stage air compressor/generators tie two units into one for optimal power remodelers, contractors and DIYers appreciate.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Generator
Brushless alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings · (2) NEMA 5-20R 120V, 20A and (1) NEMA L6-20R 240V, 20A receptacles

Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard

Components
Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16 ½-inch fly wheel · Quality pilot valve unloader

Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult factory.
Equipped with 150-PSI maximum rated regulator.
49 state engine. Not for sale in California.

Specifications

  • CFM @ PSI

    16.4 @ 90

  • CFM @ PSI

    15.7 @ 175

  • Alternator Wattage: Max. Output

    4000 watts

  • Alternator Wattage: Cont. with Comp. On-Load

    2300 watts

  • Alternator Wattage: Cont. with Comp. Off-Load

    3500 watts

  • Displacement/ Engine

    389cc Honda GX390 OHV

Weights & Dimensions

  • Net Weight

    450.00 lbs.

  • Shipping Weight

    550.00 lbs.

  • Length

    40.00 in.

  • Width

    24.50 in.

  • Height

    45.00 in.

Options

  • IX-0001 Vibration Isolator Pads

    Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications

  • AX-0063 Lifting Hook

    For easier portability

  • AX-0068 Idle Down

    When activated it automatically throttles down engine to conserve fuel

Warranty Information
  • 2 Year Alternator
  • 2 Year Pump Exchange
  • 3 Year Honda Engine
