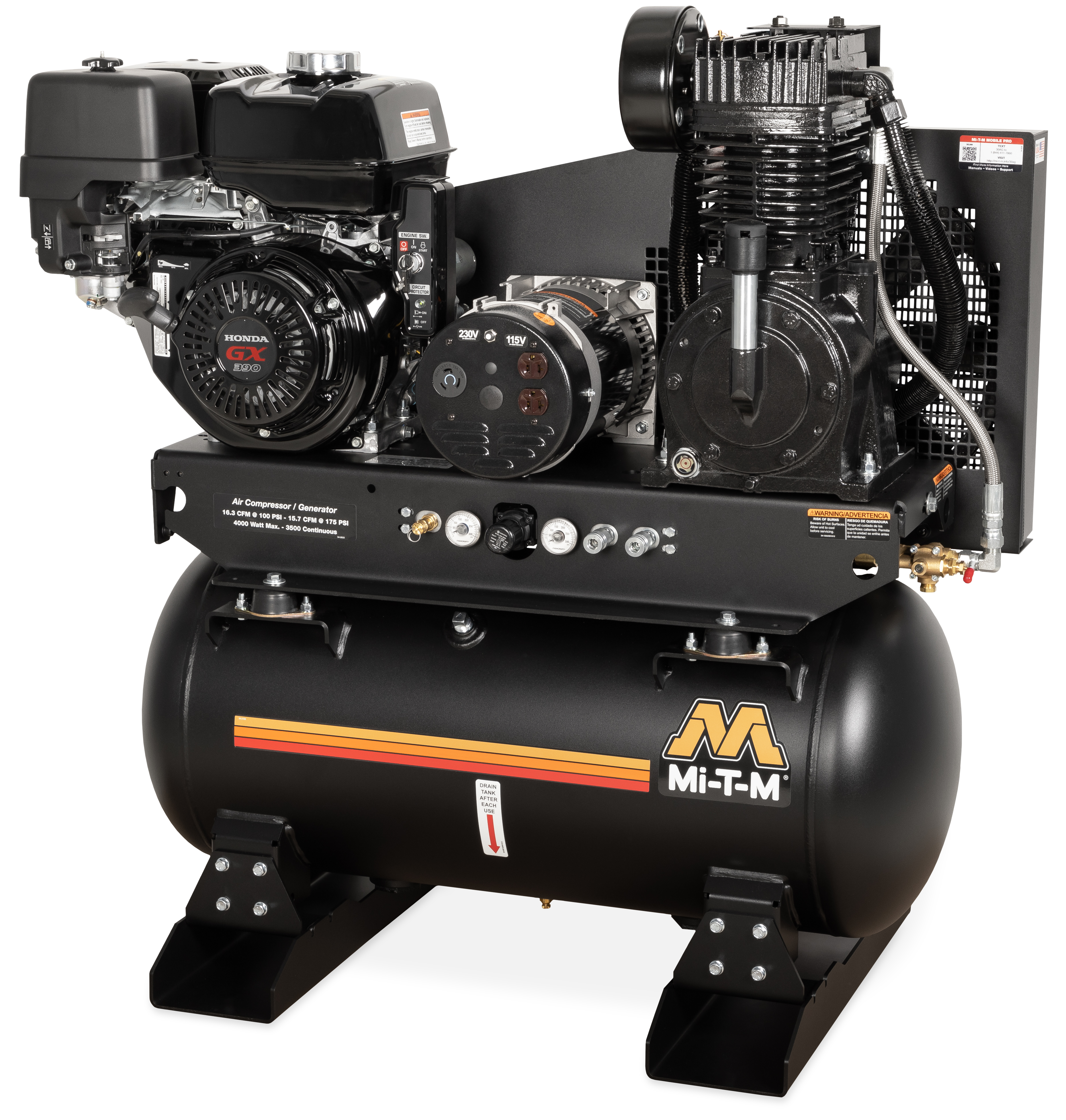

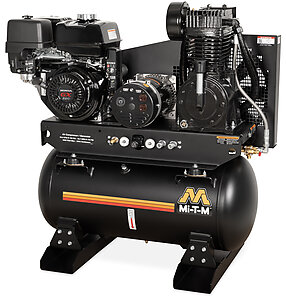

30-Gallon Two Stage Gasoline Combination - AG2-SH13-30ME

AG2-SH13-30ME

This air compressor generator combination is perfect for remodelers, contractors and professionals. With 15.7 CFM and up to 4000 watts, they deliver premium power every time.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Generator
Brushless alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings · (2) NEMA 5-20R 120V, 20A receptacles and (1) NEMA L6-20R 240V, 20A receptacles

Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · Removable base plate offers flexible installation

Components
Regulator and two gauges for tank and outlet pressure · Manual drain valve for proper maintenance · 16 ½-inch fly wheel · Quality pilot valve unloader

Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult factory.
49 state engine. Not for sale in California.
Equipped with 150-PSI maximum rated regulator.
Equipped with electric start – battery, box and cables not included.

Specifications

  • CFM @ PSI

    16.4 @ 90

  • CFM @ PSI

    15.7 @ 175

  • Alternator Wattage: Max. Output

    4000 watts

  • Alternator Wattage: Cont. with Comp. On-Load

    2300 watts

  • Alternator Wattage: Cont. with Comp. Off-Load

    3500 watts

  • Displacement/ Engine

    389cc Honda GX390 OHV

Weights & Dimensions

  • Net Weight

    457.00 lbs.

  • Shipping Weight

    557.00 lbs.

  • Length

    40.00 in.

  • Width

    24.50 in.

  • Height

    45.00 in.

Options - must be ordered with unit and cannot be added later.

  • IX-0001 Vibration Isolator Pads

    Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications

  • AX-0063 Lifting Hook

    For easier portability

  • AX-0068 Idle Down

    When activated it automatically throttles down engine to conserve fuel, start/stop control set at 145 to 175-PSI

  • AX-0070 Battery Tray, Box and 2-Foot of Cables

    Attaches to engine side of unit

  • AX-0016 Battery, Battery Tray, Box and 2-Foot Cables

    Attaches to engine side of unit

  • AX-0094 Remote Start/Choke, Sealed Cable

    7-foot wire extension for key switch

Warranty Information
  • 2 Year Alternator
  • 2 Year Pump Exchange
  • 3 Year Honda Engine
