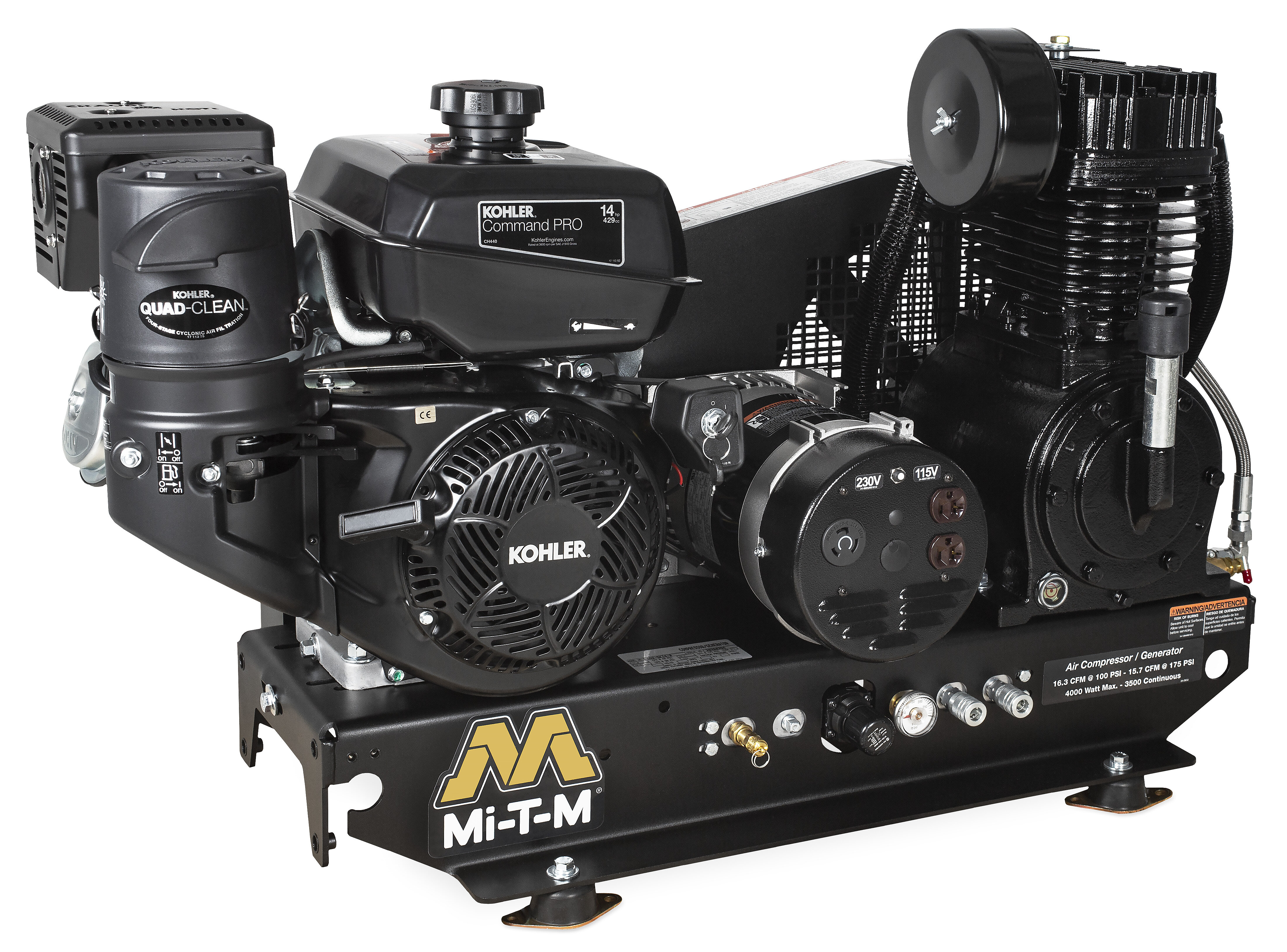

Base-Mount Two Stage Gasoline Combination - AG2-SK14-BE

AG2-SK14-BE

Combining two machines into one, this air compressor/generator combination unit is great for completing multiple jobs requiring both air power and electricity.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Generator
Brushless alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings · (2) NEMA 5-20R 120V, 20A and (1) NEMA L6-20R 240V, 20A receptacles

Frame
3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard

Components
Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 12 or 16 ½-inch fly wheel · Quality pilot valve unloader

Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult factory.
Equipped with 150-PSI maximum rated regulator.
Equipped with electric start – battery, box and cables not included.

Specifications

  • CFM @ PSI

    16.4 @ 90

  • CFM @ PSI

    15.7 @ 175

  • Alternator Wattage: Max. Output

    4000 watts

  • Alternator Wattage: Cont. with Comp. On-Load

    2300 watts

  • Alternator Wattage: Cont. with Comp. Off-Load

    3500 watts

  • Displacement/ Engine

    429cc Kohler CH440 OHV

Weights & Dimensions

  • Net Weight

    332.00 lbs.

  • Shipping Weight

    397.00 lbs.

  • Length

    47.00 in.

  • Width

    22.00 in.

  • Height

    28.00 in.

Options

  • AX-0063 Lifting Hook

    For easier portability

  • AX-0070 Battery Tray, Box and 2-Foot of Cables

    Attaches to engine side of unit

  • AX-0016 Battery, Battery Tray, Box and 2-Foot Cables

    Attaches to engine side of unit

Warranty Information
  • 2 Year Alternator
  • 2 Year Pump Exchange
  • 3 Year Kohler Engine
