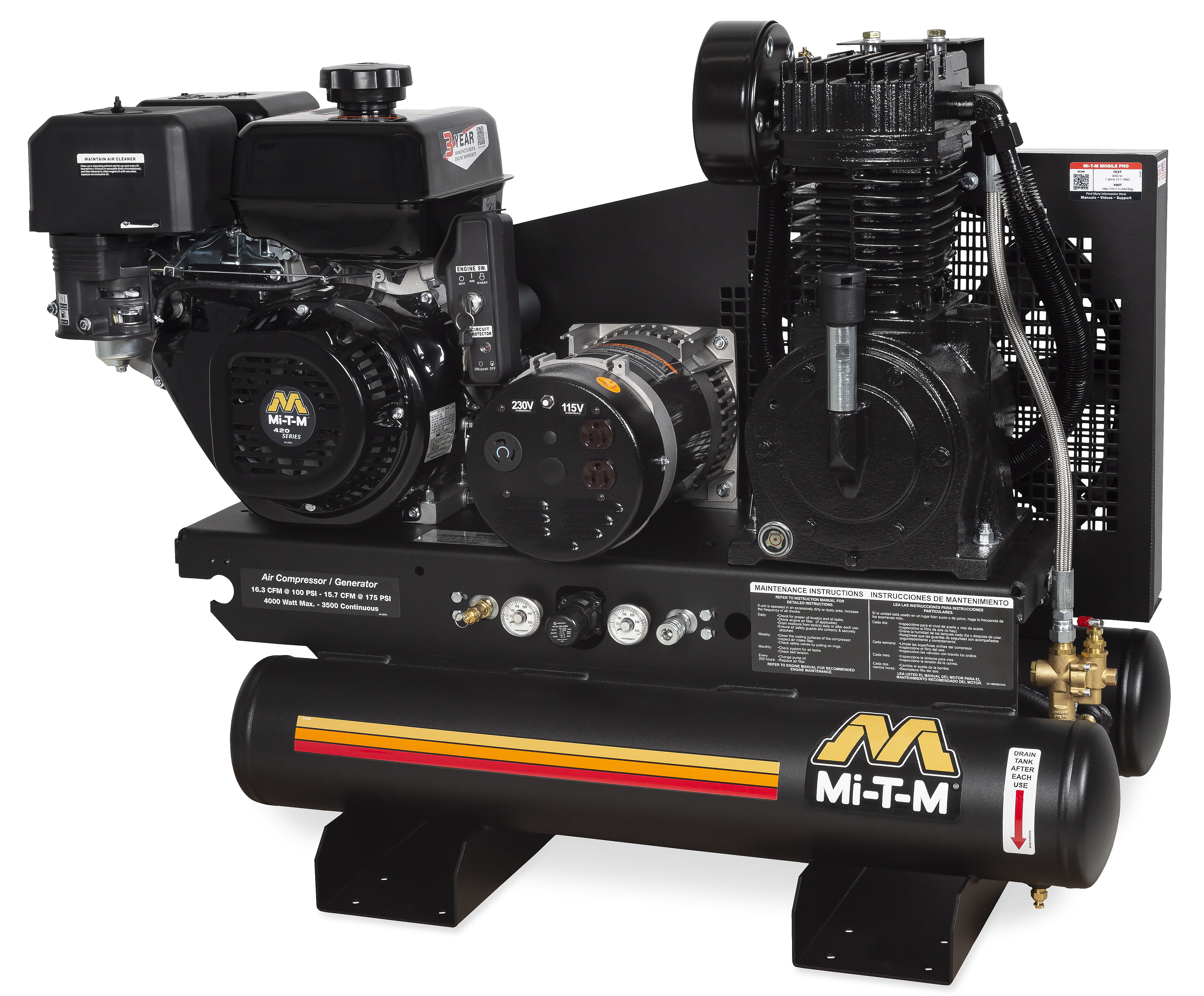

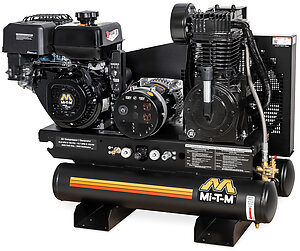

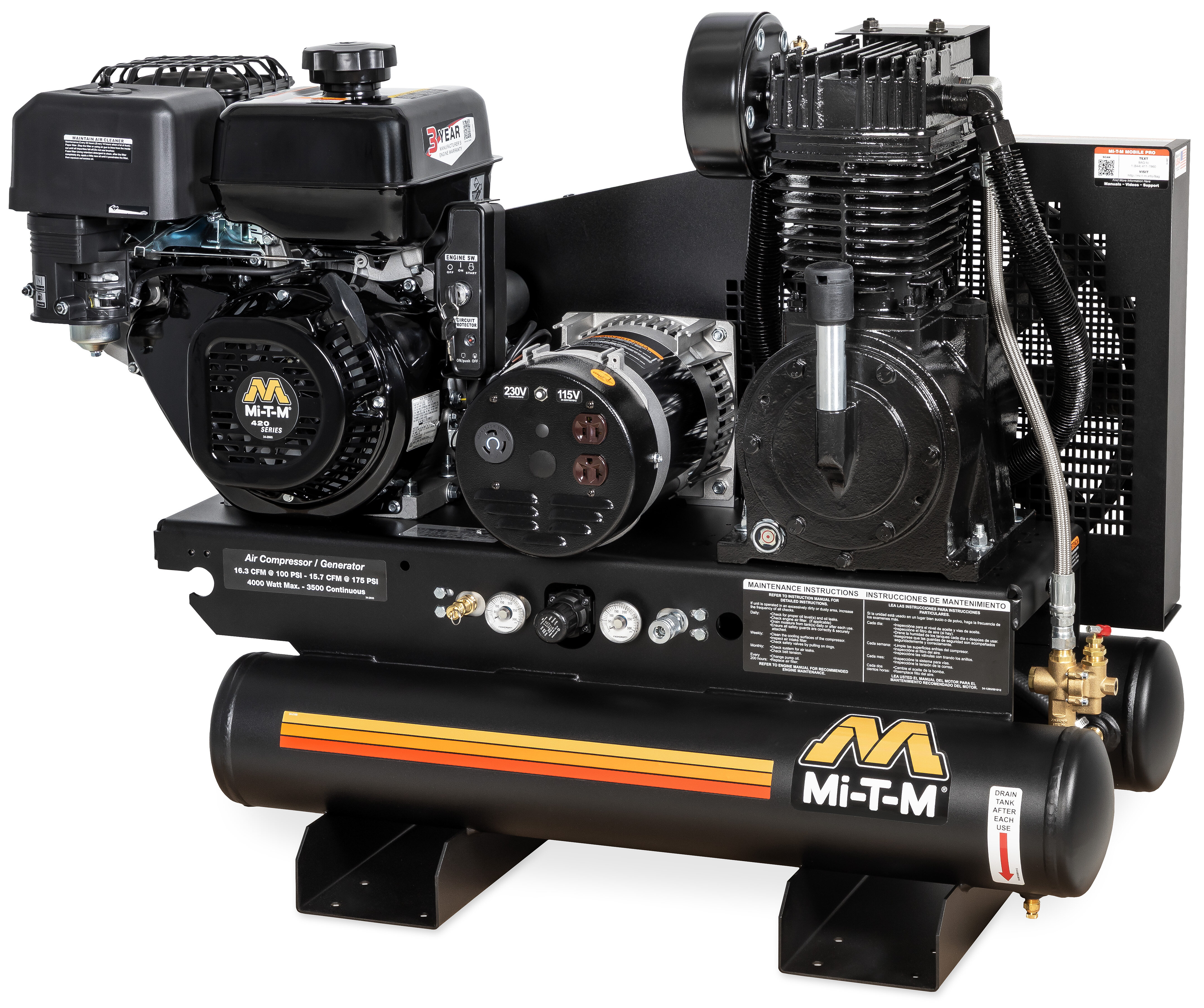

8-Gallon Two Stage Gasoline Combination - AG2-SM14-08M1E

Click for larger image

Limited Warranties:

2 Year Alternator
2 Year Pump Exchange
3 Year Mi-T-M Engine

Download Catalog »

View Product Sheet »

AG2-SM14-08M1E

Ideal for jobsites and work trucks, the air compressor/generator combination units go a long way to increasing productivity. Operate air tools and power electrical tools anywhere.

Compressor Pump: Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Generator: Brushless alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings · (2) NEMA 5-20R 120V, 20A receptacles and (1) NEMA L6-20R 240V, 20A receptacles

Frame: Powder coated twin tank receivers · 3/16-inch base plate to reduce vibration · 16-gauge powder coated two-piece belt guard

Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 12 or 16 ½-inch fly wheel · Quality pilot valve unloader

Equipped with 150-PSI maximum rated regulator.
Equipped with electric start - battery, box and cables not included.

Find a Dealer »

Specifications

CFM @ PSI

16.4 @ 90
CFM @ PSI

15.7 @ 175
Alternator Wattage: Max. Output

4000 watts
Alternator Wattage: Cont. with Comp. On-Load

2300 watts
Alternator Wattage: Cont. with Comp. Off-Load

3500 watts
Displacement/ Engine

420cc Mi-T-M OHV

Weights & Dimensions

Net Weight

365.00 lbs.
Shipping Weight

465.00 lbs.
Length

44.00 in.
Width

22.00 in.
Height

34.00 in.

Options

AX-0028 Lifting Hook

For easier portability
AX-0075 Idle Down

When activated it automatically throttles down engine to conserve fuel
AX-0070 Battery Tray, Box and 2-Foot of Cables

Attaches to engine side of unit
AX-0016 Battery, Battery Tray, Box and 2-Foot Cables

Attaches to engine side of unit
IX-0067 Remote Start/Choke

7-foot wire extension for key switch, sealed cable
