30-Gallon Two Stage Gasoline Combination - AG2-SM14-30M

Limited Warranties:
  • 1 Year Mi-T-M Engine
  • 2 Year Alternator
  • 2 Year Pump Exchange

Download Catalog »

AG2-SM14-30M

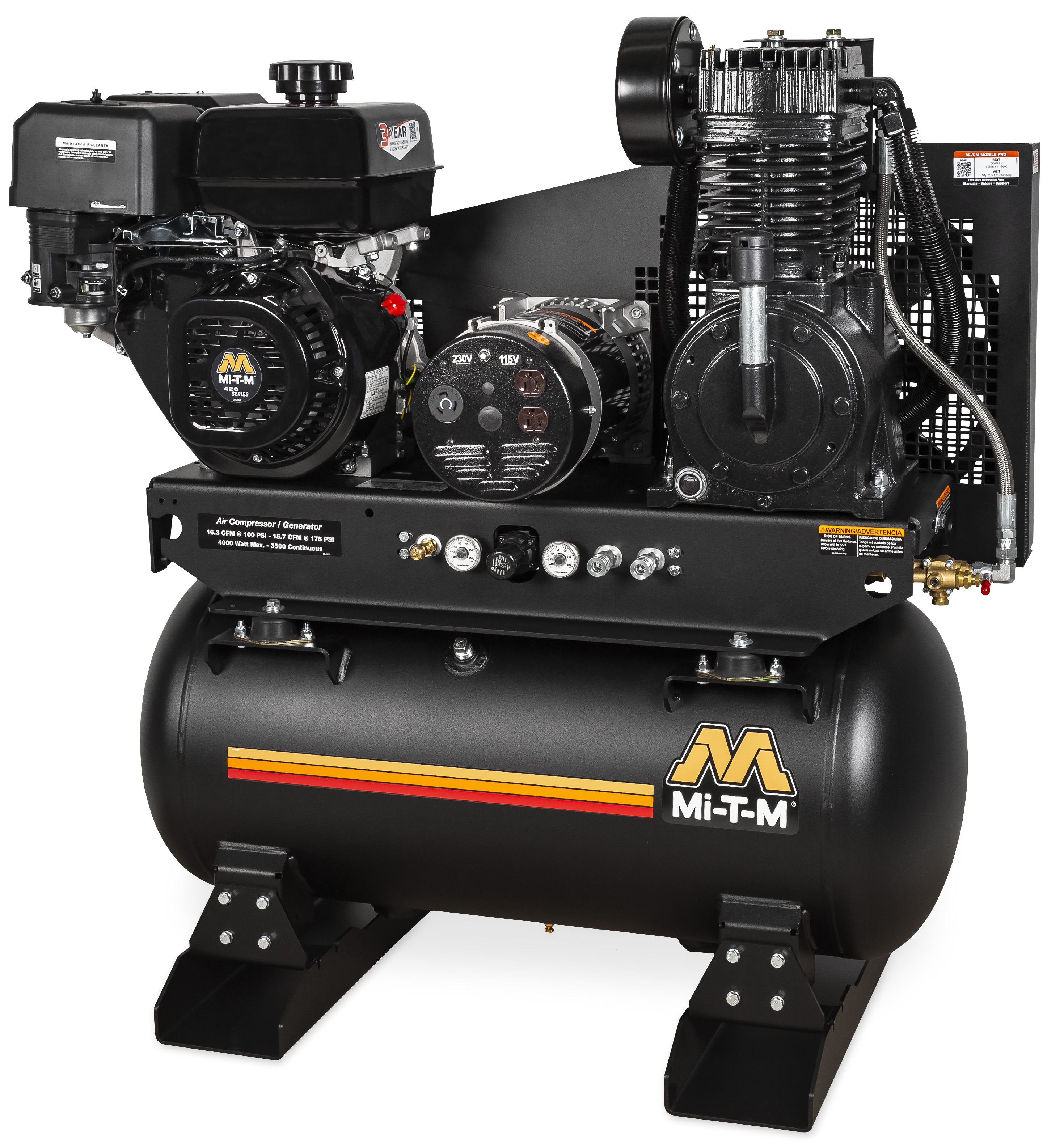

Featuring an industrial air compressor and generator combination, this machine is durable even in the toughest environments. Whether it's oil fields or farm fields, this versatile machine will deliver enough power to get the job done. Engineered to reduce the space necessary to fit in work and service trucks, this combination unit will meet the needs of mobile mechanics.

Compressor Pump: Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Generator: Brushless alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings · Comes standard with (2) 120V, 20A and (1) 240V, 20A receptacles

Frame: Powder coated ASME coded 30-gallon receiver tank · 3/16-inch base plate to reduce vibration · 16-gauge powder coated two-piece belt guard

Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16 ½-inch fly wheel · Quality pilot valve unloader

*Equipped with 150-PSI maximum rated regulator

View Product Sheet »

Find a Dealer »

Specifications

  • CFM @ 90 PSI

    16.4

  • CFM @ 175 PSI*

    15.7

  • Alternator Wattage: Max. Output

    4000 watts

  • Alternator Wattage: Cont. with Comp. On-Load

    2300 watts

  • Alternator Wattage: Cont. with Comp. Off-Load

    3500 watts

  • Receptacles

    (2) NEMA 5-20R; (1) NEMA L6-20R

  • Displacement/ Engine

    420cc Mi-T-M OHV

  • Compressor

    Two Stage, Cast Iron

Weights & Dimensions

  • Net Weight

    450.00 lbs.

  • Shipping Weight

    550.00 lbs.

  • Length

    40.00 in.

  • Width

    24.50 in.

  • Height

    45.00 in.

Options

  • IX-0001 Vibration Isolator Pads

    Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications

  • AX-0063 Lifting Hook

    For easier portability

  • AX-0073 Electric Start - Battery, Box and Cables Not Included

    For easy starting

  • AX-0074 Electric Start - Battery Box and Cables Included, Battery Not Included

    For easy starting. **Note: Battery box cannot be mounted at the factory but can be shipped with the unit for custom mounting. Consult factory for more information**

  • AX-0075 Idle Down - Includes Electric Start - Battery Not Included

    When activated, it automatically throttles down engine to conserve fuel

  • AX-0070 Battery Tray, Box and 2-Foot of Cables

    Attaches to engine side of unit
