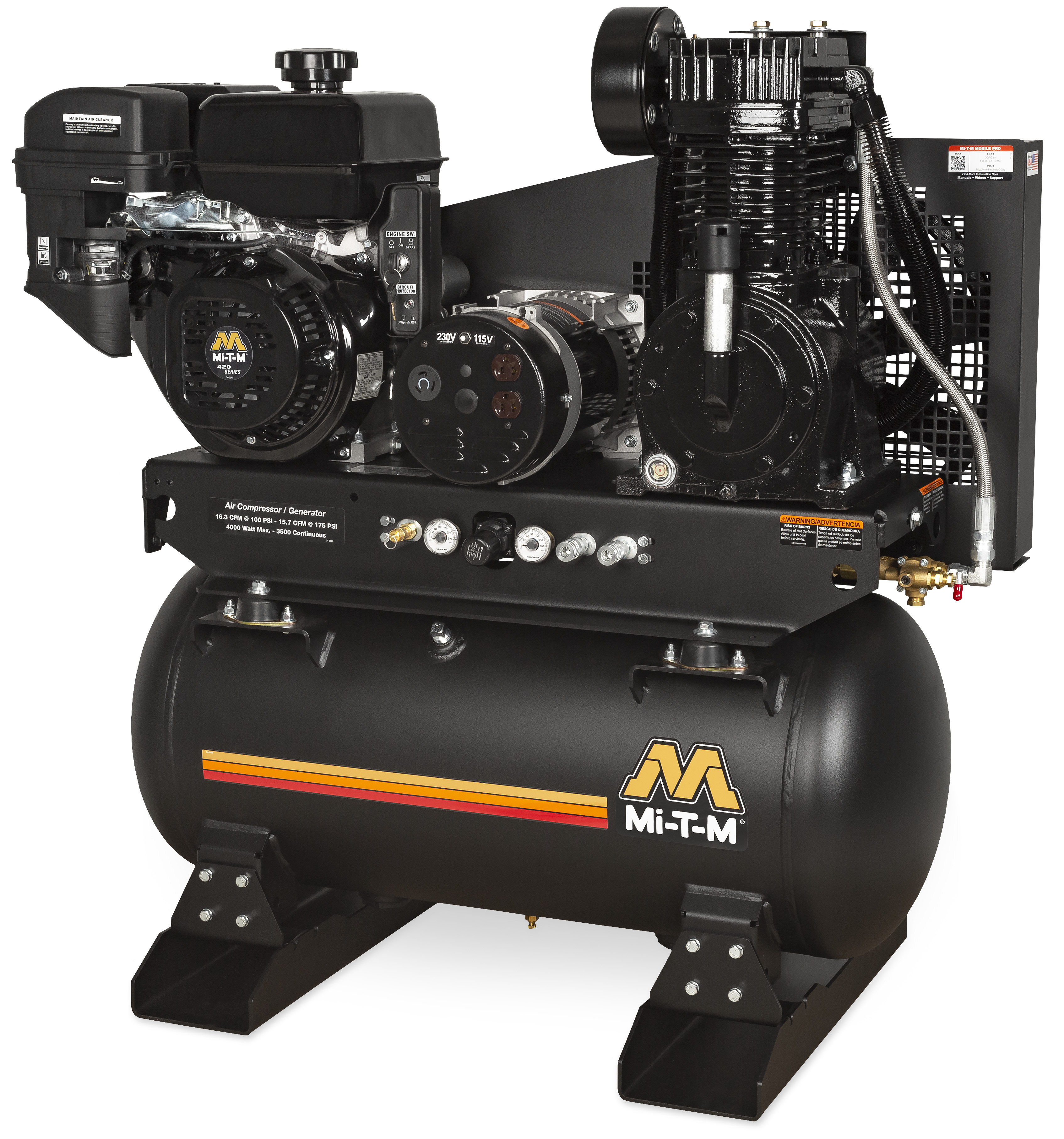

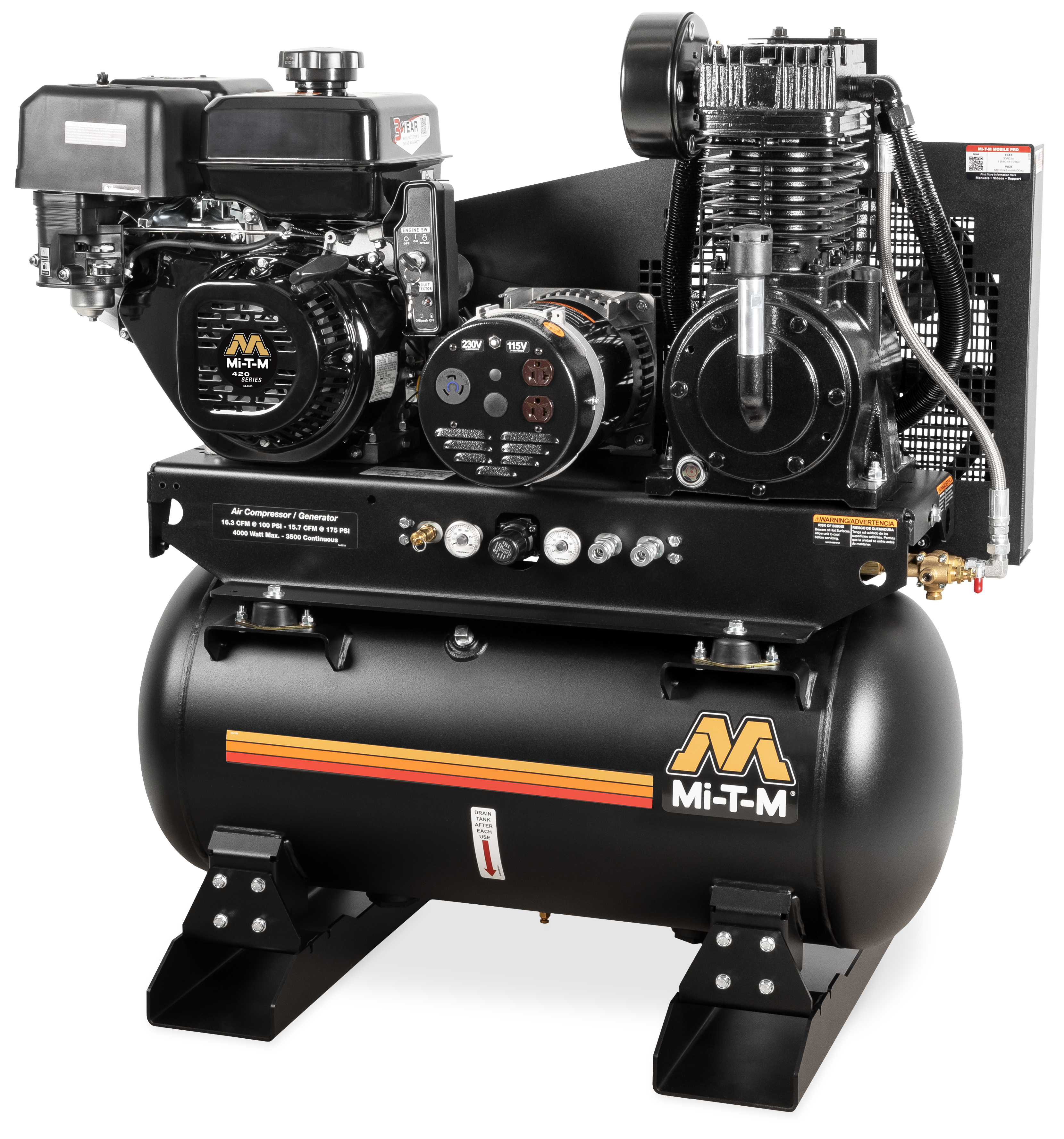

30-Gallon Two Stage Gasoline Combination - AG2-SM14-30ME


The 30-gallon two stage air compressor/generators tie two units into one for optimal power remodelers, contractors and DIYers appreciate.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Brushless alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings · (2) NEMA 5-20R 120V, 20A and (1) NEMA L6-20R 240V, 20A receptacles

Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard

Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16 ½-inch fly wheel · Quality pilot valve unloader

Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult factory.
Equipped with 150-PSI maximum rated regulator.
Equipped with electric start – battery, box and cables not included.


  • CFM @ PSI

    16.4 @ 90

  • CFM @ PSI

    15.7 @ 175

  • Alternator Wattage: Max. Output

    4000 watts

  • Alternator Wattage: Cont. with Comp. On-Load

    2300 watts

  • Alternator Wattage: Cont. with Comp. Off-Load

    3500 watts

  • Displacement/ Engine

    420cc Mi-T-M OHV

Weights & Dimensions

  • Net Weight

    457.00 lbs.

  • Shipping Weight

    557.00 lbs.

  • Length

    40.00 in.

  • Width

    24.50 in.

  • Height

    45.00 in.


  • IX-0001 Vibration Isolator Pads

    Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications

  • AX-0063 Lifting Hook

    For easier portability

  • AX-0075 Idle Down

    When activated it automatically throttles down engine to conserve fuel

  • AX-0070 Battery Tray, Box and 2-Foot of Cables

    Attaches to engine side of unit

  • AX-0016 Battery, Battery Tray, Box and 2-Foot Cables

    Attaches to engine side of unit

  • IX-0067 Remote Start/Choke

    7-foot wire extension for key switch, sealed cable

Warranty Information
  • 2 Year Alternator
  • 2 Year Pump Exchange
  • 3 Year Mi-T-M Engine
