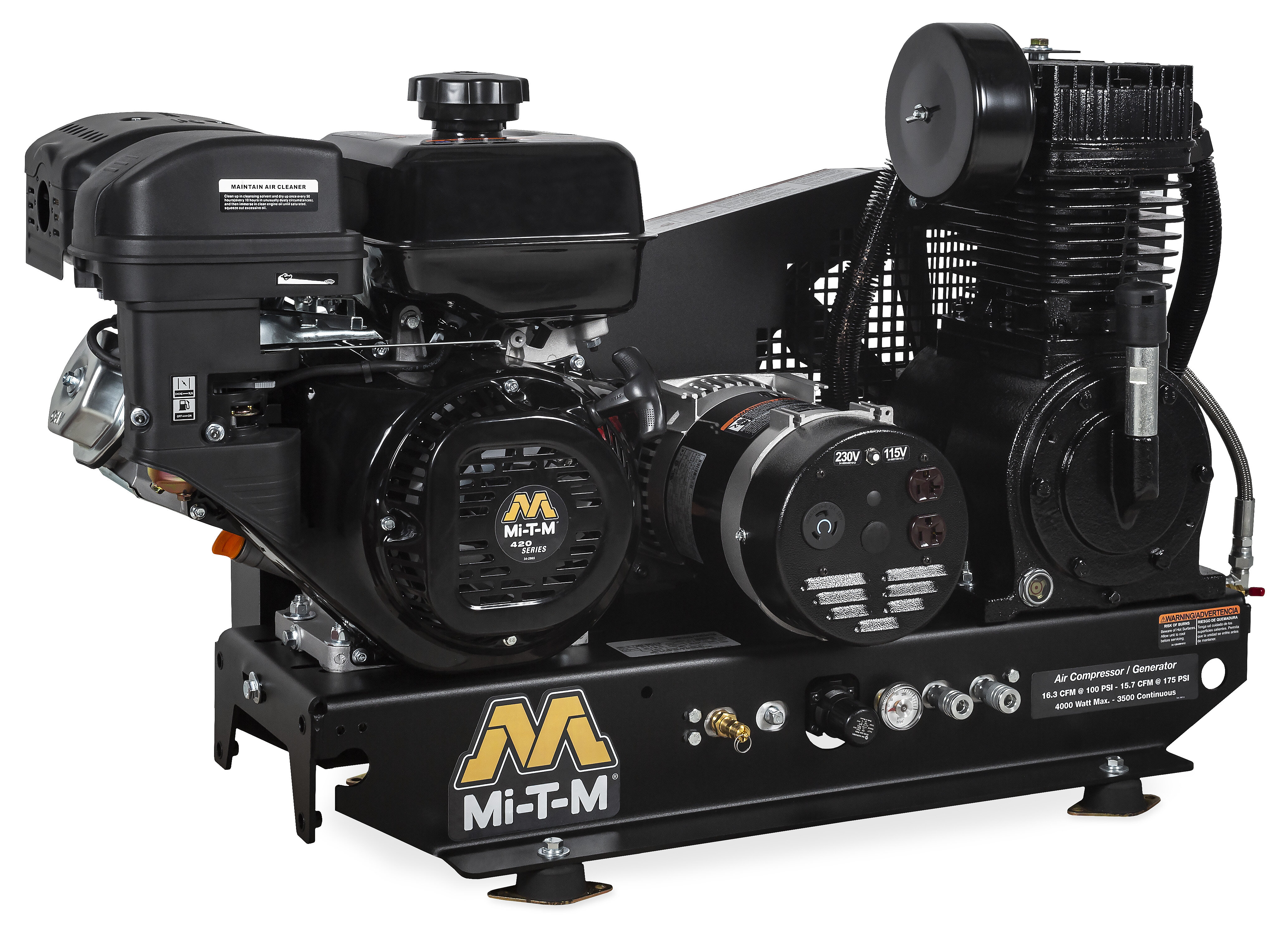

Base-Mount Two Stage Gasoline Combination - AG2-SM14-B

Limited Warranties:
  • 1 Year Mi-T-M Engine
  • 2 Year Alternator
  • 2 Year Pump Exchange

Download Catalog »

AG2-SM14-B

Increase your productivity by merging two vital pieces of equipment into one versatile machine. Ideal for every industrial application requiring both air and electrical power, you’ll save space and save money with one machine. Available in stationary, base-mount or portable. Choose the model that best fits your needs.

Compressor Pump: Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Generator: Brushless alternator · Total harmonic distortion (THD) less than 5% · 100% copper windings · Comes standard with (2) 120V, 20A and (1) 240V, 20A receptacles

Frame: 3/16-inch base plate to reduce vibration · 16-gauge powder coated two-piece belt guard

Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 12 or 16 ½-inch fly wheel · Quality pilot valve unloader

*Equipped with 150-PSI maximum rated regulator

View Product Sheet »

Find a Dealer »

Specifications

  • CFM @ 90 PSI

    16.4

  • CFM @ 175 PSI*

    15.7

  • Alternator Wattage: Max. Output

    4000 watts

  • Alternator Wattage: Cont. with Comp. On-Load

    2300 watts

  • Alternator Wattage: Cont. with Comp. Off-Load

    3500 watts

  • Receptacles

    (2) NEMA 5-20R; (1) NEMA L6-20R

  • Displacement/ Engine

    420cc Mi-T-M OHV

  • Compressor

    Two Stage

Weights & Dimensions

  • Net Weight

    325.00 lbs.

  • Shipping Weight

    390.00 lbs.

  • Length

    47.00 in.

  • Width

    22.00 in.

  • Height

    28.00 in.

Options

  • AX-0063 Lifting Hook

    For easier portability

  • AX-0073 Electric Start - Battery, Box and Cables Not Included

    For easy starting

  • AX-0074 Electric Start - Battery Box and Cables Included, Battery Not Included

    For easy starting. **Note: Battery box cannot be mounted at the factory but can be shipped with the unit for custom mounting. Consult factory for more information**

  • AX-0075 Idle Down - Includes Electric Start - Battery Not Included

    When activated, it automatically throttles down engine to conserve fuel
