Two Stage Gasoline 20-Gallon - AGW-SH22-20M

Limited Warranties:
  • 2 Year Alternator
  • 2 Year Pump Exchange
  • 3 Year Honda Engine

Download Catalog »

View Product Sheet »

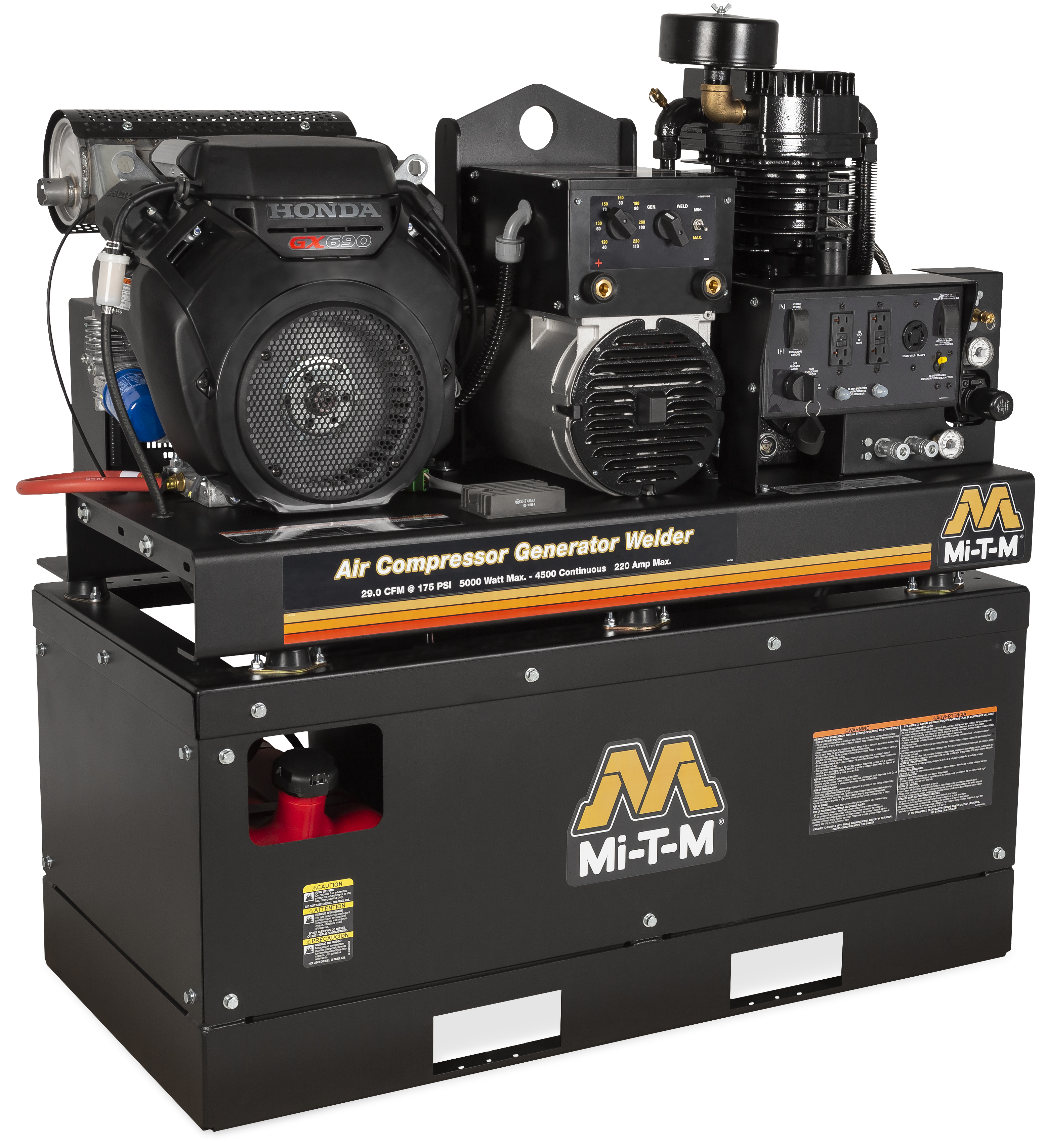

AGW-SH22-20M

Maximum performance in a single machine, the industrial air compressor, generator, welder combination can tackle any job in the shop or in the field.

Compressor Pump: Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Generator: Brush-type 2 pole 120V/240V alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings

Welder: Amperage selection switch, 170A or 220A maximum

Frame: Powder coated ASME receiver tank · 14-gauge four-piece belt guard

Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16.5-inch fly wheel

AGW Series Operation
Generator Mode: AC current only · Selector switch set to idle down · Switch is set to full throttle
Welder Mode: DC current only · Engine must be running full throttle · Selector switch must be set to full throttle

All models sold in California are required to have the AX-0080 CARB compliant fuel tank.
Equipped with 150-PSI maximum rated regulator.

Find a Dealer »

Specifications

  • Displacement/ Engine

    688cc Honda GX690 OHV with Electric Start - Battery Cables Included; Battery Not Included

  • Rated Speed

    3600 RPM

  • CFM @ 90 PSI

    30.5

  • CFM @ 175 PSI*

    29.0

  • Tank Size

    20 gallon

  • Max. AC Output

    5000 watts

  • Rated AC Output

    4500 watts

  • Alternator Wattage: Cont. On-Load @ 90 PSI

    4500 watts

  • Alternator Wattage: Cont. On-Load @ 175 PSI

    4500 watts

  • Frequency/Voltage

    60Hz/120V/240V

  • Max. Amps (120V/240V)

    41.5/20.8

  • Cont. Amps (120V/240V)

    37.5/18.8

  • Receptacles

    (2) 120V, 20A GFCI Duplex; (1) 120V/240V, 20A Twist Lock

  • Duty Cycle (10 Min. Run Time)

    220A @ 40%, 190A @ 60%, 150A @ 100%

  • DC Voltage

    50-220A Working Range

  • Fuel Tank

    10.0 gallon

Weights & Dimensions

  • Net Weight

    803.00 lbs.

  • Shipping Weight

    870.00 lbs.

  • Length

    47.00 in.

  • Width

    24.00 in.

  • Height

    50.00 in.

Options

  • IX-0001 Vibration Isolator Pads

    Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications

  • AX-0080 California Compliant Fuel Tank

    Replaces the EPA plastic fuel tank with a CARB approved painted steel tank; required for California models
