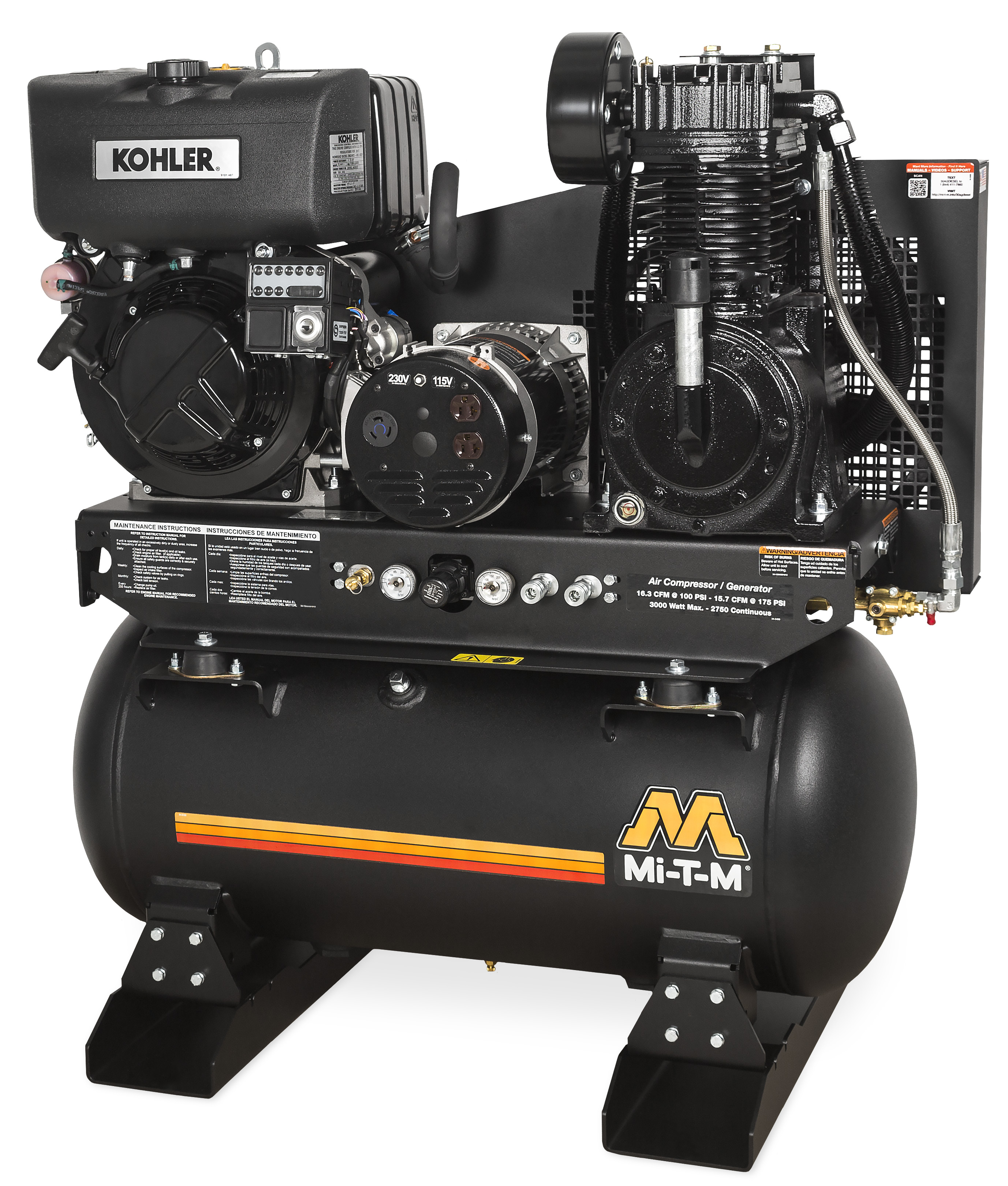

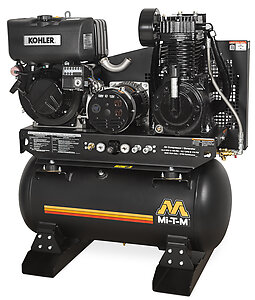

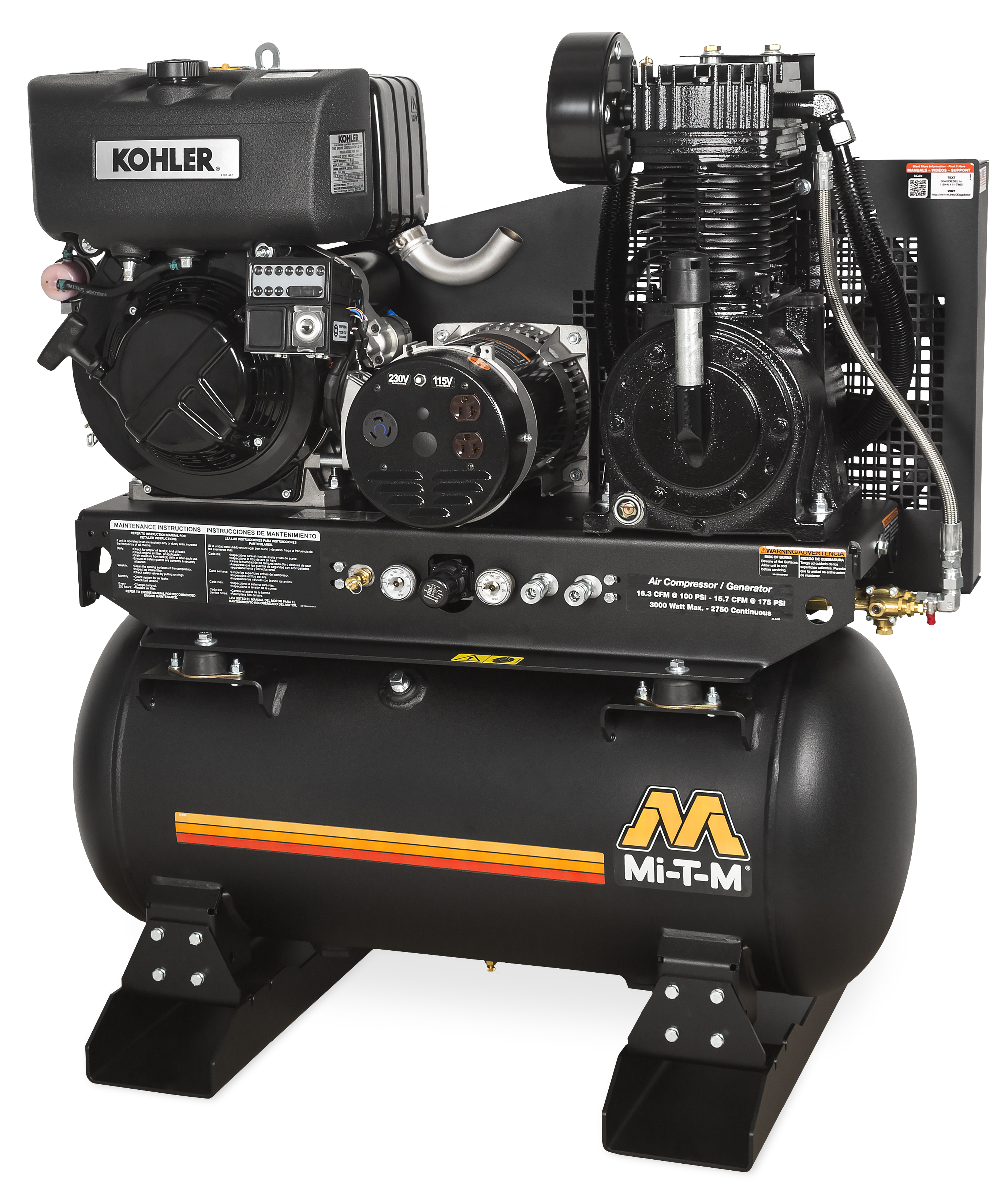

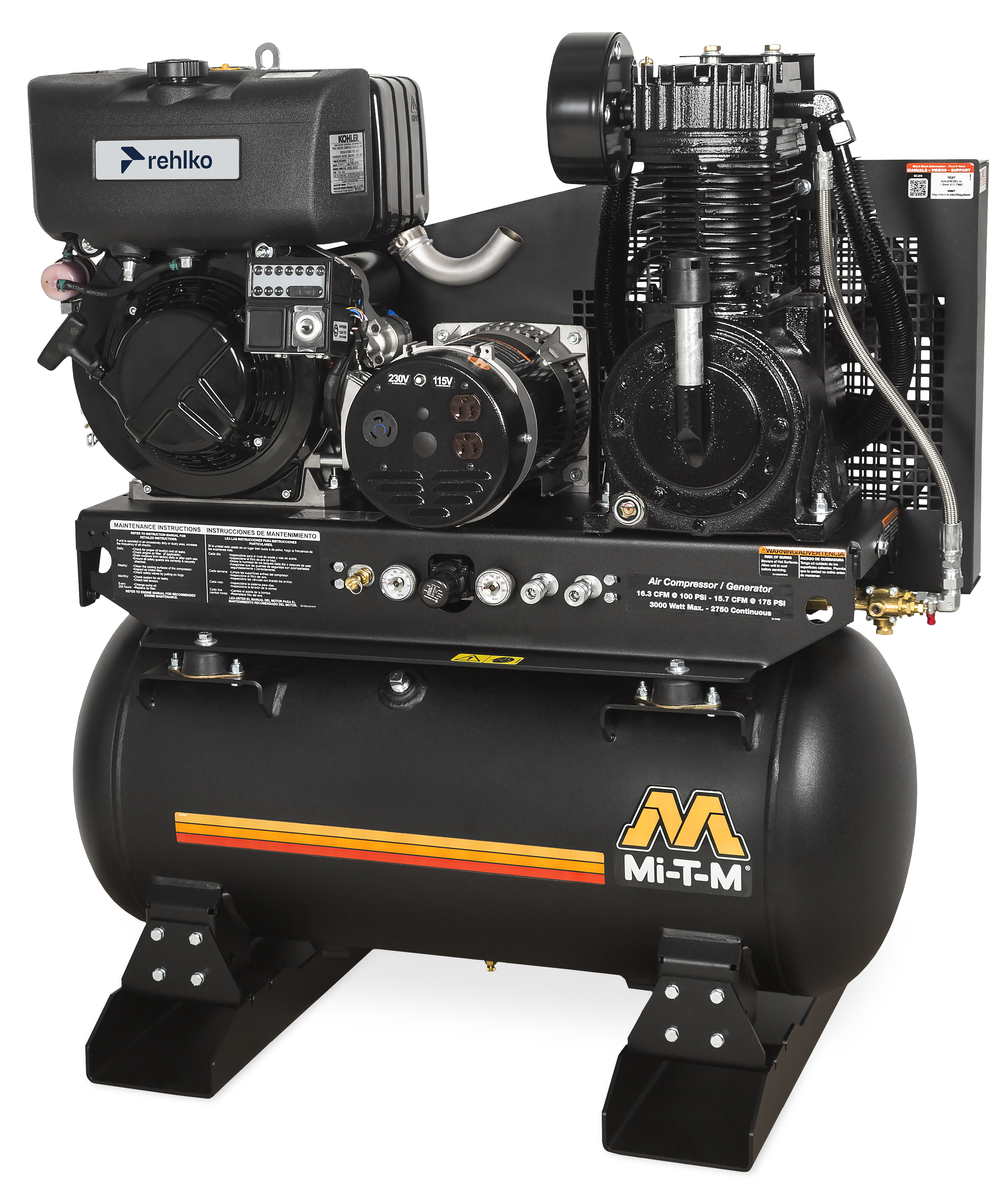

30-Gallon Two Stage Diesel Combination - AG2-SKD9-30M

Get Started

AG2-SKD9-30M

This diesel combination unit has the convenience of two machines in one, providing power for most any industrial and contractor need.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Generator
Brushless alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings · (2) NEMA 5-20R 120V, 20A and (1) NEMA L6-20R 240V, 20A receptacles

Engine
Electric start – battery, box and cables not included · Glow plug equipped for easy starting in cold temperatures

Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard

Components
Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16 ½-inch fly wheel · Quality pilot valve unloader

Equipped with 150-PSI maximum rated regulator.

Specifications

CFM @ PSI

16.4 @ 90
CFM @ PSI

15.7 @ 175
Alternator Wattage: Max. Output

3000 watts
Alternator Wattage: Cont. with Comp. On-Load

2300 watts
Alternator Wattage: Cont. with Comp. Off-Load

3000 watts
Horsepower/Engine

9.1 HP Kohler KD440 OHV

Weights & Dimensions

Net Weight

489.00 lbs.
Shipping Weight

554.00 lbs.
Length

41.00 in.
Width

23.00 in.
Height

47.00 in.

Options

IX-0001 Vibration Isolator Pads

Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications
AX-0070 Battery Tray, Box and 2-Foot of Cables

Attaches to engine side of unit
AX-0016 Battery, Battery Tray, Box and 2-Foot Cables

Attaches to engine side of unit
