ACS Series 5.0 HP Simplex Vertical - 80-Gallon
80-Gallon
ACS Series – 5.0 HP Simplex Vertical
These powerful 80-gallon air compressors are designed with productivity and efficiency in mind. Equip workshops, service bays and more.
Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil lever sight indicator
Motor
Industrial low RPM motor · Magnetic start for thermal overload protection
Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · Removable base plate offers flexible installation
Components
ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Intake filter/silencer · Tank shut-off valve · Start/stop control set at 145 to 175-PSI
Models Available
ACS-23105-80V 230V, 1Ø, 23.0A 666 lb. ship wt./559 lb. net wt.
ACS-20305-80V 200V, 3Ø, 16.1A 665 lb. ship wt./558 lb. net wt.
ACS-23305-80V 230V, 3Ø, 13.8A 665 lb. ship wt./558 lb. net wt.
ACS-46305-80V 460V, 3Ø, 6.9A 665 lb. ship wt./558 lb. net wt.
Note: All vertical models are shipped in two separate pieces. Assembly is required.

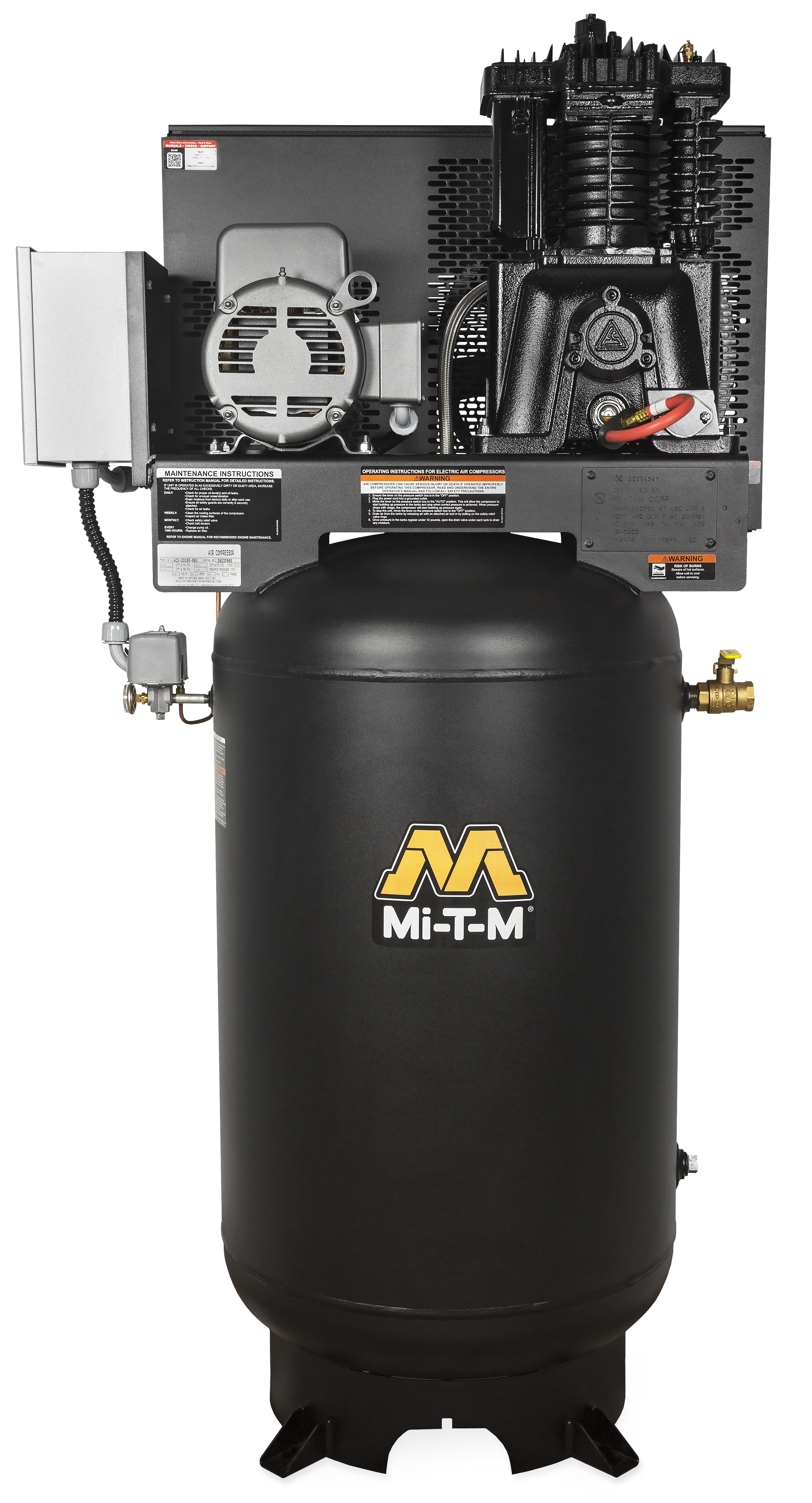

Photo shown with pre-assembled option, IX-0070
Specifications
-
CFM @ PSI
18.0 @ 175
-
Pump RPM
860
-
Tank Size
80-gallon
-
Bolt Down (LxW)
15.63 x 15.63 in.
Weights & Dimensions
-
Net Weight
0.00 lbs.
-
Shipping Weight
0.00 lbs.
-
Length
38.50 in.
-
Width
25.00 in.
-
Height
73.00 in.
Options - must be ordered with unit and cannot be added later.
-
IX-0001 Vibration Isolator Pads
Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications
-
IX-0006 Electric Tank Drain
Automatically drains liquid from compressor tank
-
IX-0051 Pneumatic Tank Drain
Automatically drains liquid from compressor tank
-
IX-0061 Low Oil Monitor
Low oil sensor does not allow unit to start when oil levels fall below an adequate level
-
IX-0062 Low Oil Monitor
Low oil sensor does not allow unit to start when oil levels fall below an adequate level
-
IX-0063 Low Oil Monitor
Low oil sensor does not allow unit to start when oil levels fall below an adequate level
-
IX-0068 Pneumatic Tank Drain
Automatically drains liquid from compressor tank; you must also have IX-0069 after cooler option
-
IX-0069 After Cooler
Removes up to 65% of the moisture from discharged compressed air and drops the temperature within 10° of ambient
-
IX-0070 Unit Shipped Pre-Assembled
Compressor is shipped as a complete unit, no assembly required
Videos
Links / Blog Articles
Warranty Information
- 1 Year Electric Motor
- 2 Year Pump Exchange
