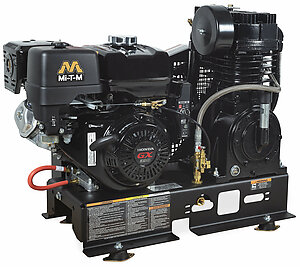

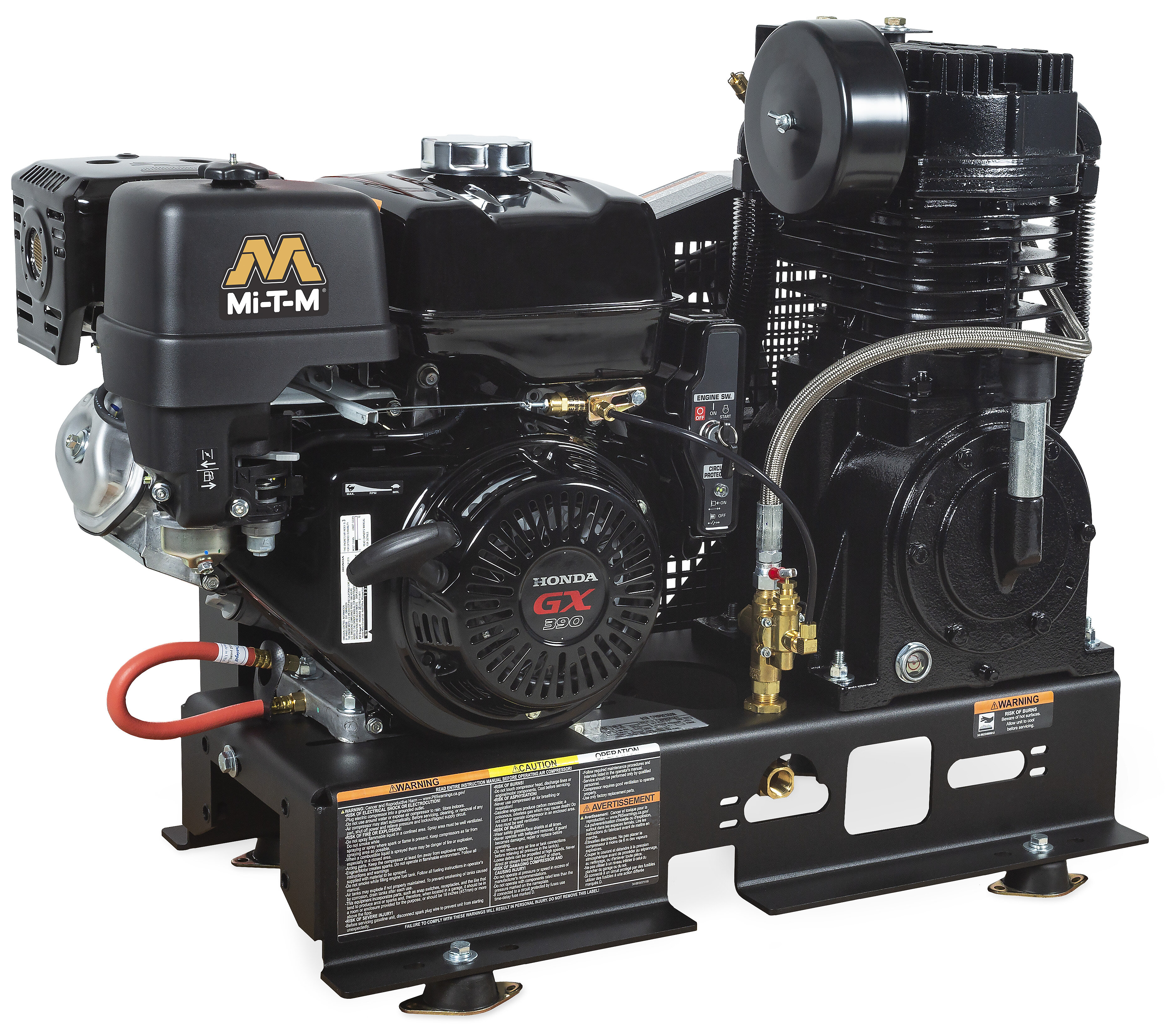

ABS-13H-B

Designed with the ability to mount on trailers or service trucks, this air compressor delivers consistent power.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Engine
Electric start – battery and cables not included

Frame
3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · Removable base plate offers flexible installation

Components
Regulator and two gauges for tank and outlet pressure · ASME safety valves · 16 1/2-inch fly wheel · Tank drain valve · 1/2-inch port · Start/stop control set at 145 to 175-PSI

Equipped with 150-PSI maximum rated regulator.
Receiver tank required.

Specifications

  • CFM @ PSI

    29.0 @ 175

  • Displacement/ Engine

    389cc Honda GX390 OHV

  • Tank Size

    Base-Mount

  • Engine Idle Control

    Pneumatic

Weights & Dimensions

  • Net Weight

    215.00 lbs.

  • Shipping Weight

    279.00 lbs.

  • Length

    36.50 in.

  • Width

    19.00 in.

  • Height

    28.00 in.

Options - must be ordered with unit and cannot be added later.

  • AX-0090 Remote Start/Choke, Sealed Cable

    7-foot wire extension for key switch

Warranty Information
  • 2 Year Pump Exchange
  • 3 Year Honda Engine
