80-Gallon Two Stage Gasoline - ABS-14M-80H

Limited Warranties:
  • 1 Year Mi-T-M Engine
  • 2 Year Pump Exchange

Download Catalog »

ABS-14M-80H

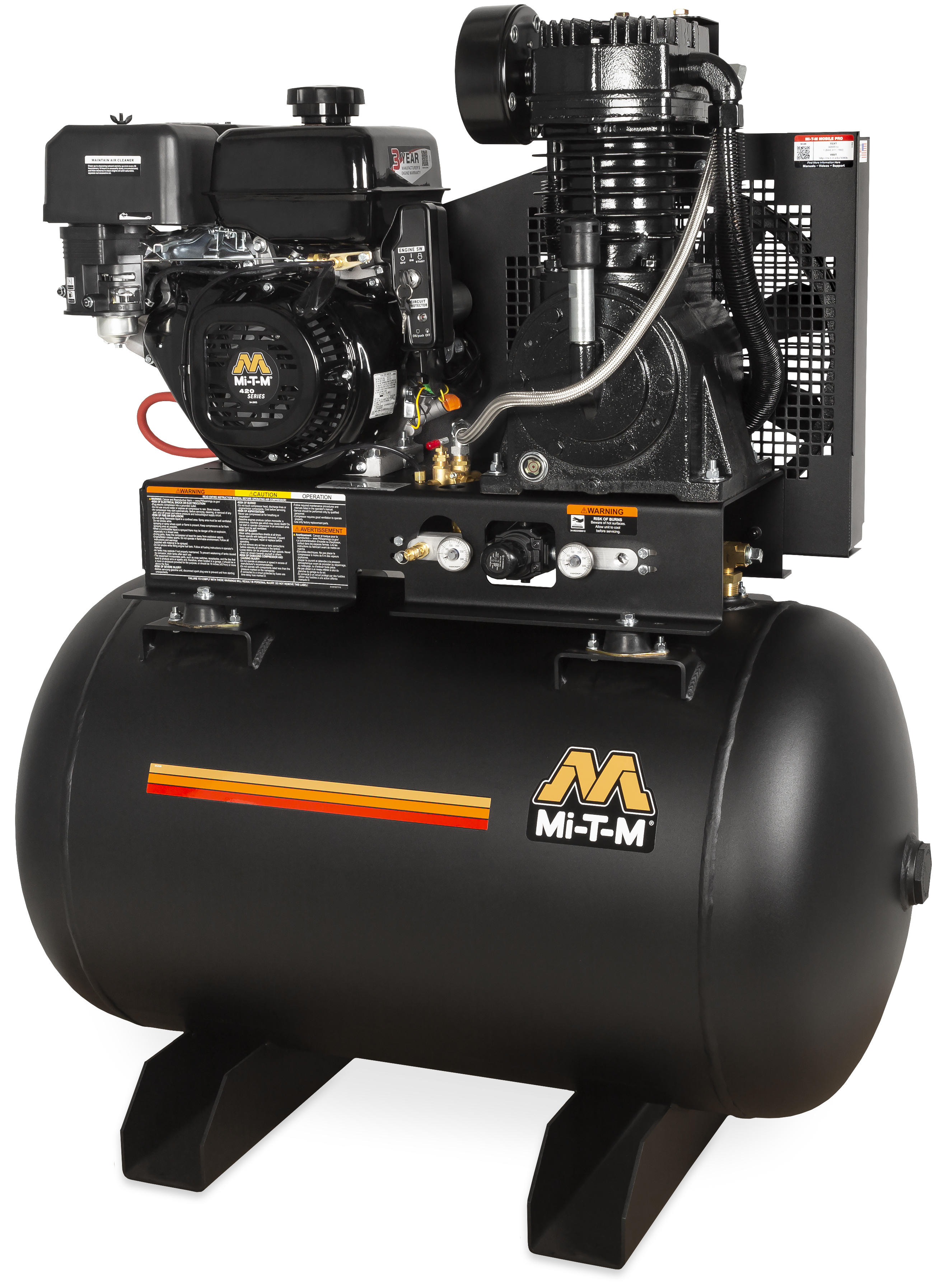

This 80-gallon air compressor is designed to provide high capacity air flow required for most commercial, industrial and automotive industries. Mount one in a service truck and take it to the most demanding jobsite.

Compressor Pump: Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Engine: Electric start - battery and cables not included

Frame: Powder coated ASME coded 80-gallon receiver tank · 3/16-inch base plate to reduce vibration · 16-gauge powder coated two-piece belt guard · Removable base plate offers flexible installation

Components: Regulator and two gauges for tank and outlet pressure · ASME safety valves · 16 1/2-inch fly wheel · Tank drain valve

*Equipped with 150-PSI maximum rated regulator

View Product Sheet »

Find a Dealer »

Specifications

  • CFM @ 175 PSI*

    29.0

  • Displacement/ Engine

    420cc Mi-T-M OHV

  • Compressor

    Two Stage, Cast Iron

  • Tank Size

    80 gallon

  • Engine Idle Control

    Pneumatic

Weights & Dimensions

  • Net Weight

    496.00 lbs.

  • Shipping Weight

    560.00 lbs.

  • Length

    52.00 in.

  • Width

    26.50 in.

  • Height

    53.00 in.

Options

  • AX-0077 Battery Box and Tray

    Attaches to engine side of unit

  • IX-0001 Vibration Isolator Pads

    Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications
