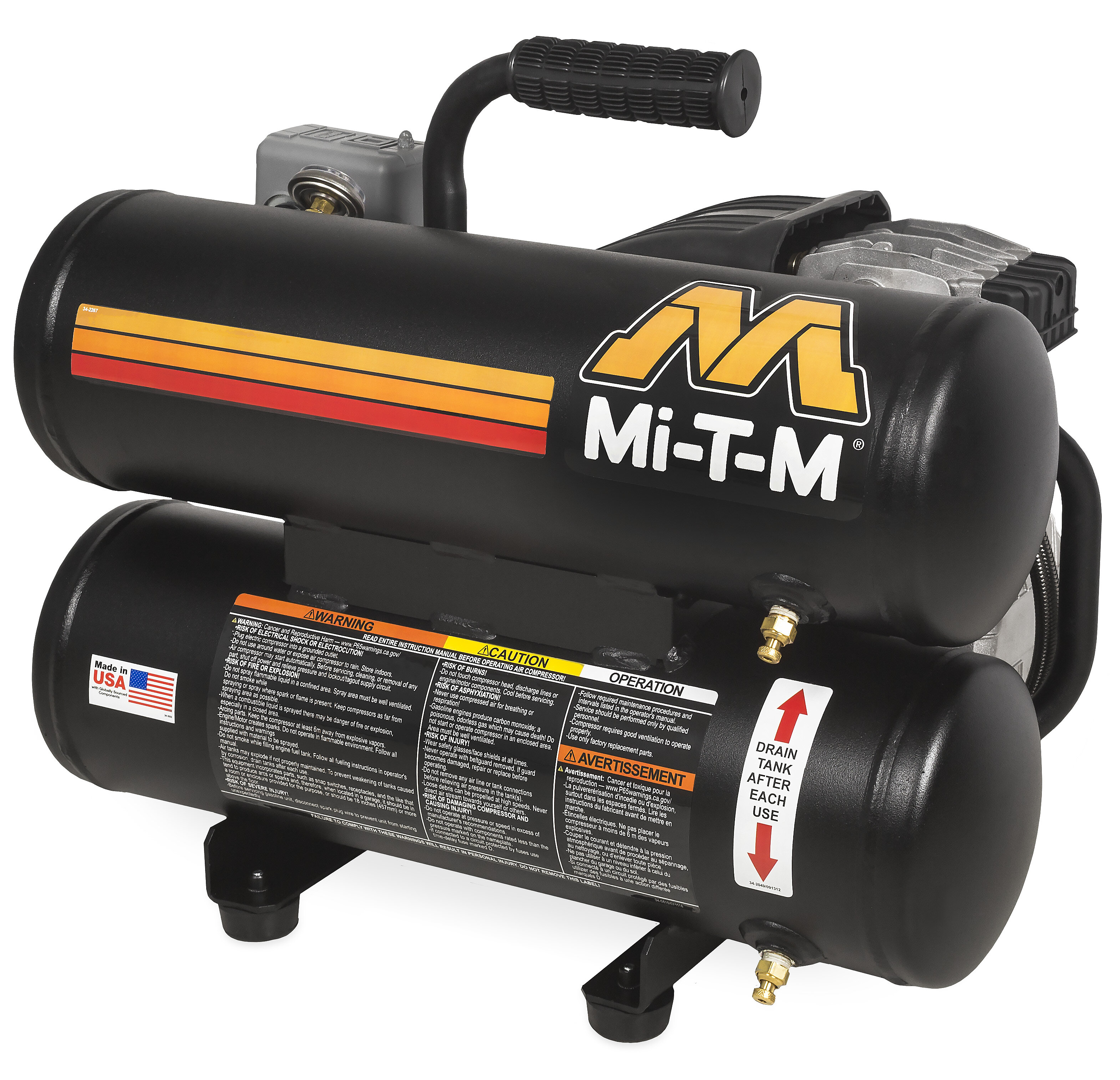

5-Gallon Single Stage Electric - AM1-HE02-05M

air compressors
expand-icon

Resources

Find A Local Dealer

Get Started

AM1-HE02-05M

The compact 5-gallon model is portable yet powerful and is perfect for a variety of projects.

Compressor Pump
Cast iron cylinder · Splash lubricated aluminum crankcase · Stainless-steel braided discharge hose · Inlet air filter

Motor
Thermal overload motor protection · 8-foot power cord

Frame
Powder coated twin tank assembly · Protective pump/motor housing

Components
Regulator and two gauges for tank and outlet pressure · Drain and pressure relief valves · Industrial interchange quick connect fittings · Start/stop control set at 95 to 125-PSI

Specifications

  • CFM @ PSI

    4.2 @ 90

  • Horsepower/Motor

    2.0 HP, 120V, 15.0A

  • Plug Type

    NEMA 5-15P

Weights & Dimensions

  • Net Weight

    61.00 lbs.

  • Shipping Weight

    70.00 lbs.

  • Length

    20.50 in.

  • Width

    15.50 in.

  • Height

    17.50 in.

Options - must be ordered with unit and cannot be added later.

  • No options
Warranty Information
  • 1 Year Compressor Pump
  • 1 Year Electric Motor
Additional Info
