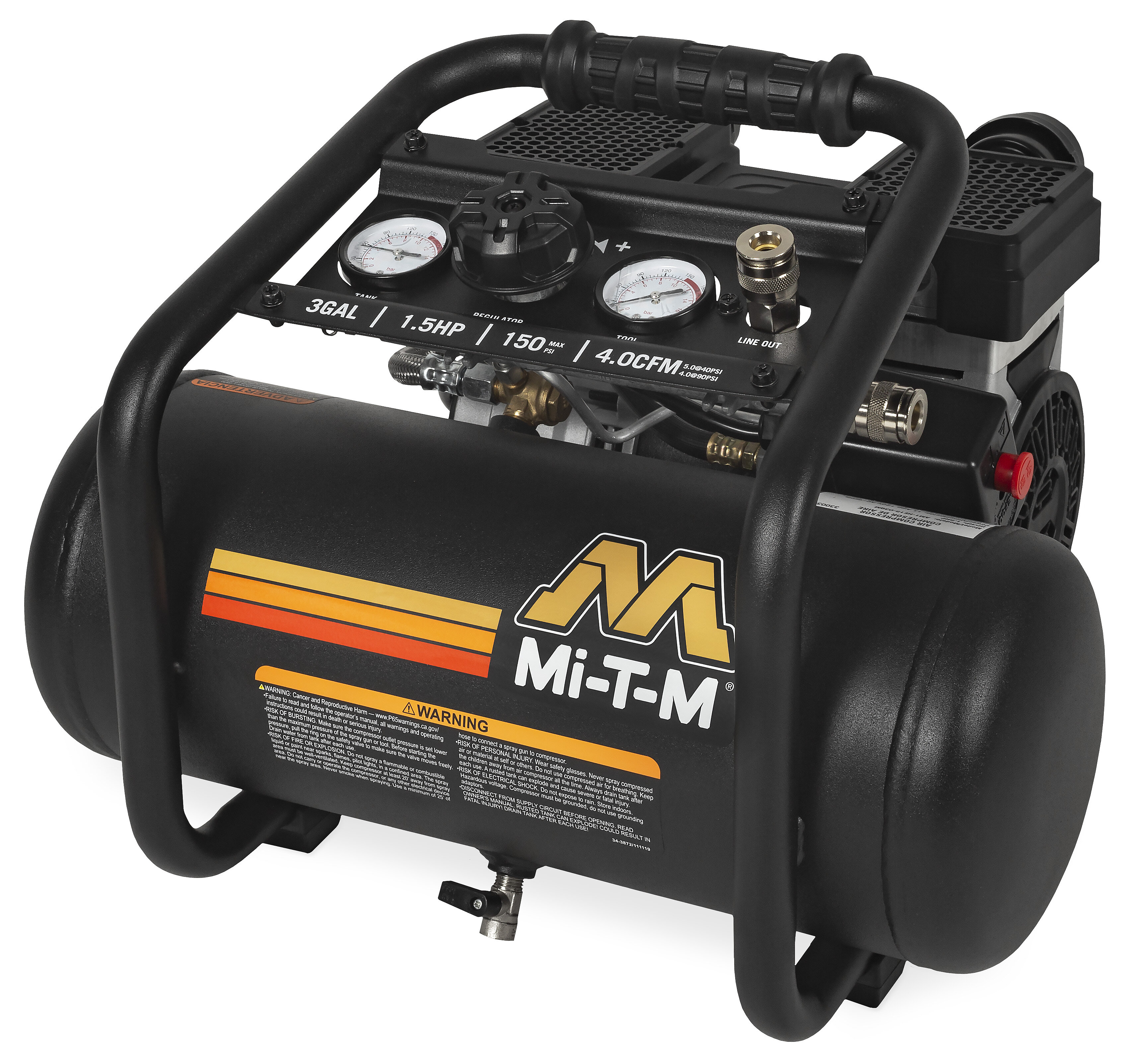

3-Gallon Single Stage Electric - AM1-HE15-03QM

Get Started

AM1-HE15-03QM

Big air power in a small package. Optimal for impact wrenches and grinders. The lightweight design makes it easy to take wherever the job is.

Compressor Pump
Aluminum compressor pump · Oil-free aluminum crankcase · Copper discharge hose · Cartridge air filter

Motor
Induction motor · Thermal overload motor protection

Frame
Powder coated tank · Protective pump/motor housing

Components
Regulator and two gauges for tank and outlet pressure · Drain and pressure relief valves · Industrial interchange quick connect fittings · Start/stop control set at 95 to 125-PSI · Integrated control panel for easy operation

Miscellaneous
Low noise level - less than 70dBA

Specifications

CFM @ PSI

4.0 @ 90
Horsepower/Motor

1.5 HP, 120V, 15.0A
Plug Type

NEMA 5-15P

Weights & Dimensions

Net Weight

51.00 lbs.
Shipping Weight

58.00 lbs.
Length

16.00 in.
Width

15.50 in.
Height

14.50 in.

Options - must be ordered with unit and cannot be added later.

No options

Videos

Links / Blog Articles

Check out the latest tips and advice

Warranty Information

1 Year Compressor Pump
1 Year Electric Motor
