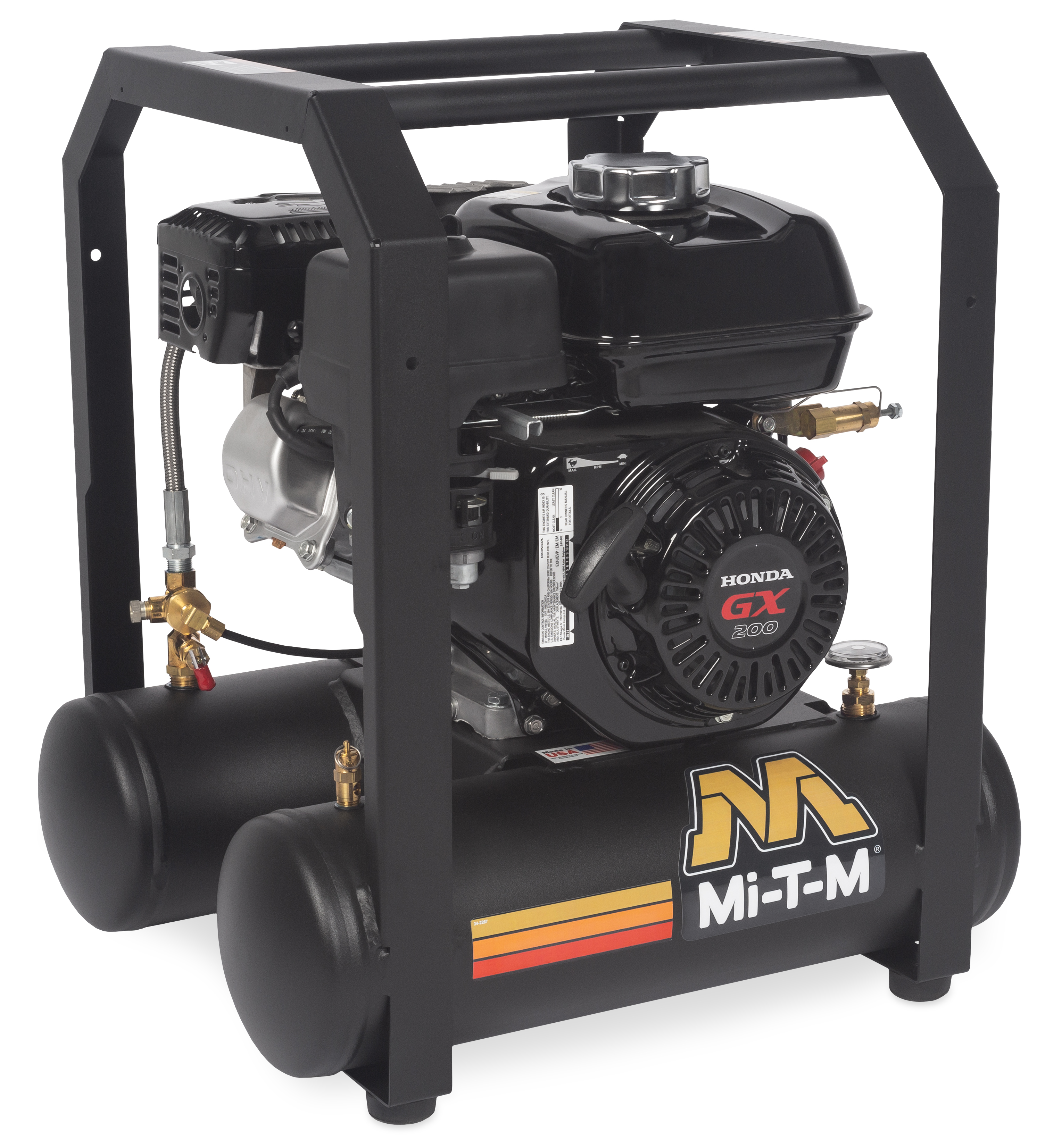

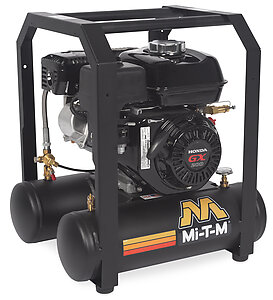

5-Gallon Single Stage Gasoline - AM1-HH04-05M

Get Started

AM1-HH04-05M

The 5-gallon gasoline air compressor makes do-it-yourself projects possible. Experience dependable energy for projects at home, businesses or small properties.

Compressor Pump
Cast iron cylinder · Splash lubricated aluminum crankcase · Stainless-steel braided discharge hose · Cartridge air filter

Frame
Powder coated steel frame and roll cage · Powder coated twin tank receivers

Components
Regulator and two gauges for tank and outlet pressure · Drain and pressure relief valves · Quality pilot valve unloader · Start/stop control set at 95 to 125-PSI

Specifications

CFM @ PSI

4.8 @ 90
Displacement/ Engine

196cc Honda GX200 OHV
Engine Idle Control

Pneumatic

Weights & Dimensions

Net Weight

84.00 lbs.
Shipping Weight

92.00 lbs.
Length

21.00 in.
Width

17.50 in.
Height

23.25 in.

Options - must be ordered with unit and cannot be added later.

No options

Videos

Links / Blog Articles

Check out the latest tips and advice

Warranty Information

1 Year Compressor Pump
3 Year Honda Engine
