8-Gallon Single Stage Electric - AM1-PE02-08M

CSA Certified C&US
Limited Warranties:
  • 1 Year Electric Motor
  • 2 Year Pump Exchange

Download Catalog »

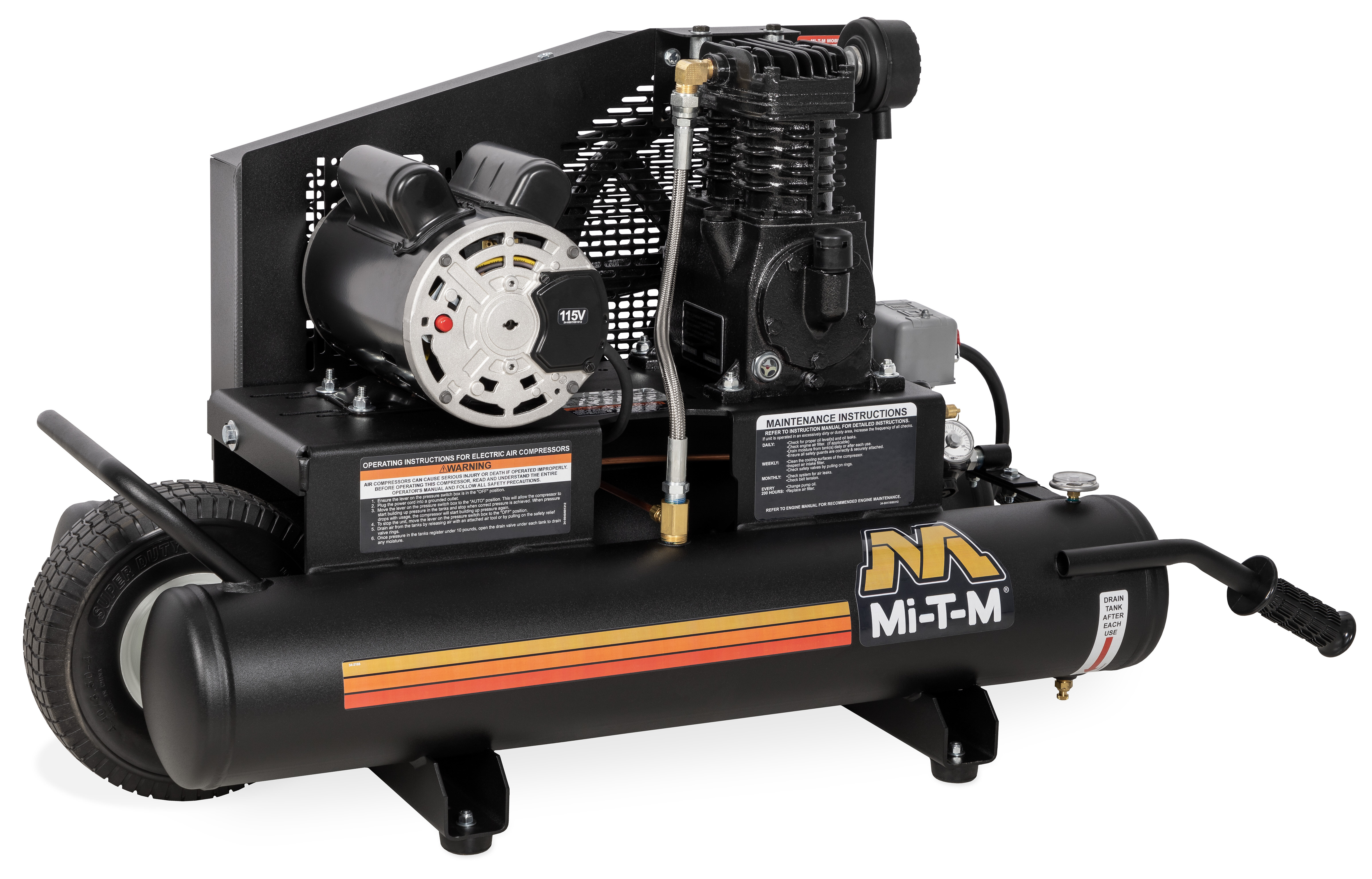

AM1-PE02-08M

The popular 8-gallon electric air compressor features advanced technology and performance so you can power up everything from drills to grinders and paint guns. Its portability makes it a great choice on many jobsites.

Compressor Pump: Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Motor: Auto start/stop - continuous run optional · Thermal overload motor protection

Frame: Powder coated 8-gallon twin tank receivers · 3/16-inch base plate to reduce vibration · 16-gauge powder coated two-piece belt guard · 10-inch flat-free tire

Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · Industrial grade pressure switch · 10-inch fly wheel · Start/stop control set at 95 to 125-PSI (Not on continous run models)

View Product Sheet »

Find a Dealer »

Specifications

  • CFM @ 90 PSI

    9.2

  • Horsepower/Motor

    2.0 HP, 120V, 18.8A

  • Compressor

    Single Stage, Cast Iron

  • Tank Size

    8 gallon

  • Plug Type

    NEMA 5-20P

Weights & Dimensions

  • Net Weight

    183.00 lbs.

  • Shipping Weight

    203.00 lbs.

  • Length

    44.50 in.

  • Width

    18.50 in.

  • Height

    25.00 in.

Options

  • AX-0002 Auto Drain/Regulator/Plastic Bowl

    Drains moisture from air system

  • AX-0003 Manual Drain/Regulator/Metal Bowl

    Drains moisture from air system

  • AX-0078 Stationary Option

    Converts the portable model to a stationary model, removes the wheel

  • AX-0005 Dual Control

    Compressor can be operated in start/stop mode or continuous run where pilot valve exhausts air to atmosphere
