20-Gallon Single Stage Gasoline - AM1-PH65-20M

Limited Warranties:
  • 2 Year Pump Exchange
  • 3 Year Honda Engine

Download Catalog »

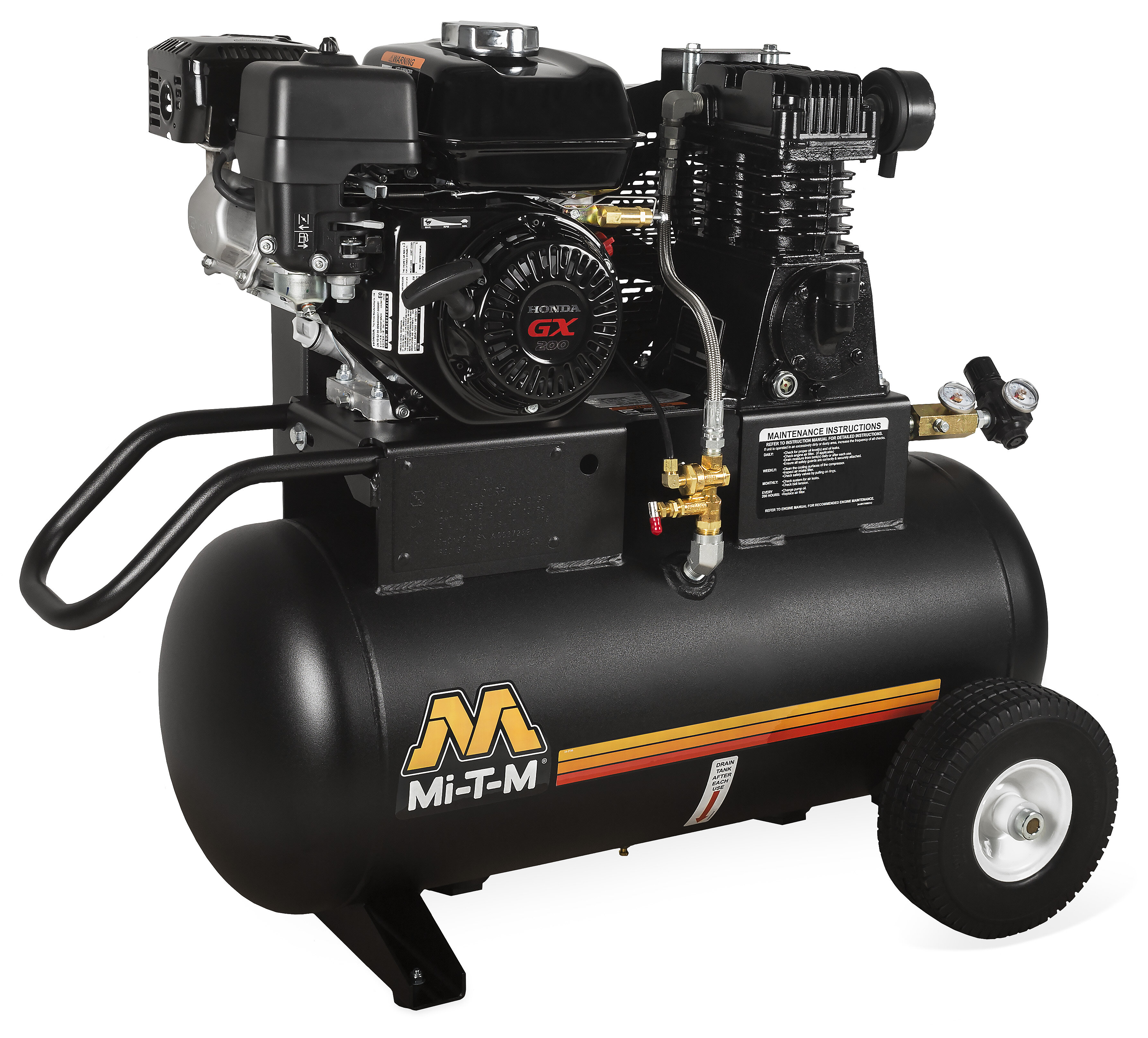

AM1-PH65-20M

If you need a lot of air capacity on the go, this machine is for you. This model features a powerful single stage compressor that is designed for maximum productivity. It is the ideal tool for large construction sites.

Compressor Pump: Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Frame: Powder coated ASME coded 20-gallon receiver tank · 3/16-inch base plate to reduce vibration · 16-gauge powder coated two-piece belt guard · 10-inch flat-free tires

Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 12-inch fly wheel · Quality pilot valve unloader

View Product Sheet »

Find a Dealer »

Specifications

  • CFM @ 90 PSI

    13.9

  • Displacement/ Engine

    196cc Honda GX200 OHV

  • Compressor

    Single Stage, Cast Iron

  • Tank Size

    20 gallon

  • Engine Idle Control

    Pneumatic

Weights & Dimensions

  • Net Weight

    212.00 lbs.

  • Shipping Weight

    272.00 lbs.

  • Length

    37.00 in.

  • Width

    23.50 in.

  • Height

    33.00 in.

Options

  • AX-0003 Manual Drain/Regulator/Metal Bowl

    Drains moisture from air system

  • AX-0027 Stationary Kit

    Converts the portable model to a stationary model, removes the wheels and adds the stationary leg
