8-Gallon Single Stage Gasoline - AM1-PM07-08M

Limited Warranties:
  • 1 Year Mi-T-M Engine
  • 2 Year Pump Exchange

Download Catalog »

View Product Sheet »

AM1-PM07-08M

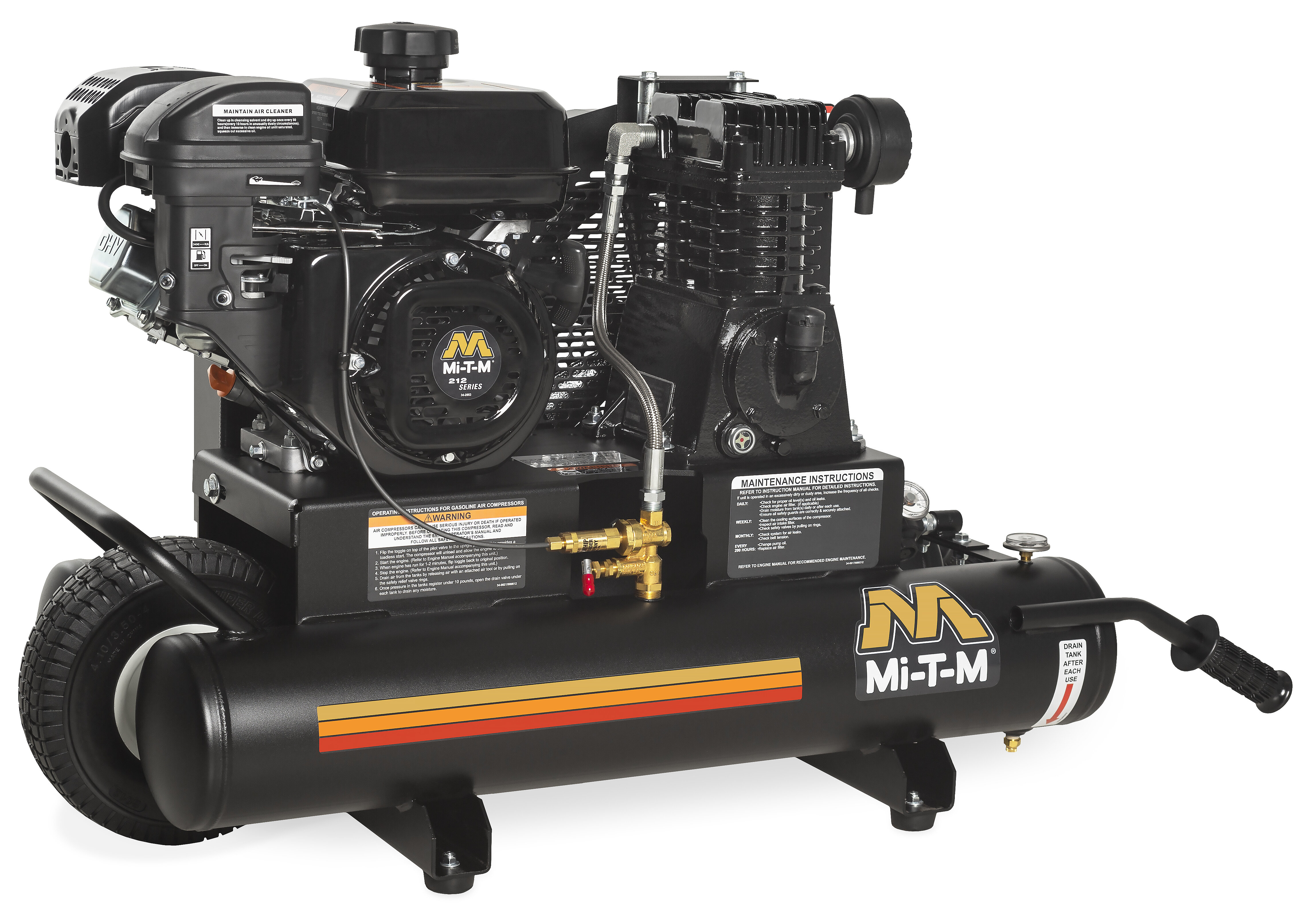

Designed for maximum efficiency, contractors love the portability of this wheelbarrow style 8-gallon air compressor. It provides essential air power for nailers, air hammers and impact wrenches on construction sites.

Compressor Pump: Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Frame: Powder coated twin tank receivers · 3/16-inch base plate to reduce vibration · 16-gauge powder coated two-piece belt guard · 10-inch flat-free tire

Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 12-inch fly wheel · Quality pilot valve unloader

Find a Dealer »

Specifications

  • CFM @ PSI

    13.9 @ 90

  • Displacement/ Engine

    212cc Mi-T-M OHV

  • Compressor

    Single Stage, Cast Iron

  • Tank Size

    8 gallon

  • Engine Idle Control

    Pneumatic

Weights & Dimensions

  • Net Weight

    175.00 lbs.

  • Shipping Weight

    200.00 lbs.

  • Length

    44.50 in.

  • Width

    18.50 in.

  • Height

    27.00 in.

Options

  • AX-0003 Manual Drain/Regulator/Metal Bowl

    Drains moisture from air system

  • AX-0078 Stationary Option

    Converts the portable model to a stationary model, removes the wheel
