8-Gallon Single Stage Gasoline - AM1-PM07-08ME

AM1-PM07-08ME

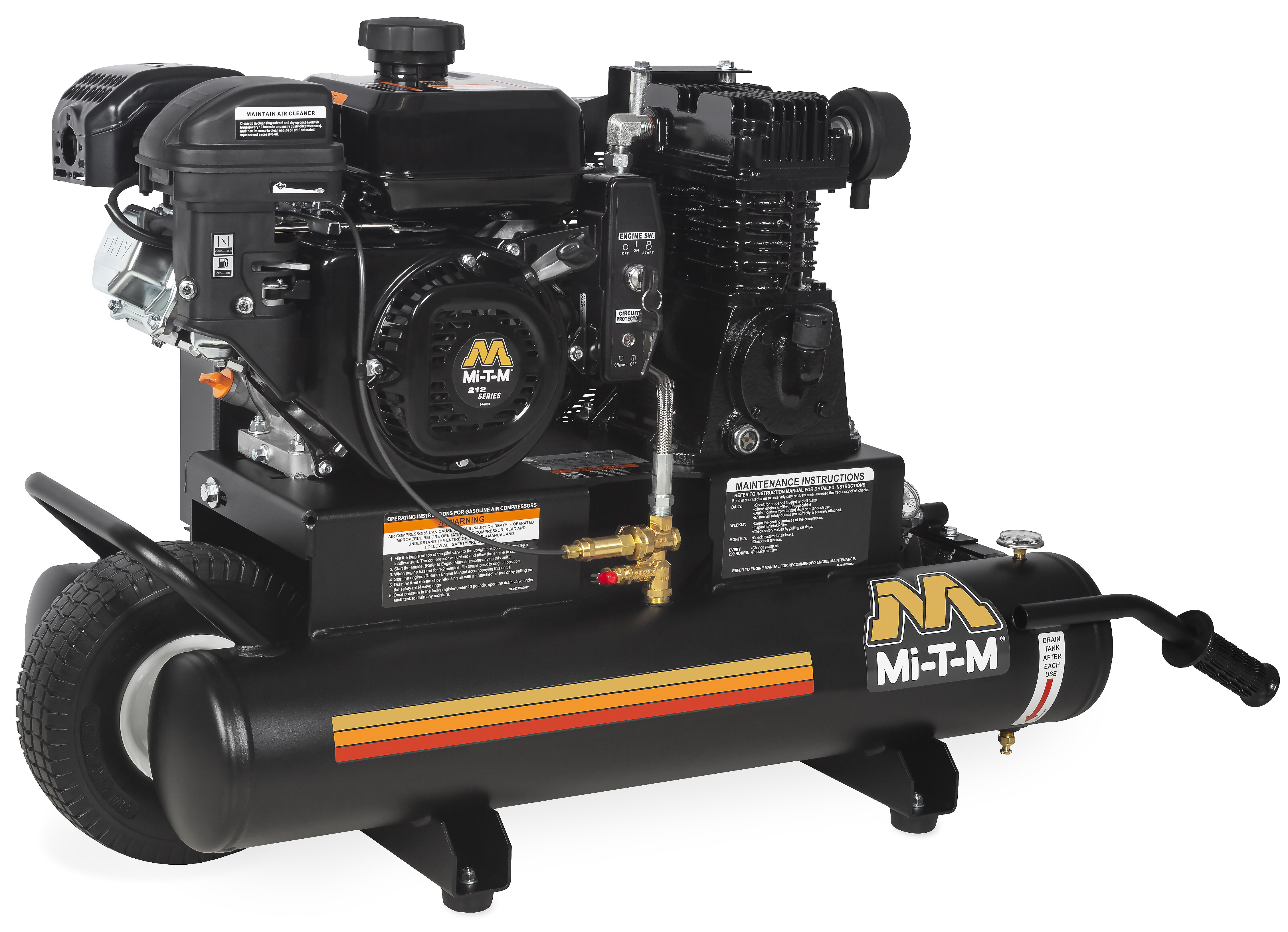

The 8-gallon air compressor is essential for powering air tools. The wheelbarrow design allows for easy portability from one job to the next.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Frame
Powder coated twin tank receivers · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · 10-inch flat-free tire

Components
Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 12-inch fly wheel · Quality pilot valve unloader

Equipped with electric start – battery, box and cables not included.

Specifications

  • CFM @ PSI

    13.9 @ 90

  • Displacement/ Engine

    212cc Mi-T-M OHV

  • Engine Idle Control

    Cable Throttle

Weights & Dimensions

  • Net Weight

    182.00 lbs.

  • Shipping Weight

    207.00 lbs.

  • Length

    44.50 in.

  • Width

    18.50 in.

  • Height

    27.00 in.

Options

  • AX-0003 Manual Drain/Regulator/Metal Bowl

    Drains moisture from air system

  • AX-0078 Stationary Option

    Converts the portable model to a stationary model, removes the wheel

Warranty Information
  • 2 Year Pump Exchange
  • 3 Year Mi-T-M Engine
