8-Gallon Two Stage Gasoline - AM2-PH09-08M

Limited Warranties:
  • 2 Year Pump Exchange
  • 3 Year Honda Engine

Download Catalog »

AM2-PH09-08M

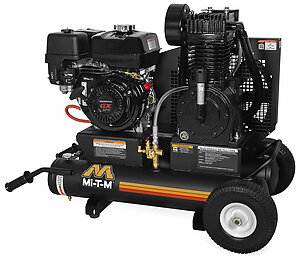

The two stage wheelbarrow style 8-gallon air compressor is ideal for both contractors and remodelers where a higher CFM and air pressure is a must. Use it to power a multitude of air tools such as air hammers and impact wrenches.

Compressor Pump: Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Frame: Powder coated 8-gallon twin tank receivers · 3/16-inch base plate to reduce vibration · 14-gauge powder coated two-piece belt guard · 10-inch flat-free tires

Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16 1/2-inch fly · Quality pilot valve unloader

*Equipped with 150-PSI maximum rated regulator

View Product Sheet »

Find a Dealer »

Specifications

  • CFM @ 175 PSI*

    17.2

  • Displacement/ Engine

    270cc Honda GX270 OHV

  • Compressor

    Two Stage, Cast Iron

  • Tank Size

    8 gallon

  • Engine Idle Control

    Pneumatic

Weights & Dimensions

  • Net Weight

    260.00 lbs.

  • Shipping Weight

    330.00 lbs.

  • Length

    44.00 in.

  • Width

    26.00 in.

  • Height

    31.00 in.

Options

  • AX-0003 Manual Drain/Regulator/Metal Bowl

    Drains moisture from air system

  • AX-0015 Electric Start - Battery and Cables Not Included

    For easy starting

  • IX-0055 Remote Start/Choke

    Remote start/choke; 6-foot wire extension for key switch; you will also need to order electric start option, AX-0015

  • IX-0059 Remote Start/Choke

    Remote start/choke; 6-foot wire extension for key switch, sealed cable; you will also need to order electric start option, AX-0015
