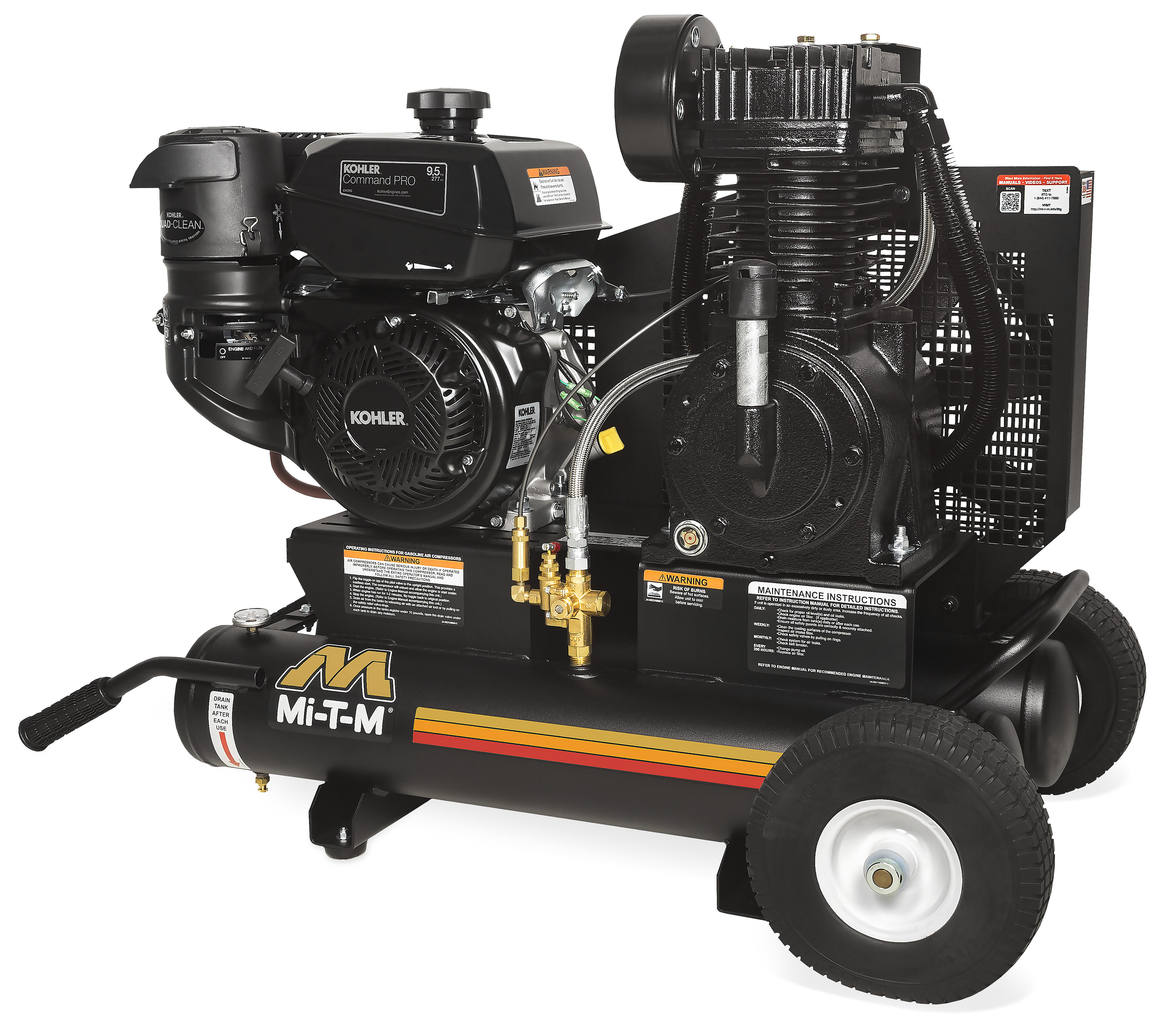

8-Gallon Two Stage Gasoline - AM2-PK95-08M

AM2-PK95-08M

With its wheelbarrow design, this unit powers air tools like paint sprayers and pneumatic drills, making it ideal for construction, remodeling and shop projects.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Frame
Powder coated twin tank receivers · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · 10-inch flat-free tires

Components
Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16 1/2-inch fly wheel · Quality pilot valve unloader · Start/stop control set at 145 to 175-PSI

Equipped with 150-PSI maximum rated regulator.

Specifications

  • CFM @ PSI

    17.2 @ 175

  • Displacement/ Engine

    277cc Kohler CH395 OHV

  • Engine Idle Control

    Cable Throttle

Weights & Dimensions

  • Net Weight

    260.00 lbs.

  • Shipping Weight

    330.00 lbs.

  • Length

    44.00 in.

  • Width

    26.00 in.

  • Height

    31.00 in.

Options - must be ordered with unit and cannot be added later.

  • AX-0003 Manual Drain/Regulator/Metal Bowl

    Drains moisture from air system

  • AX-0084 Stationary Option

    Converts the portable model to a stationary model, removes the tires and handles

Warranty Information
  • 2 Year Pump Exchange
  • 3 Year Kohler Engine
