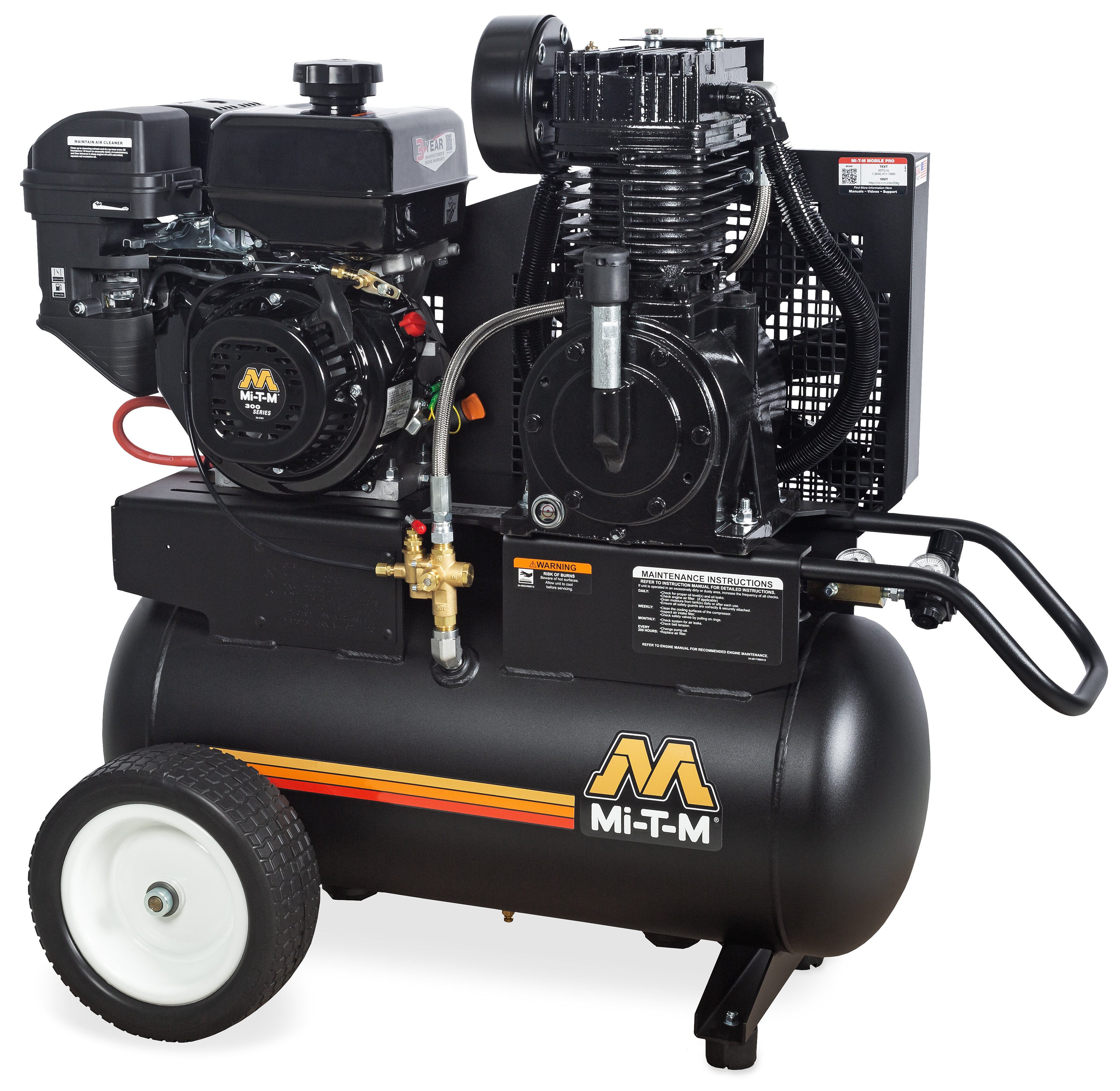

20-Gallon Two Stage Gasoline - AM2-PM09-20M

expand-icon

Resources

Find A Local Dealer

Get Started

AM2-PM09-20M

Remote jobsites require dependable power, and the two-stage, 20-gallon air compressor delivers reliable performance.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · 13-inch flat-free tires

Components
Regulator and two gauges for tank and outlet pressure · Manual drain valve for proper maintenance · 16 1/2-inch fly wheel · Quality pilot valve unloader · Start/stop control set at 145 to 175-PSI

Equipped with 150-PSI maximum rated regulator.

Specifications

  • CFM @ PSI

    17.2 @ 175

  • Displacement/ Engine

    300cc Mi-T-M OHV

  • Engine Idle Control

    Pneumatic

Weights & Dimensions

  • Net Weight

    306.00 lbs.

  • Shipping Weight

    356.00 lbs.

  • Length

    46.00 in.

  • Width

    26.00 in.

  • Height

    39.50 in.

Options - must be ordered with unit and cannot be added later.

  • AX-0003 Manual Drain/Regulator/Metal Bowl

    Drains moisture from air system

Warranty Information
  • 2 Year Pump Exchange
  • 3 Year Mi-T-M Engine
Additional Info
Chat With An Expert IconChat With An Expert Find A Service Center Icon Find A Service Center Support Videos Icon Support Videos Contact Us Icon Contact Us

Related Parts & Accessories

Air Chuck - Ball Foot
AT-3002

Air Chuck - Deluxe Air Inflator
AT-3003

Air Chuck - Dual Foot
AT-3001

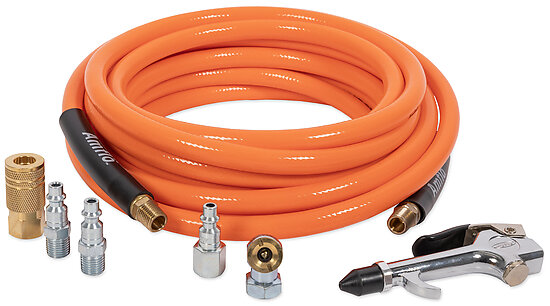

 Air Compressor Accessory Kit - AW-9301-AT02

Air Compressor Accessory Kit
AW-9301-AT02

Air Filter Canisters

Air Filter Elements

Air Hoses

Air/Liquid Adapter Kit
23-0414

Barbed Hose Fittings

Barbed Hose Splicers

Blow Guns

Brass Couplings

Coupler Test Bar
17-4952

Coupler/Plug Sets

Electronic Compressor Drain
AT-4012-M

Engine Oil Drain Extensions

Equipment Cover
AW-6000-1002

Equipment Cover
AW-6000-1003

Filter/Regulator
AT-4011-M

Filters

Gauges

In-Line Lubricators

Plugs & Couplers

Rear Lifting Handle
7-0228A18

Regulators

Replacement Pumps

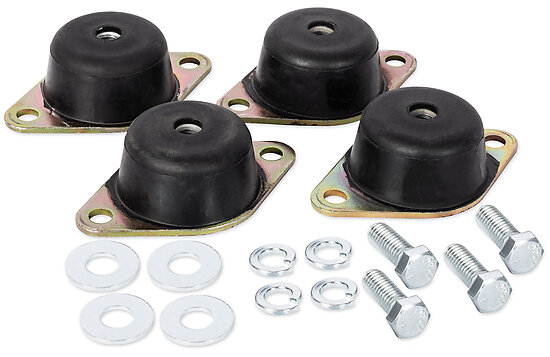

Service Truck Mount Kit
