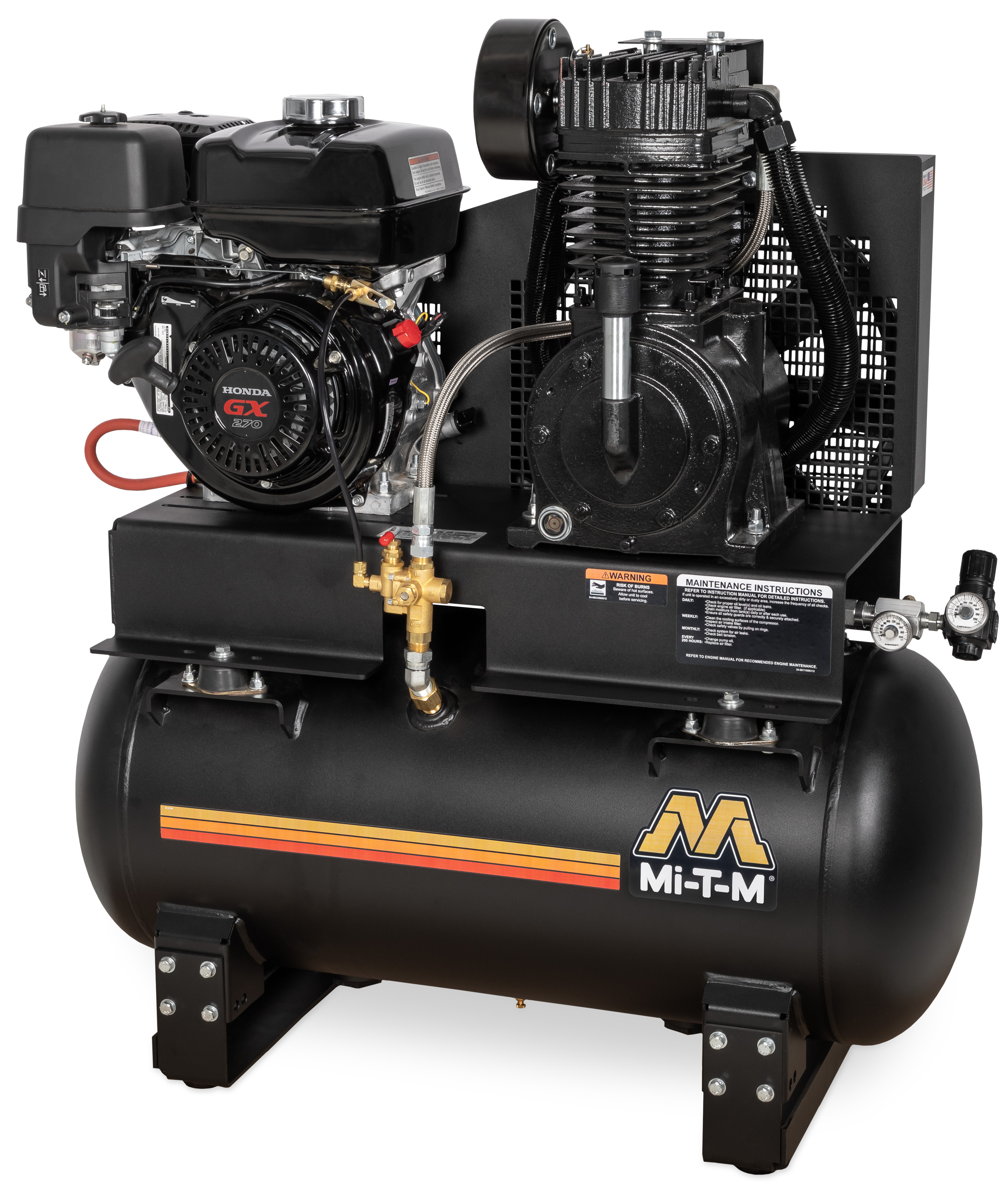

30-Gallon Two Stage Gasoline - AM2-SH09-30M

expand-icon

Resources

Find A Local Dealer

Get Started

AM2-SH09-30M

Designed with a powder coated ASME receiver tank, you will experience proven performance from the 30-gallon air compressor time after time.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · Removable base plate offers flexible installation

Components
Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16-1/2-inch fly wheel · Quality pilot valve unloader

Equipped with 150-PSI maximum rated regulator.
49 state engine. Not for sale in California.

Specifications

  • CFM @ PSI

    17.2 @ 175

  • Displacement/ Engine

    270cc Honda GX270 OHV

  • Tank Size

    30-gallon

  • Engine Idle Control

    Pneumatic

Weights & Dimensions

  • Net Weight

    376.00 lbs.

  • Shipping Weight

    446.00 lbs.

  • Length

    40.50 in.

  • Width

    17.50 in.

  • Height

    44.50 in.

Options

  • AX-0003 Manual Drain/Regulator/Metal Bowl

    Drains moisture from air system

Warranty Information
  • 2 Year Pump Exchange
  • 3 Year Honda Engine
