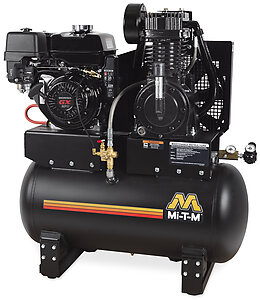

30-Gallon Two Stage Gasoline - AM2-SH09-30ME


Designed with a powder coated ASME receiver tank, you will experience proven performance from the 30-gallon air compressor time after time.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · Removable base plate offers flexible installation

Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16-1/2-inch fly wheel · Quality pilot valve unloader

Equipped with 150-PSI maximum rated regulator.
49 state engine. Not for sale in California.
Equipped with electric start – battery, box and cables not included.


  • CFM @ PSI

    17.2 @ 175

  • Displacement/ Engine

    270cc Honda GX270 OHV

  • Tank Size


  • Engine Idle Control


Weights & Dimensions

  • Net Weight

    490.00 lbs.

  • Shipping Weight

    460.00 lbs.

  • Length

    40.50 in.

  • Width

    17.50 in.

  • Height

    44.50 in.


  • AX-0003 Manual Drain/Regulator/Metal Bowl

    Drains moisture from air system

  • IX-0055 Remote Start/Choke

    7-foot wire extension for key switch

  • IX-0059 Remote Start/Choke

    7-foot wire extension for key switch, sealed cable

  • AX-0017 Electric Start

    For easy starting - sealed battery, tray, box and cables included

  • AX-0077 Battery Box and Tray

    Attaches to engine side of unit

Warranty Information
  • 2 Year Pump Exchange
  • 3 Year Honda Engine
Additional Info
