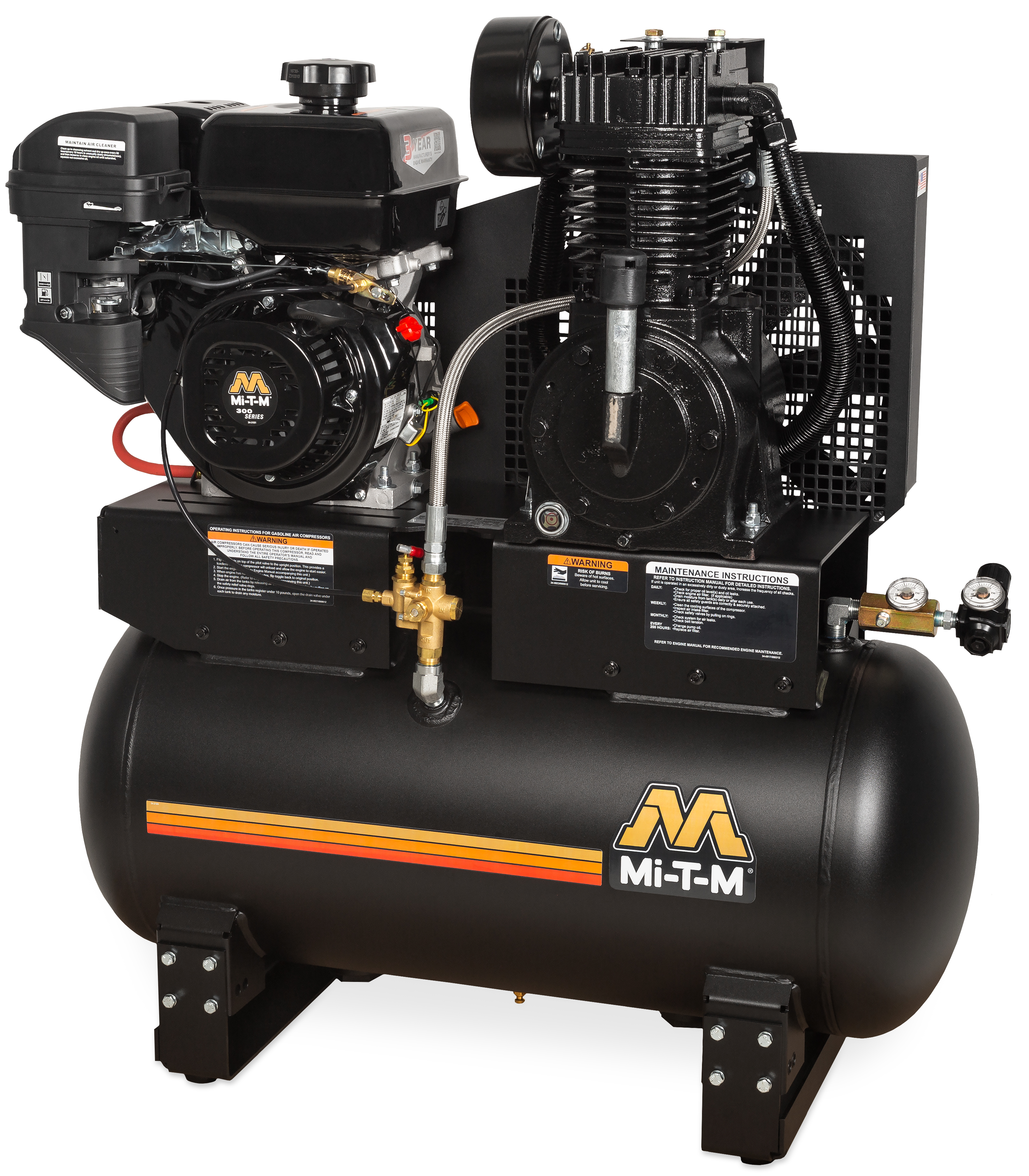

30-Gallon Two Stage Gasoline - AM2-SM09-30M


Designed with a powder coated ASME receiver tank, you will experience proven performance from the 30-gallon air compressor time after time.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · Removable base plate offers flexible installation

Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16-1/2-inch fly wheel · Quality pilot valve unloader

Equipped with 150-PSI maximum rated regulator.


  • CFM @ PSI

    17.2 @ 175

  • Displacement/ Engine

    300cc Mi-T-M OHV

  • Tank Size


  • Engine Idle Control

    Cable Throttle

Weights & Dimensions

  • Net Weight

    364.00 lbs.

  • Shipping Weight

    434.00 lbs.

  • Length

    40.50 in.

  • Width

    17.50 in.

  • Height

    44.50 in.


  • AX-0003 Manual Drain/Regulator/Metal Bowl

    Drains moisture from air system

Warranty Information
  • 2 Year Pump Exchange
  • 3 Year Mi-T-M Engine
Additional Info
