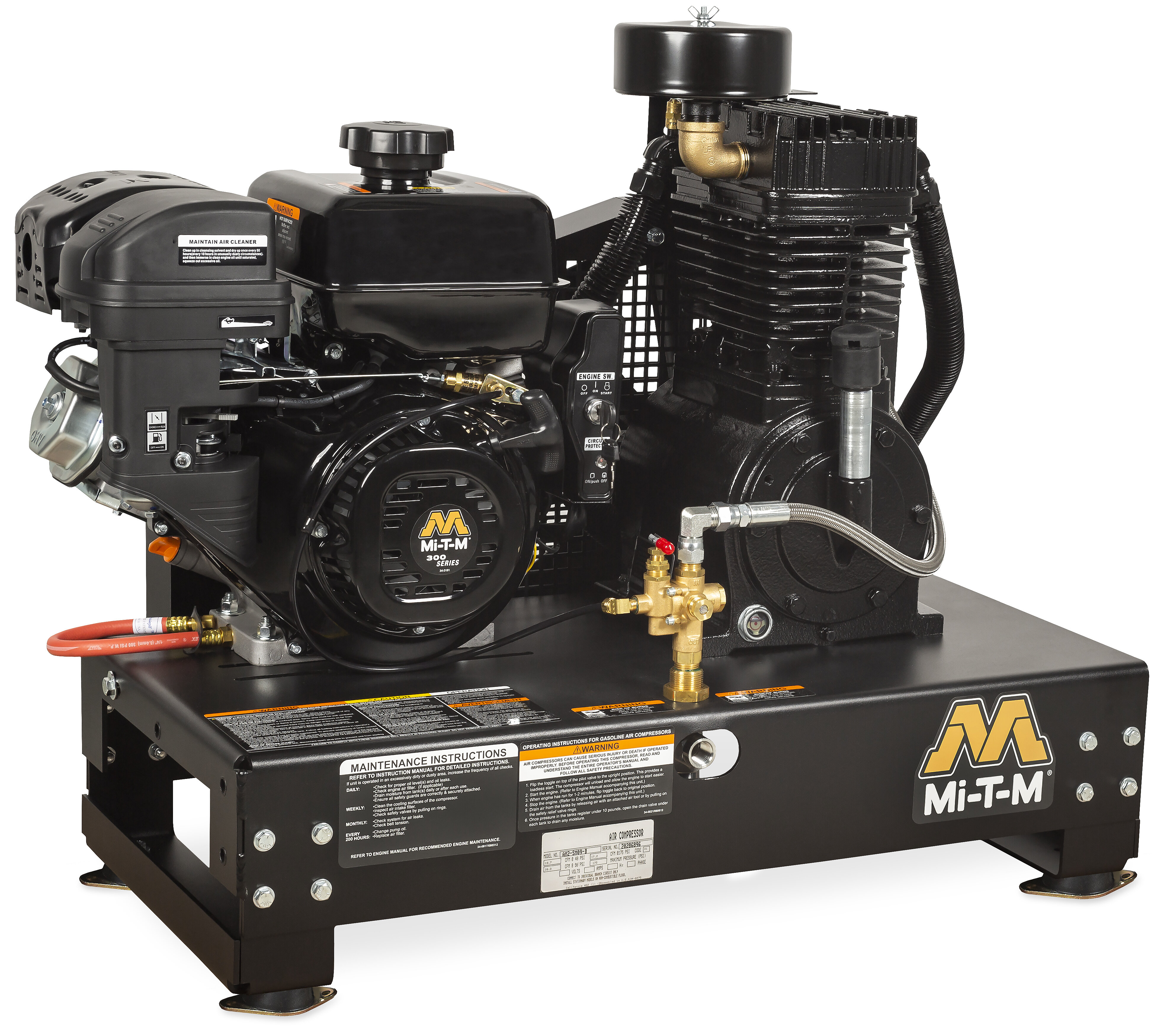

Base-Mount Two Stage Gasoline - AM2-SM09-B

Get Started

AM2-SM09-B

Designed with a powder coated ASME receiver tank, you will experience proven performance from the base-mount air compressor time after time.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard

Components
Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16-1/2-inch fly wheel · Quality pilot valve unloader

Equipped with 150-PSI maximum rated regulator.
Equipped with electric start – battery, box and cables not included.

Specifications

CFM @ PSI

17.2 @ 175
Displacement/ Engine

300cc Mi-T-M OHV
Tank Size

Base-Mount
Engine Idle Control

Cable Throttle

Weights & Dimensions

Net Weight

309.00 lbs.
Shipping Weight

379.00 lbs.
Length

36.50 in.
Width

21.00 in.
Height

32.00 in.

Options

AX-0003 Manual Drain/Regulator/Metal Bowl

Drains moisture from air system
AX-0017 Electric Start

For easy starting - sealed battery, tray, box and cables included
AX-0077 Battery Box and Tray

Attaches to engine side of unit
