ADS M Series 10.0 HP Simplex Horizontal - 120-Gallon

Get Started

120-Gallon

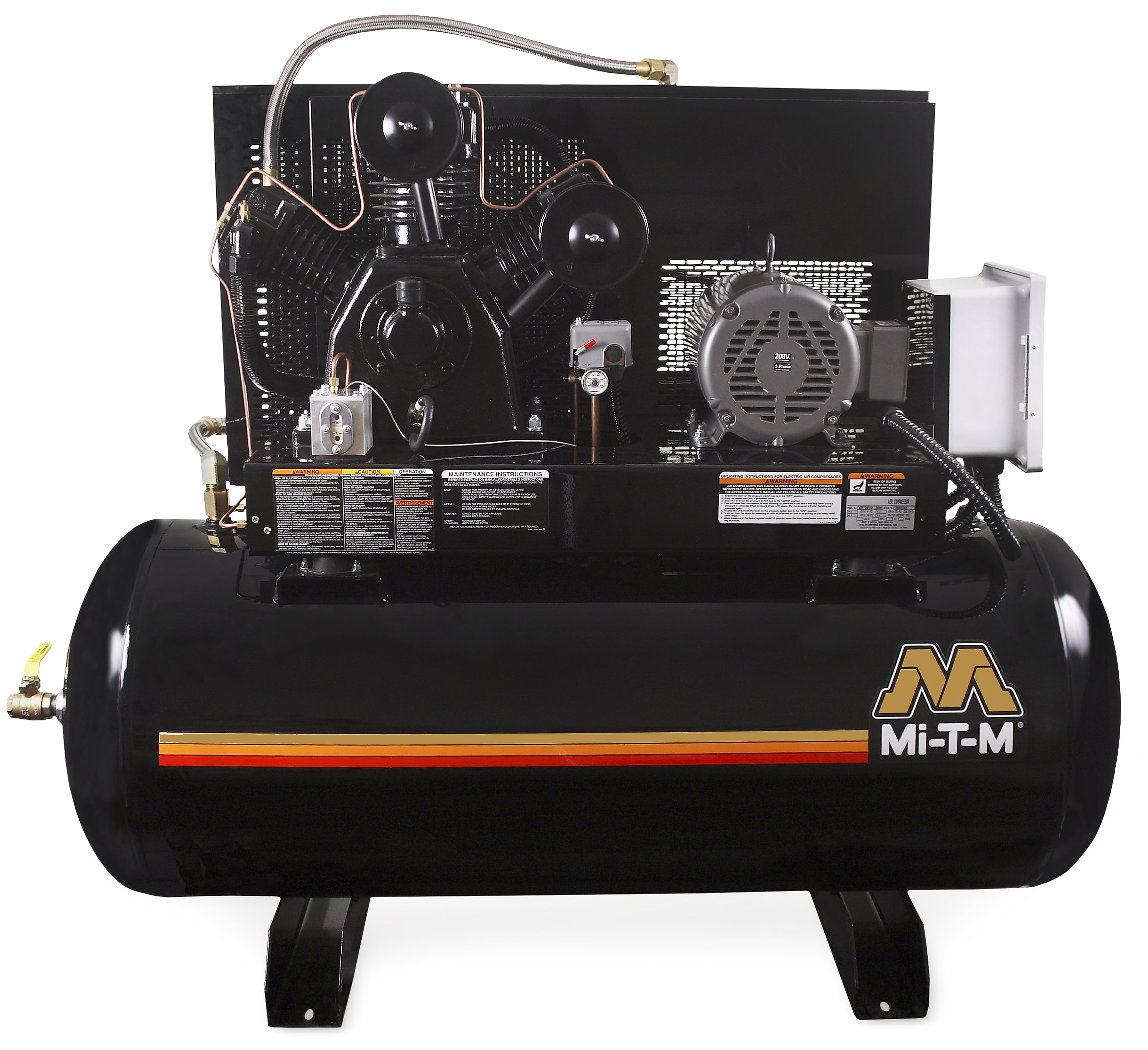

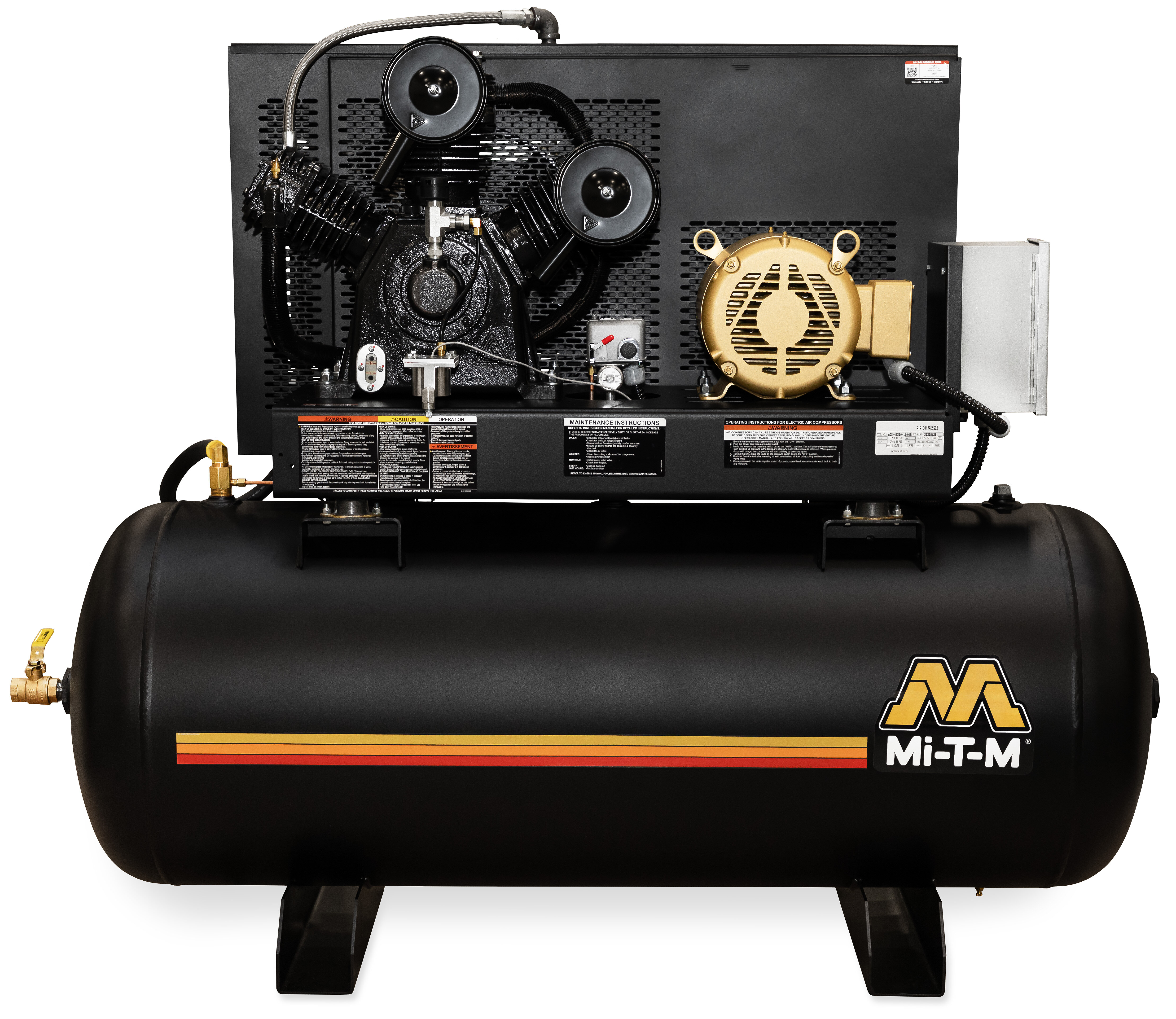

ADS M Series – 10.0 HP Simplex Horizontal

The M Series air compressors offer several motor configurations and maximum air power, elevating any workspace.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil lever sight indicator

Motor
Industrial low RPM motor · Magnetic start for thermal overload protection

Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · Removable base plate offers flexible installation

Components
ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Intake filter/silencer · Tank shut-off valve · Start/stop control set at 145 to 175-PSI

Models Available
ADS-23110-120HM 230V, 1Ø, 39.0A 1016 lb. ship wt./866 lb. net wt.
ADS-20310-120HM 200V, 3Ø, 30.8A 996 lb. ship wt./846 lb. net wt.
ADS-23310-120HM 230V, 3Ø, 26.8A 986 lb. ship wt./836 lb. net wt.
ADS-46310-120HM 460V, 3Ø, 13.4A 986 lb. ship wt./836 lb. net wt.
