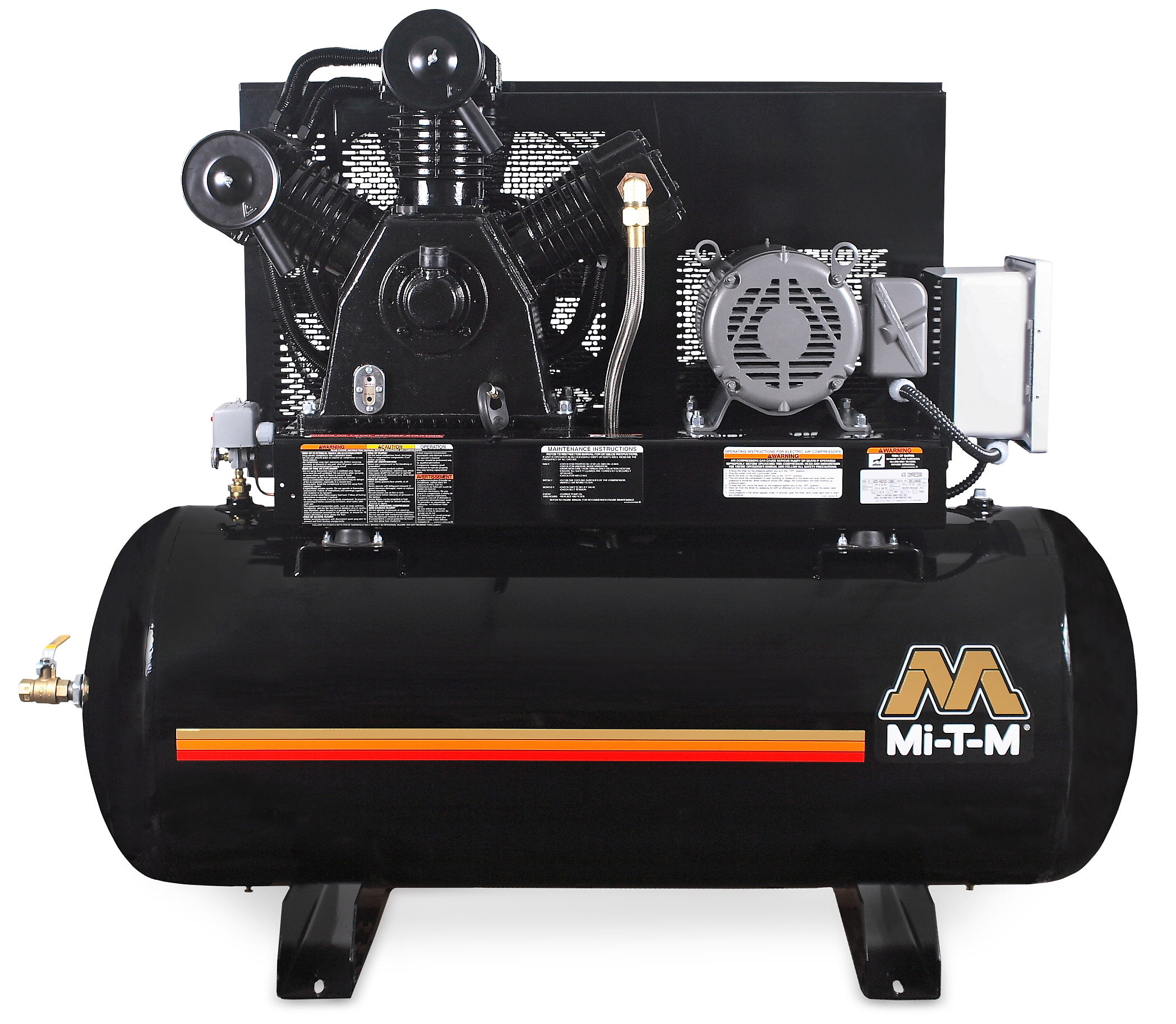

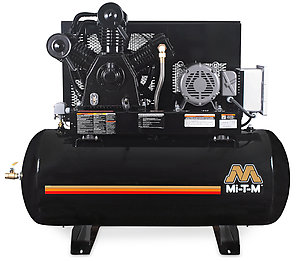

AES M Series 15.0 HP Simplex Horizontal - 120-Gallon

120-Gallon

AES M Series – 15.0 HP Simplex Horizontal

The M Series air compressors offer several motor configurations and maximum air power, elevating any workspace.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil lever sight indicator

Motor
Industrial low RPM motor · Magnetic start for thermal overload protection

Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · Removable base plate offers flexible installation

Components
ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Intake filter/silencer · Tank shut-off valve · Start/stop control set at 145 to 175-PSI

Models Available
AES-20315-120HM    200V, 3Ø, 44.0A    1208 lb. ship wt./1058 lb. net wt.
AES-23315-120HM    230V, 3Ø, 38.0A    1193 lb. ship wt./1043 lb. net wt.
AES-46315-120HM    460V, 3Ø, 19.0A    1193 lb. ship wt./1043 lb. net wt.

Specifications

  • CFM @ PSI

    46.5 @ 175

  • Pump RPM

    990

  • Tank Size

    120-gallon

  • Bolt Down (LxW)

    34.5 x 23.5 in.

Weights & Dimensions

  • Net Weight

    0.00 lbs.

  • Shipping Weight

    0.00 lbs.

  • Length

    74.00 in.

  • Width

    26.50 in.

  • Height

    58.00 in.

Options - must be ordered with unit and cannot be added later.

  • No options
Warranty Information
  • 1 Year Electric Motor
  • 2 Year Pump Exchange
