80-Gallon

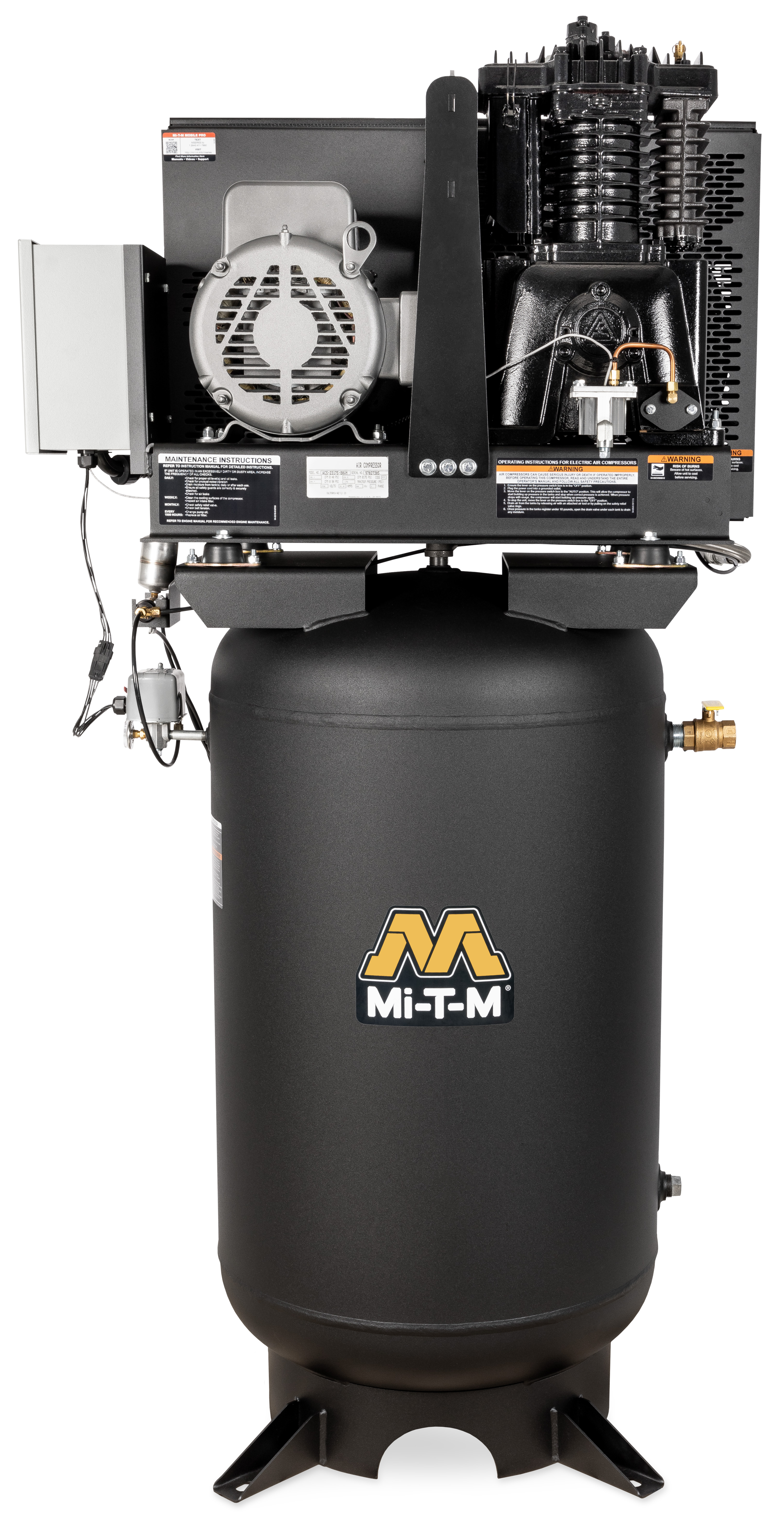

ACS M Series – 7.5 HP Simplex Vertical

The M Series air compressors offer several motor configurations and maximum air power, elevating any workspace.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil lever sight indicator

Motor
Industrial low RPM motor · Magnetic start for thermal overload protection

Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · Removable base plate offers flexible installation

Components
ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Intake filter/silencer · Tank shut-off valve · Start/stop control set at 145 to 175-PSI

Models Available
ACS-23175-80VM 230V, 1Ø, 31.0A 741 lb. ship wt./634 lb. net wt.
ACS-20375-80VM 200V, 3Ø, 23.0A 726 lb. ship wt./619 lb. net wt.
ACS-23375-80VM 230V, 3Ø, 20.0A 725 lb. ship wt./618 lb. net wt.
ACS-46375-80VM 460V, 3Ø, 10.0A 725 lb. ship wt./618 lb. net wt.

Note: All vertical models are shipped in two separate pieces. Assembly is required.

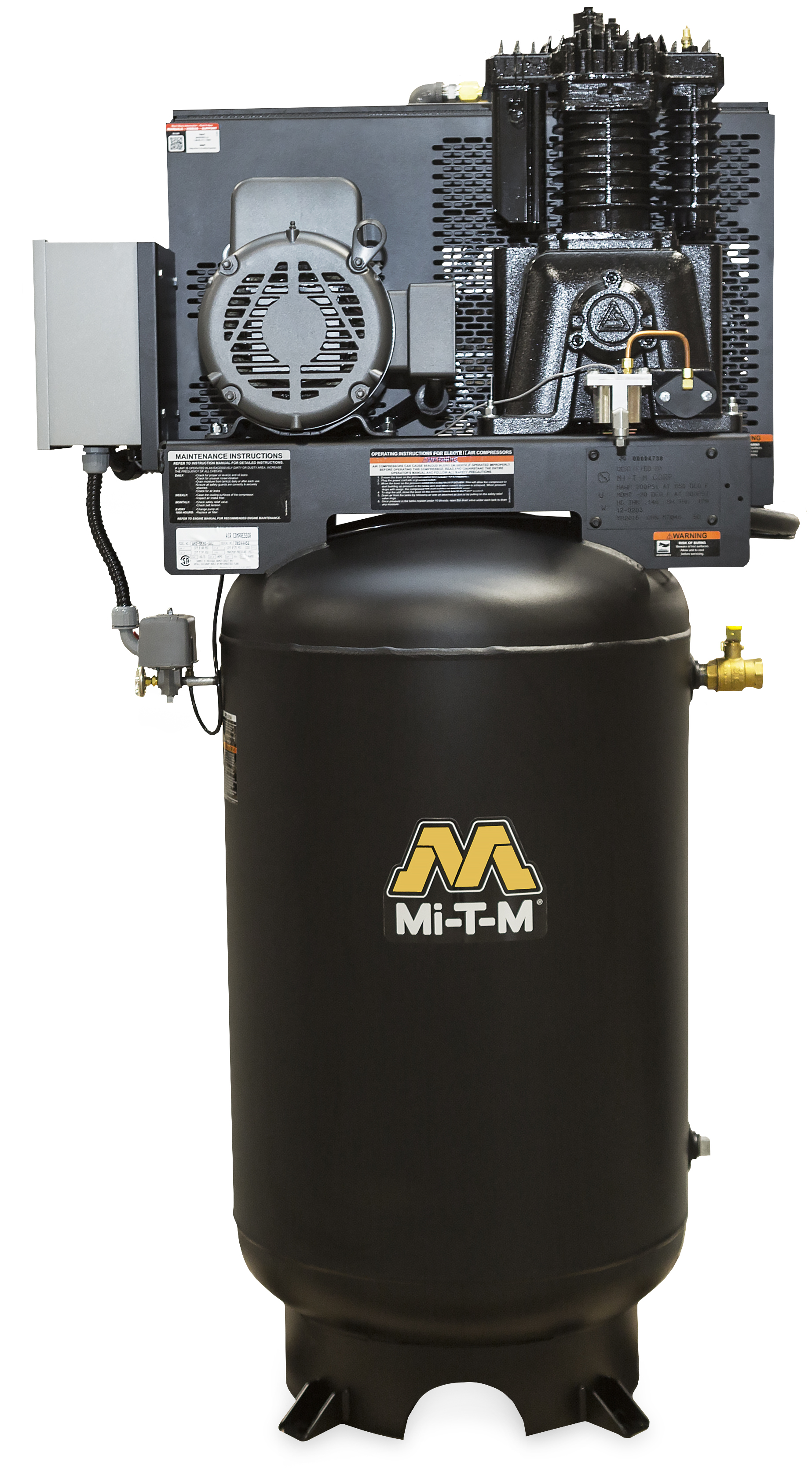

Photo shown with pre-assembled option, IX-0070
