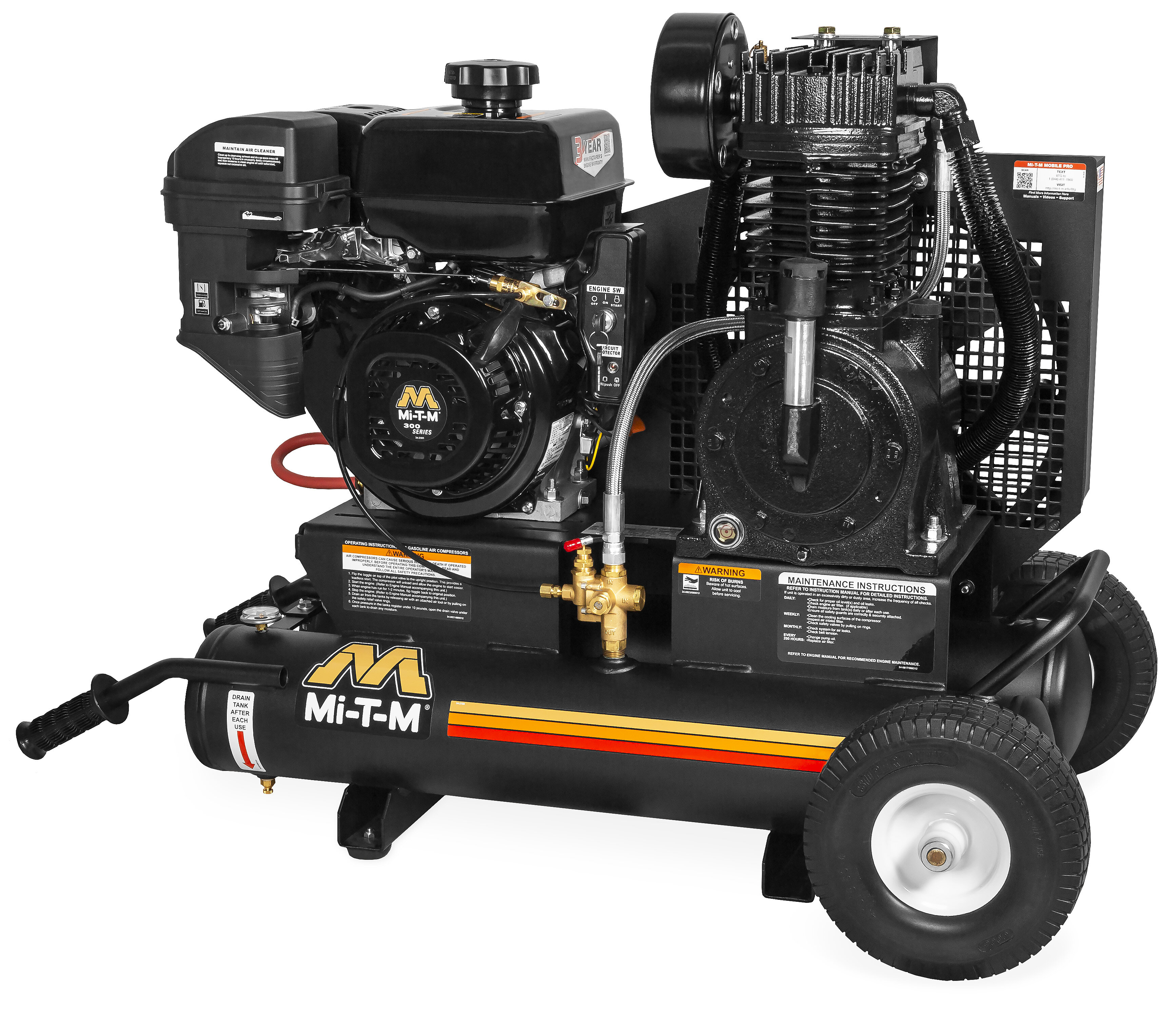

8-Gallon Two Stage Gasoline - AM2-PM09-08ME

Get Started

AM2-PM09-08ME

With its wheelbarrow design, this unit powers air tools like paint sprayers and pneumatic drills, making it ideal for construction, remodeling and shop projects.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Frame
Powder coated twin tank receivers · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · 10-inch flat-free tires

Components
Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16 1/2-inch fly wheel · Quality pilot valve unloader · Start/stop control set at 145 to 175-PSI

Equipped with 150-PSI maximum rated regulator.
Equipped with electric start – battery, box and cables not included.

Specifications

CFM @ PSI

17.2 @ 175
Displacement/ Engine

300cc Mi-T-M OHV
Engine Idle Control

Pneumatic

Weights & Dimensions

Net Weight

267.00 lbs.
Shipping Weight

337.00 lbs.
Length

44.00 in.
Width

26.00 in.
Height

31.00 in.

Options - must be ordered with unit and cannot be added later.

AX-0003 Manual Drain/Regulator/Metal Bowl

Drains moisture from air system
AX-0084 Stationary Option

Converts the portable model to a stationary model, removes the tires and handles
AX-0105 Remote Start/Choke, Sealed Cable

7-foot wire extension for key switch
