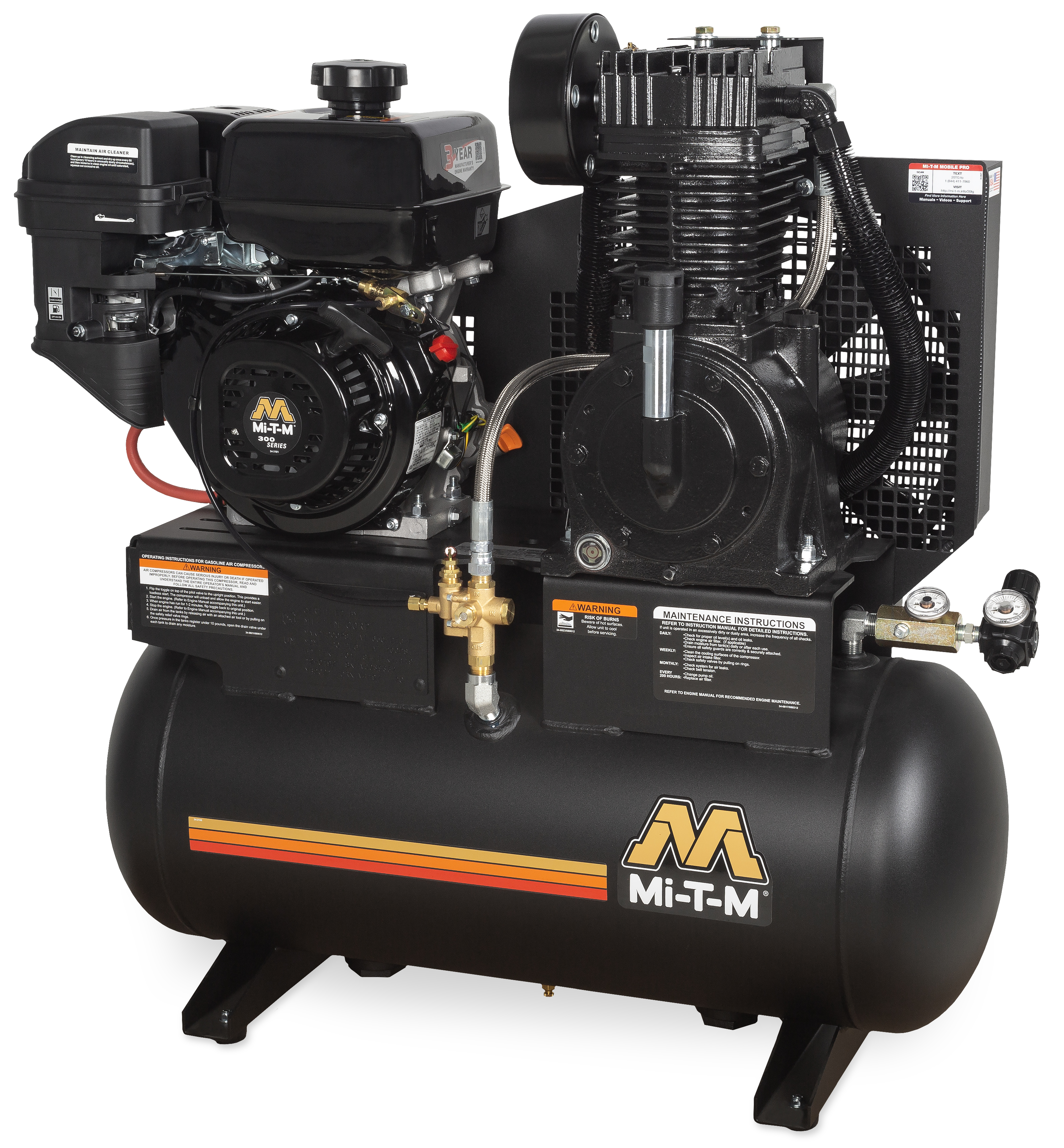

20-Gallon Two Stage Gasoline - AM2-SM09-20M

expand-icon

Resources

Find A Local Dealer

Get Started

AM2-SM09-20M

Remote jobsites require dependable power, and the two-stage, 20-gallon air compressor delivers reliable performance.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard

Components
Regulator and two gauges for tank and outlet pressure · Manual drain valve for proper maintenance · 16 1/2-inch fly wheel · Quality pilot valve unloader · Start/stop control set at 145 to 175-PSI

Equipped with 150-PSI maximum rated regulator.

Specifications

  • CFM @ PSI

    17.2 @ 175

  • Displacement/ Engine

    300cc Mi-T-M OHV

  • Engine Idle Control

    Pneumatic

Weights & Dimensions

  • Net Weight

    306.00 lbs.

  • Shipping Weight

    356.00 lbs.

  • Length

    37.00 in.

  • Width

    18.00 in.

  • Height

    38.00 in.

Options - must be ordered with unit and cannot be added later.

  • AX-0003 Manual Drain/Regulator/Metal Bowl

    Drains moisture from air system

Warranty Information
  • 2 Year Pump Exchange
  • 3 Year Mi-T-M Engine
Additional Info
