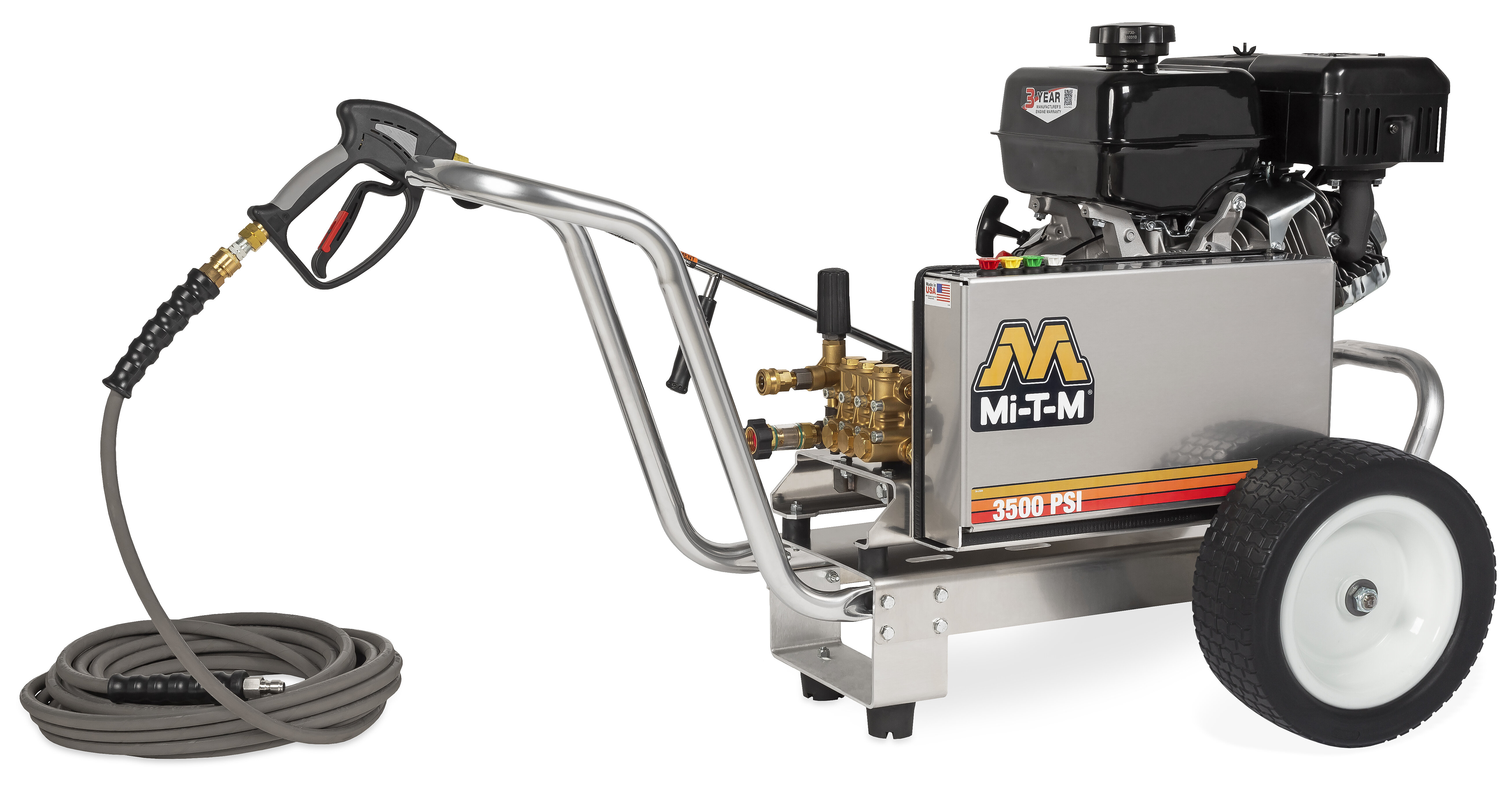

CBA Aluminum Series Gasoline Belt Drive - CBA-3504-1MAM

CBA-3504-1MAM

This belt-driven, aluminum series is built with longevity in mind. It’s the contractor choice for prepping surfaces and blasting away much and grime.

Pump
Equipped with Mi-T-M Pressure Relief Start · Forged brass manifold · Thermal relief valve · Water filter with clear sleeve for screen inspection

Frame
Corrosion-resistant aluminum frame · Patented vibration isolation plate · Two-piece belt guard · 13-inch flat-free tires

Unit Includes
Quick connect nozzles – 0°, 15°, 25° and 40° · 50-foot x 3/8-inch non-marking hose · Insulated trigger gun

Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult factory.

Specifications

  • PSI

    3500

  • GPM

    3.7

  • Displacement/ Engine

    420cc Mi-T-M OHV

  • Pump

    AR

  • Unloader

    Mi-T-M, Adjustable Pressure

  • Lance

    48 in.

Weights & Dimensions

  • Net Weight

    165.00 lbs.

  • Shipping Weight

    215.00 lbs.

  • Length

    47.00 in.

  • Width

    27.50 in.

  • Height

    28.50 in.

Options

  • CX-0082 External Bypass System

    Allows more water into the system to protect from heat build-up

Warranty Information
  • 1 Year Mi-T-M Unloader
  • 3 Year Mi-T-M Engine
  • 7 Year AR Pump
Additional Info
  • pressure relief start
