CBA Aluminum Series Gasoline Belt Drive - CBA-4004-1MCM

Get Started

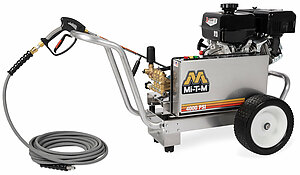

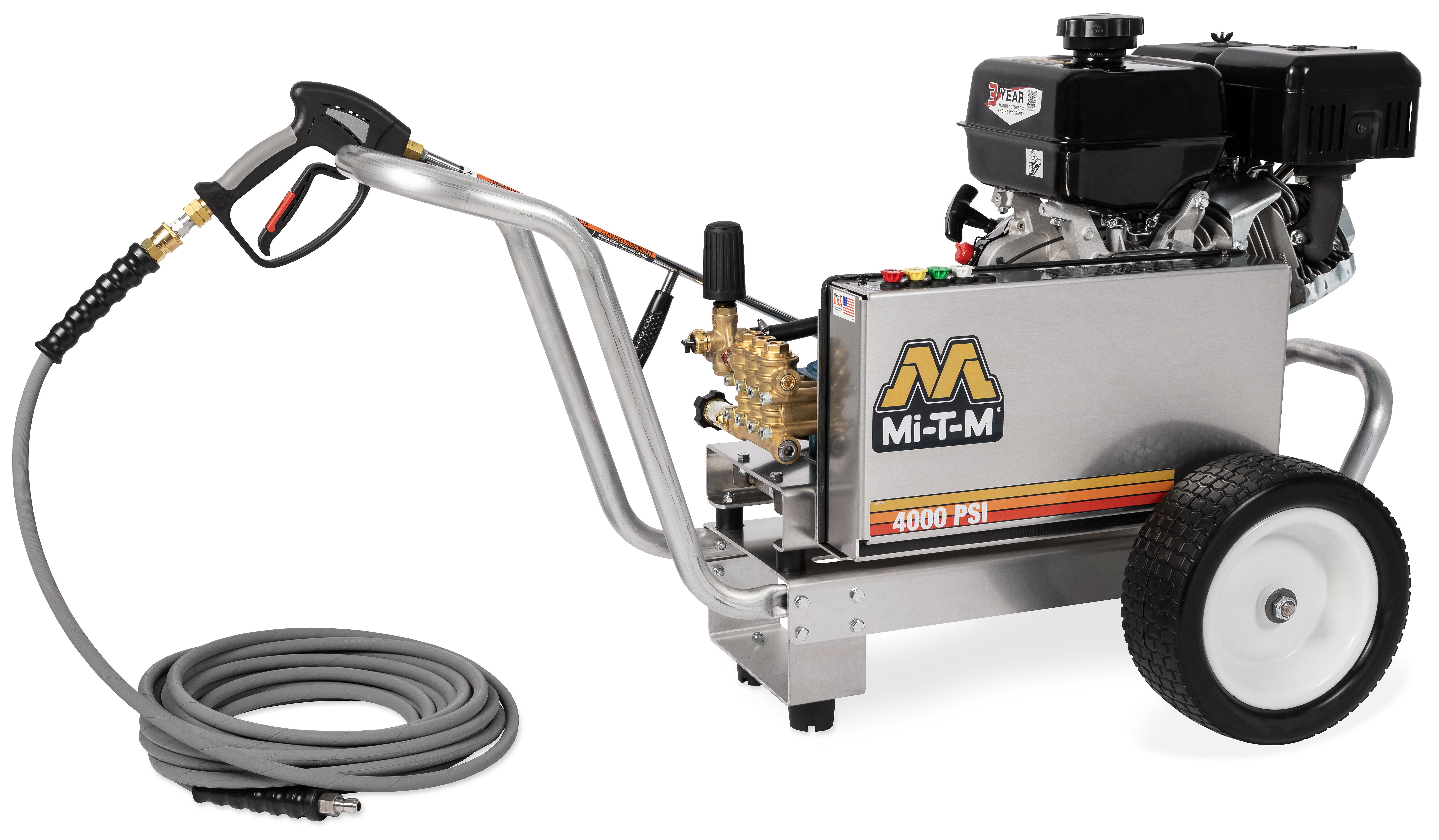

CBA-4004-1MCM

The industrial and lighweight CBA Series pressure washer delivers the cleaning power needed for tough grime and peeling paint.

Pump
Equipped with Mi-T-M Pressure Relief Start · External bypass system protects from heat build-up · Forged brass manifold · Thermal relief valve · Water filter with clear sleeve for screen inspection

Frame
Corrosion-resistant aluminum frame · Patented vibration isolation plate · Two-piece belt guard · 13-inch flat-free tires

Unit Includes
Quick connect nozzles – 0°, 15°, 25° and 40° · 50-foot x 3/8-inch non-marking hose · Insulated trigger gun

Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult factory.

Specifications

PSI

4000
GPM

3.7
Displacement/ Engine

420cc Mi-T-M OHV
Pump

CAT
Unloader

Adjustable Pressure
Lance

48 in.

Weights & Dimensions

Net Weight

156.00 lbs.
Shipping Weight

206.00 lbs.
Length

47.00 in.
Width

27.50 in.
Height

28.50 in.

Options - must be ordered with unit and cannot be added later.

No options

Warranty Information

3 Year Mi-T-M Engine
7 Year CAT Pump
