CW Premium Series Electric Belt Drive - CW-3005-0ME3

Limited Warranties:
  • 1 Year Electric Motor
  • 10 Year General Pump

Download Catalog »

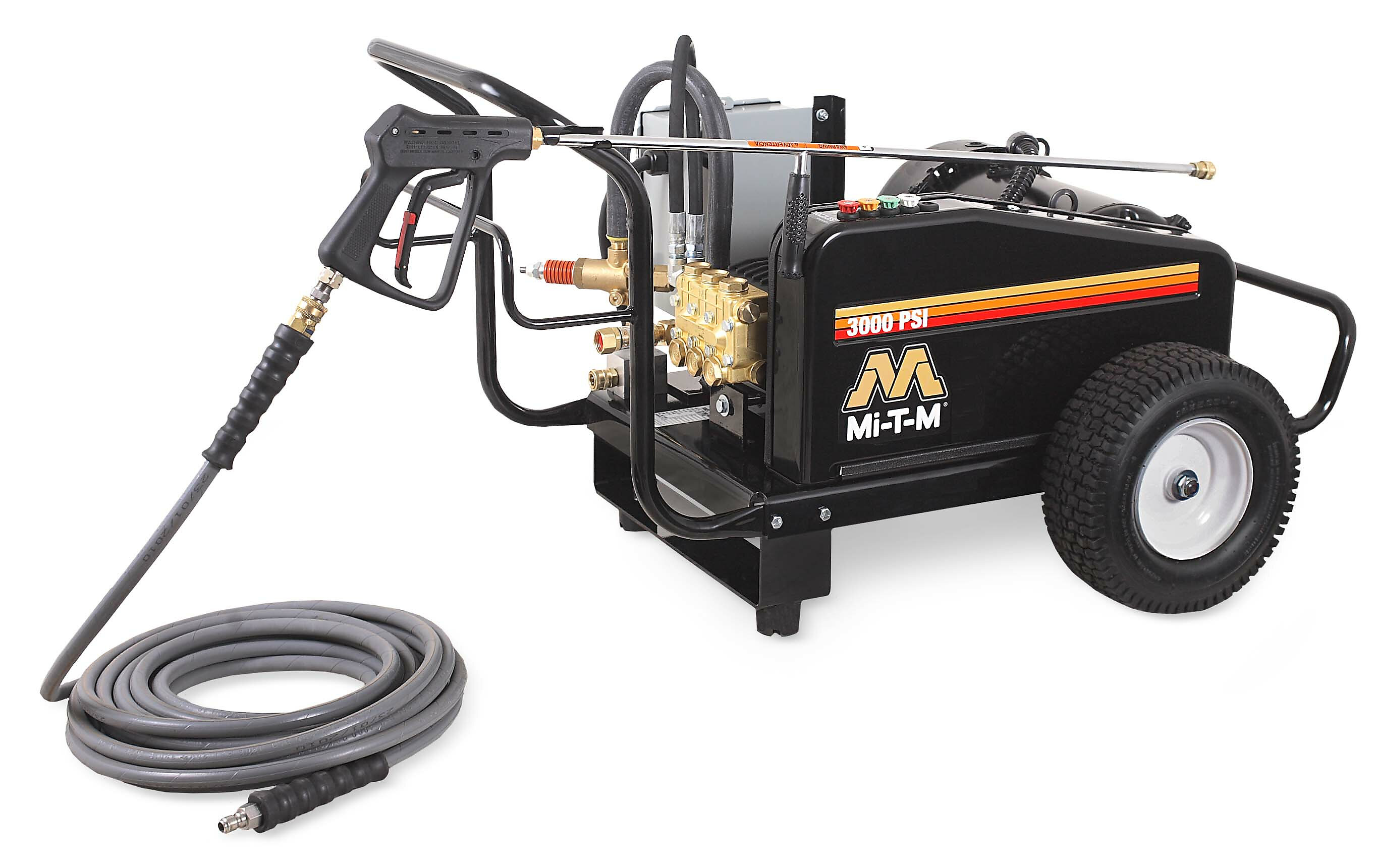

CW-3005-0ME3

Perfect for cleaning heavily soiled equipment located inside commercial facilities. Use it to clean grimy floors and concrete walls of garages and service shops. It is even a great tool to keep indoor pools free from dirt, mold and mildew.

Pump: External bypass system allows more water into the system to protect from heat build-up · Forged brass manifold · Thermal relief valve · Water filter with clear sleeve for screen inspection

Motor: Totally enclosed fan-cooled electric motor with thermal overload protection · 10-foot power cord

Frame: Powder coated steel frame and base plate with 1-1/4-inch tube handles · Convenient gun/wand holder and hose wrap · Totally enclosed belt guard · 13-inch flat-free tires

Unit Includes: Quick connect nozzles - 0º, 15º, 25º and 40º · 50-foot x 3/8-inch non-marking high pressure hose with quick connects · Professional-grade insulated trigger gun with safety lock-off · 36-inch lance

460V motors available as options

View Product Sheet »

Find a Dealer »

Specifications

  • PSI

    3000

  • GPM

    4.8

  • Horsepower/Motor

    10.0 HP, 230V, 3Ø, 26.0A -OR- 10.0 HP, 460V, 3Ø, 13.0A

  • Pump

    General

  • Mi-T-M No.

    3-0202

  • Unloader

    Factory Preset

  • Plug Type

    NEMA 15-50P

Weights & Dimensions

  • Net Weight

    376.00 lbs.

  • Shipping Weight

    450.00 lbs.

  • Length

    45.50 in.

  • Width

    32.50 in.

  • Height

    30.00 in.

Options

  • CX-0005 Insulated Dual Lance

    Has both a high and low pressure top that allows you to switch to the low pressure chemical injector without having to change tips - 36-inch

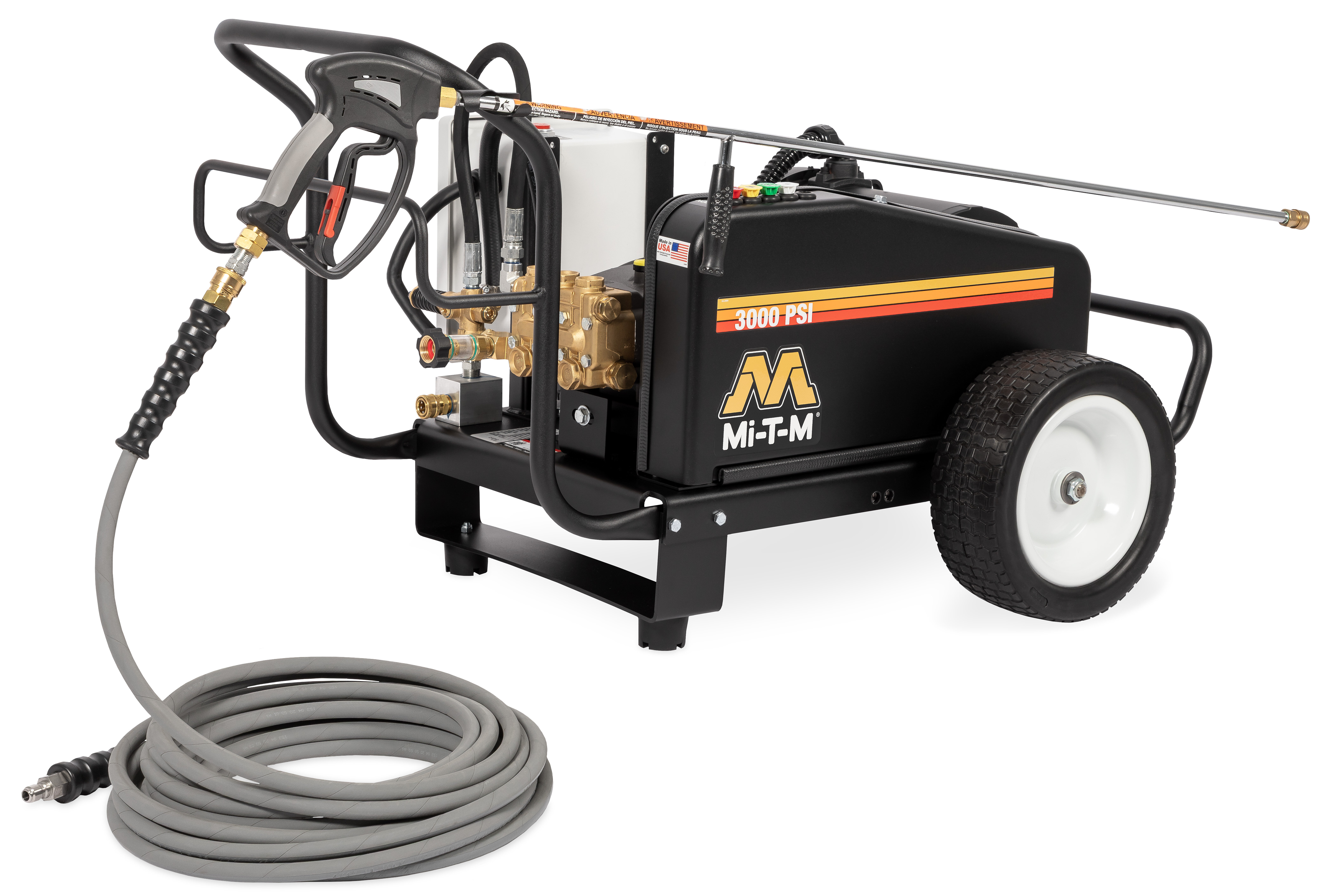

  • CX-0062 460V on 10.0 HP, 3 Phase Models

    For when you have 460V of power available

  • CX-0094 Stationary Option

    This option will remove the existing tall handle and wheels, which will be replaced with a short handle and rubber feet for stationary applications
