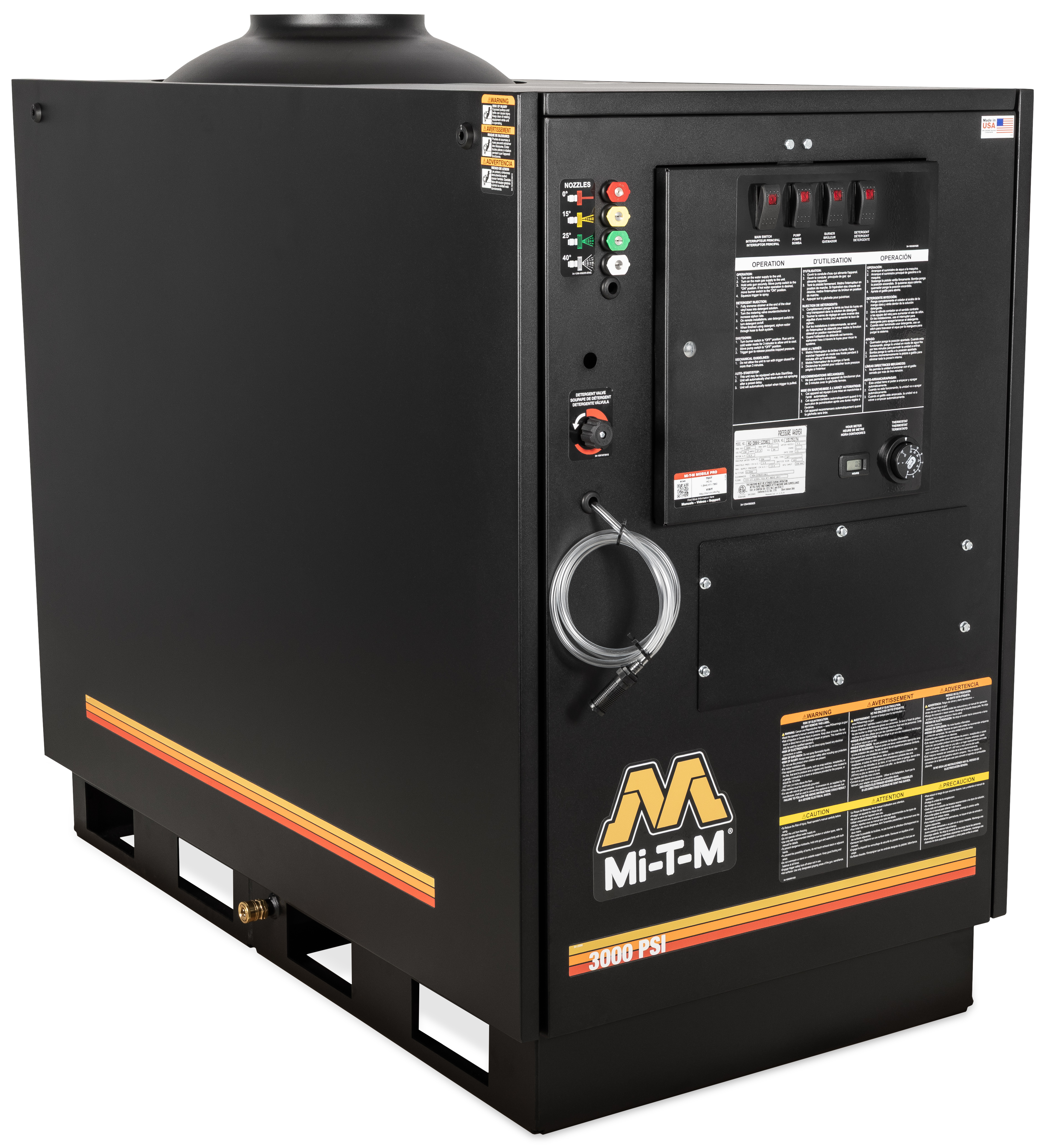

HG Series Natural Gas/LP Belt Drive - HG-3004-3208G1

Get Started

HG-3004-3208G1

With its steady fuel source, the stationary HG Series is the ultimate choice for wash bays, delivering performance every time.

Pump
Belt drive triplex piston pump with ceramic plungers · Factory preset unloader

Motor
Open drip-proof motor electric motor

Frame
Powder coated steel frame

Components
1⁄2-inch schedule 80 pipe coil heat exchanger · Polyethylene float tank with inlet filter screen, 4-gallon · Natural gas or LP gas-fired (vapor only) natural draft with aspirating-type burner, 10-inch stack · 10-inch draft diverter · Thermal relief valve · Electronic ignition with standing pilot light · Pressure switch and over-pressure safety controls · 24V control system · Programmable logic controller (PLC) with auto start/stop and timed lockout · Adjustable high pressure detergent injector · Adjustable thermostat · Hour meter

Miscellaneous
Temperature rise 150°F/66°C above ambient, maximum 200°F (250°F/121°C outlet temperature with steam option)

Unit Includes
Quick connect nozzles – 0°, 15°, 25°, 40° and fixed detergent nozzle · 50-foot x 3⁄8-inch steel wire-braided high pressure hose with quick connects · Adjustable pressure insulated dual lance with trigger gun

Specifications

PSI

3000
GPM

3.9
Horsepower/Motor

8.0 HP, 208V, 3Ø, 23.0A
Pump

General
Natural Gas BTU Per Hour

338,000
LP Gas BTU Per Hour

326,000
Draft Diverter

10 in.

Weights & Dimensions

Net Weight

758.00 lbs.
Shipping Weight

878.00 lbs.
Length

56.50 in.
Width

29.00 in.
Height

49.75 in.

Options - must be ordered with unit and cannot be added later.

HX-0105 Liquid Propane - Vapor Only

Converts natural gas pressure washer to operate on liquid propane (vapor only)
HX-0121 250°F Steam Upgrade

Steam option adjusts unloader valve counter-clockwise increasing outlet temperature to 250°F while lowering system pressure
HX-0305 Additional Programmable Logic Controller Remotes, Plastic Control Box

Adds additional remotes to PLC
HX-0306 Additional Programmable Logic Controller Remotes, Metal Control Box

Adds additional remotes to PLC
HX-0314 First Remote, plastic control box

Includes junction box and (1) control box with pump, heat and detergent switches
HX-0315 First Remote, metal control box

Includes junction box and (1) control box with pump, heat and detergent switches
HX-0316 Wireless Remote

Includes receiver and (1) transmitter with pump, heat and detergent buttons
HX-0317 Additional Wireless Remote

Includes pump, heat and detergent buttons
HX-0321 Detergent Solenoid

Adds solenoid and switch to easily control the chemical injection

Warranty Information

1 Year Electric Motor
3 Year Coil
7 Year General Pump
