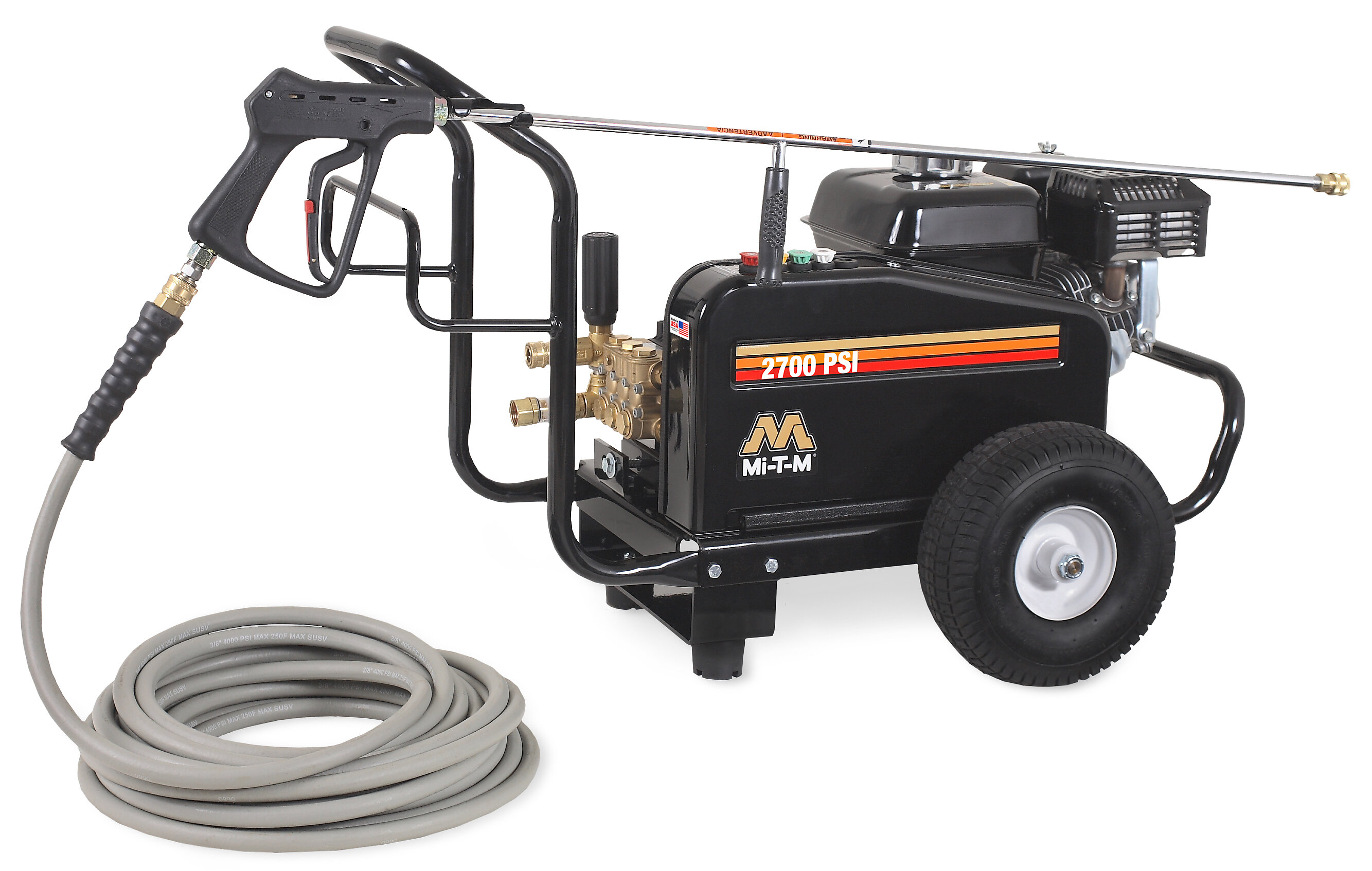

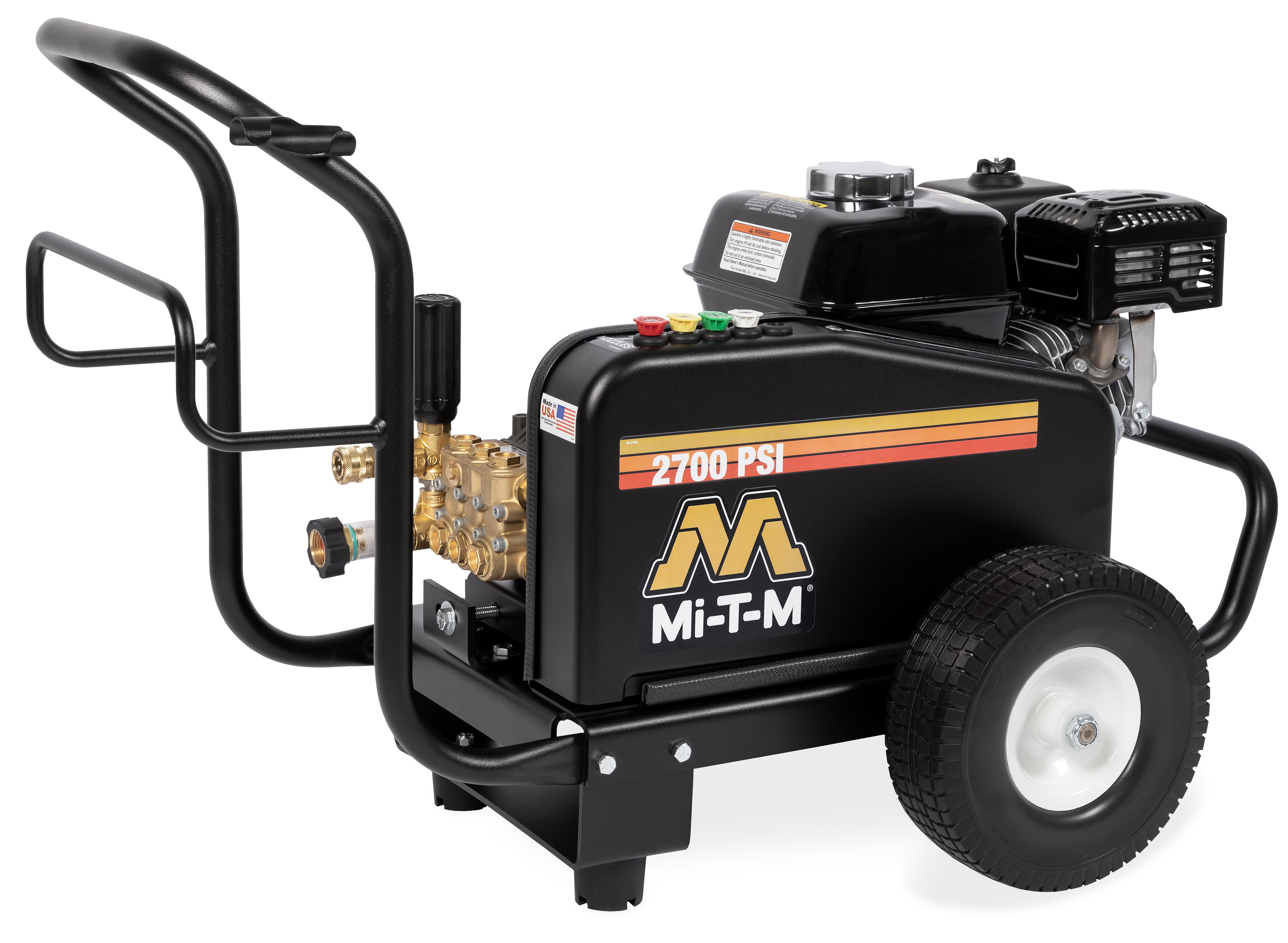

JCW Series Gasoline Belt Drive - JCW-2703-0MHB

expand-icon

Resources

Find A Local Dealer

Get Started

JCW-2703-0MHB

The JCW Series is an ideal choice for tough cleaning jobs. Effectively strip coatings, clean large properties and remove build-up on ships.

Pump
Forged brass manifold · Thermal relief valve · Water filter with clear sleeve for screen inspection

Frame
Powder coated steel frame · Two-piece belt guard · 10-inch flat-free tires

Unit Includes
Quick connect nozzles - 0º, 15º, 25º and 40º · 50-foot x 3/8-inch non-marking hose · Insulated trigger gun

Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult factory.

Specifications

  • PSI

    2700

  • GPM

    2.4

  • Displacement/ Engine

    196cc Honda GX200 OHV

  • Pump

    AR

  • Unloader

    Adjustable Pressure

  • Lance

    36 in.

Weights & Dimensions

  • Net Weight

    121.00 lbs.

  • Shipping Weight

    171.00 lbs.

  • Length

    37.50 in.

  • Width

    22.00 in.

  • Height

    25.00 in.

Options - must be ordered with unit and cannot be added later.

  • CX-0005 Insulated Dual Lance

    Has both a high and low pressure top that allows you to switch to the low pressure chemical injector without having to change tips - 36-inch

Warranty Information
  • 1 Year Mi-T-M Unloader
  • 3 Year Honda Engine
  • 7 Year AR Pump
