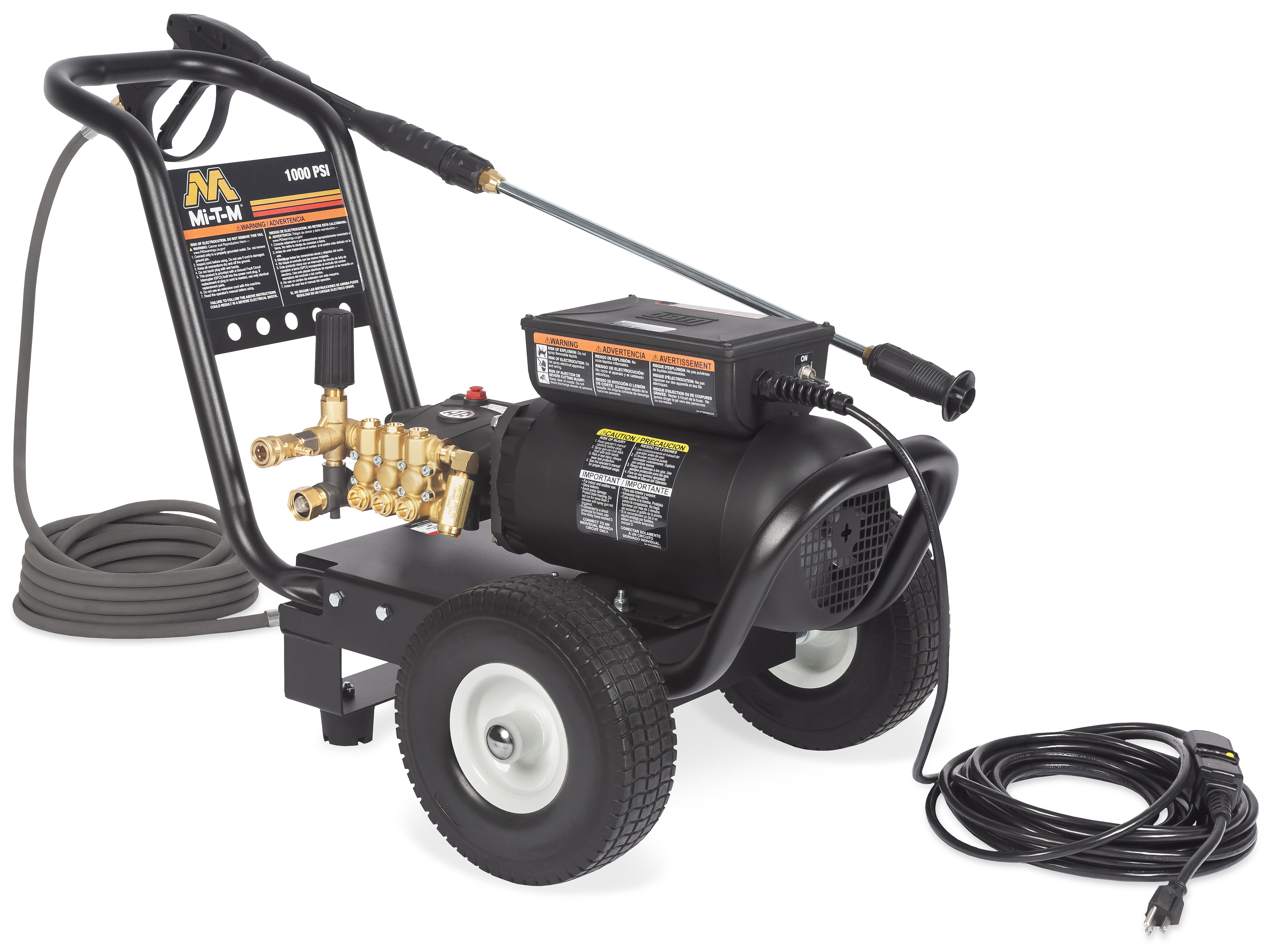

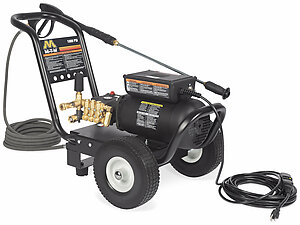

JP Series Electric Direct Drive - JP-1002-4ME1

CSA Certified C&US
Limited Warranties:
  • 1 Year Electric Motor
  • 7 Year General Pump

Download Catalog »

View Product Sheet »

JP-1002-4ME1

This is the perfect unit for food and beverage processing facilities where fumes and smoke are prohibited. Tackle indoor jobs along with those tough outdoor cleaning tasks.

Pump: Adjustable pressure unloader · Forged brass manifold · Thermal and safety relief valves · Built-in low pressure detergent injector

Motor: Totally enclosed fan-cooled electric motor · 35-foot power cord with GFCI

Frame: Powder coated steel frame · 10-inch flat-free tires

Unit Includes: Variable high/low pressure nozzle · 25-foot x 3/8-inch non-marking hose · 36-inch lance with insulated trigger gun

Pump accepts incoming water up to 175°F.

Find a Dealer »

Specifications

  • PSI

    1000

  • GPM

    2.0

  • Displacement/ Engine

    1.5 HP, 120V, 1Ø, 13.2A

  • Pump

    General

  • Plug Type

    NEMA 5-15P

Weights & Dimensions

  • Net Weight

    90.00 lbs.

  • Shipping Weight

    120.00 lbs.

  • Length

    37.00 in.

  • Width

    21.00 in.

  • Height

    24.50 in.

Options

  • CX-0005 Insulated Dual Lance

    Has both a high and low pressure top that allows you to switch to the low pressure chemical injector without having to change tips - 36-inch

  • CX-0030 High Pressure Hose - 50-Foot

    For when you need extra hose for added mobility
