Biological Recycle Systems/Clarifier - BIO-15Series

Get Started

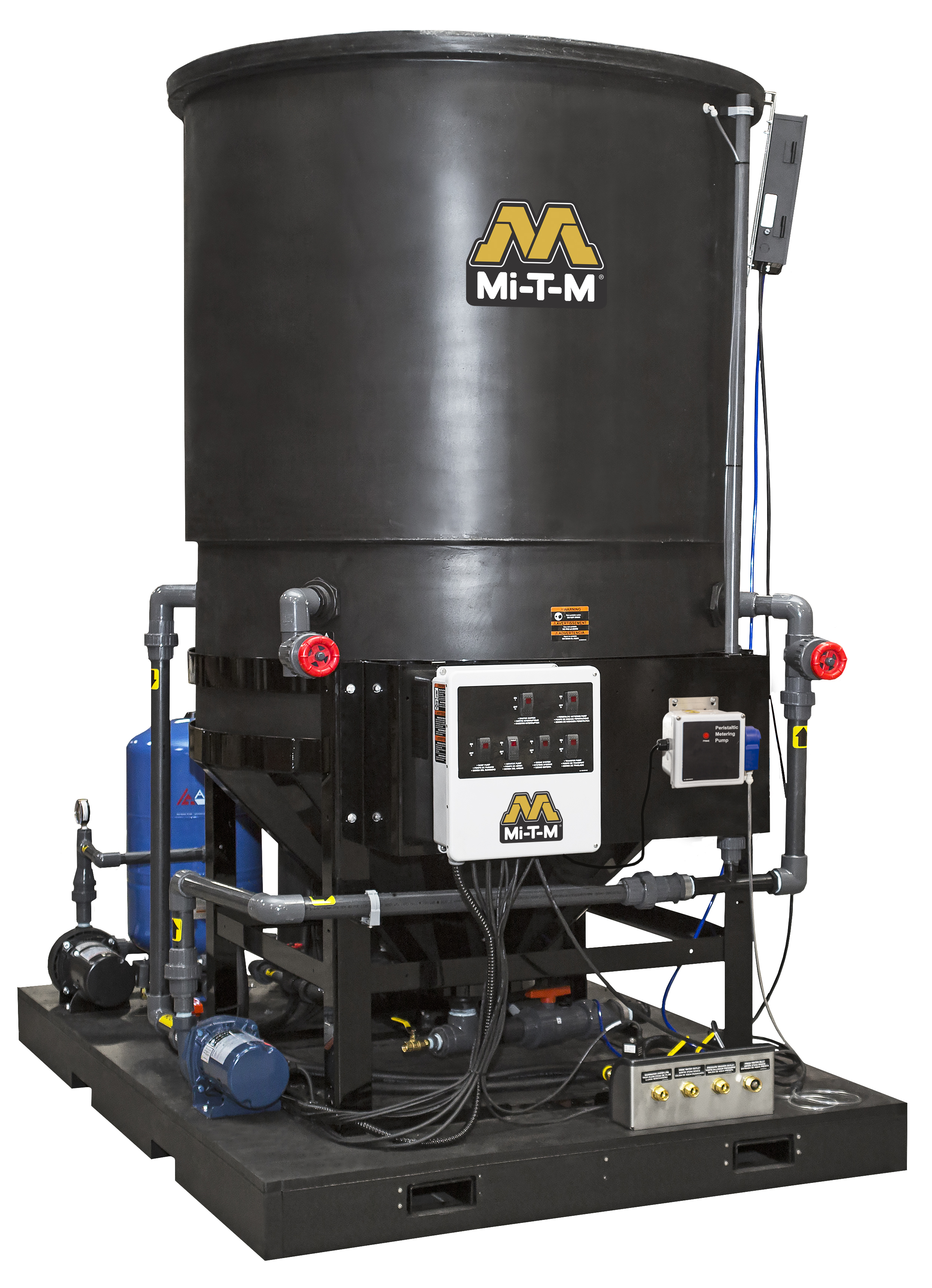

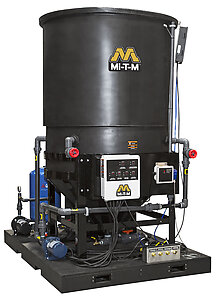

BIO-15Series

A clarifier allows for greater settling and removal of accumulated solids in wastewater before treatment. This pretreatment makes it easier for water treatment systems to operate effectively.

Features
·Cone-shaped tank
·Quality recycled wash water without common odor problems
·Easy operation and maintenance
·1.0 HP sump pump
·Heavy-duty, corrosive-resistant and UV-resistant poly-skid
·Peristaltic pump is self-priming
·Mazzei® venturi air injection system
·ETL listed NEMA-4 rated corrosion-proof control panel

Recommend Applications
·Golf Courses – Designed to handle equipment wash water for various golf course configurations
·Solid-Waste Haulers – Able to effectively treat vehicle wash water, like that from garbage trucks
·Food Processing Plants – Pre-treatment of a broad range of food processing wastewater before discharging
·Petro-Chemical – Capable of treating waste streams containing multiple, organic particulate matter
·Anything with organic compounds in waste water

Models Available
BIO-15-0M10 – 230V, 1Ø, 20.0A; 3/4 HP transfer pump
BIO-15-0M30 – 230V, 3Ø, 15.0A; 1/2 HP transfer pump

Includes sump pump and peristaltic pump
230/208/460V 3Ø available on all models as options

The Importance of a Proper Pit System
Once equipment is washed, the untreated wash water flows into your pit system. A proper pit system for your application is the first step in proper wash water treatment and a critical element in any wash water recycle system.

Contact Mi-T-M Corporation or your local distributor to determine the pit system configuration that works best for your application.

Specifications

Flow Rate

0-15 GPM
Clarifier Tank

600 gallon
Media

1,300 sq. ft.
Sump Pump (Included)

1.0 HP

Weights & Dimensions

Net Weight

0.00 lbs.
Shipping Weight

1250.00 lbs.
Length

60.00 in.
Width

96.00 in.
Height

110.00 in.

Options - must be ordered with unit and cannot be added later.

WX-0014 Pinch Valve Assembly

Pinch valve, bladder style (used on cone bottom tanks), 2 inch, 230V, single phase
WX-0119 High Solids Media

Allows for debris to travel easily through media with vertical design
WX-0128 Hour Meter

Displays the number of hours unit has been in operation
WX-0020 Ozone

For specialized applications where sterilization of the waste stream is desired
WX-0024 Recirculation Option for Floats

If used along with the WX-0042, water will recirculate from product tank back to pit
WX-0030 BIO Sump Pump Swap

Customized option, converts surface-mount sump pump to submersible sump pump, single phase, 230V
WX-0041 165-Gallon Water Tank Upgrade

For when a larger volume of usable water is needed
WX-0042 Product Tank Overflow

Allows water to cycle back to collection pit
WX-0043 460V, 3 Phase

Upgrades 230V model to operate at 460V, 3 phase
WX-0044 Ozone

For specialized applications where sterilization of the waste stream is desired
WX-0045 Ozone

For specialized applications where sterilization of the waste stream is desired
WX-0101 BIO Sump Pump Swap

Customized option, converts surface-mount sump pump to submersible sump pump, 3 phase, 230V
