Biological Recycle Systems - BIO-25Series

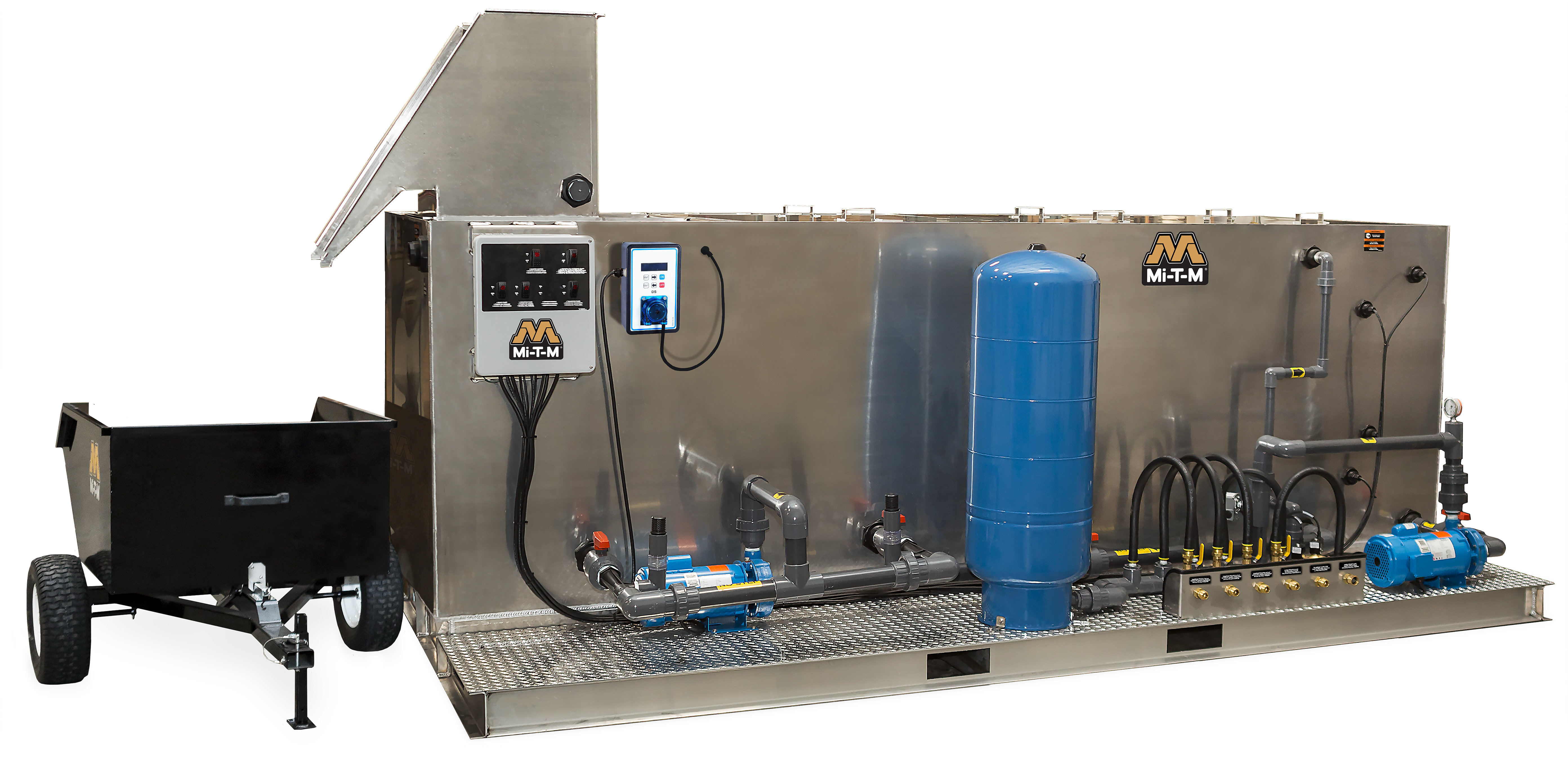

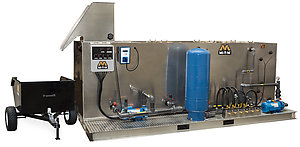

BIO-25Series
The popular Mi-T-M BIO Series System utilizes fixed-film bacteria in conjunction with coalescing media to treat waste water. A variety of tank sizes and flow rates are used to create retention time to treat the wastewater. Oxygen is added to the bacteria in the waste stream by venturi injection system.
This system offers models available for either recycle or discharge operations. Each unit offers added benefits, such as:
· Low maintenance
· Low operating costs
· Simple equipment operation
· CSA approved control panel which meets the requirements of the US and Canadian standards for an Industrial Control Panel
The BIO Series is perfect for the following applications:
· Rental yards
· Heavy equipment dealers
· Trucking facilities
· Truck rental fleets
· Diesel repair facilities
· Forklift washing operations
· Aircraft maintenance and restoration
· Shipyards
· Municipalities/State DOTs
· Oil fields
· Engine rebuilders and manufacturers
· Military bases
· Golf courses
· and many more...
Components:
· CSA listed NEMA-4 rated corrosion-proof control panel for safe and reliable operation
· Hose connectors are clearly marked and designed for easy accessibility and quick installation
· Mazzei® venturi air injection system, 55-0126, sustains beneficial aerobic microbes while preventing bacteria from turning odorous and anaerobic
· Aeration pump, 3-0397
· Transfer pump, 3-0399
· Pressure manifold set-up option for BIO-20R-0M11 and BIO-20R-1M11 is standard
· Durable "True Union" valve
· Slope bottom tanks are standard on all BIO-20 models
Models Available:
BIO-25R-0M10 230V, 1Ø, 25.0A Marine Aluminum
BIO-25R-1M10 230V, 1Ø, 25.0A Stainless-steel
BIO-25R-0M30 230V, 3Ø, 15.0A Marine Aluminum
BIO-25R-1M30 230V, 3Ø, 15.0A Stainless-steel
R - Designates Recycle
230/208/460V 3-phase available on all models as options
Power requirements reflect pump change
The Importance of a Proper Pit System:
Once equipment is washed, the untreated wash water flows into your pit system. A proper pit system for your application is the first step in proper wash water treatment and a critical element in any wash water recycle system.
Consult Mi-T-M Corporation or your local distributor to determine the pit system configuration that works best for your application.
Specifications
-
Flow Rate
0-25 GPM
-
Biological Media
3,456 sq. ft.
-
Tank Capacity
1,434 gallon
-
Sump Pump (Included)
1/2 HP
-
Transfer Pump
2.0 HP
Weights & Dimensions
-
Net Weight
0.00 lbs.
-
Shipping Weight
1680.00 lbs.
-
Length
144.00 in.
-
Width
72.00 in.
-
Height
48.00 in.
Options
-
WX-0014 Pinch Valve Assembly
Pinch valve, bladder style (used on cone bottom tanks), 2 inch, 230VAC, single phase
-
WX-0037 pH Control System, 230V
For when pH adjustment is needed
-
WX-0039 Pinch Valve Assembly
Pinch valve, bladder style (used on cone bottom tanks), 2 inch, 120VAC
-
WX-0102 pH Control System, 120V
For when pH adjustment is needed
-
WX-0128 Hour Meter
Displays the number of hours unit has been in operation
-
WX-0133 Coagulation System
Used in heavy solids applications; helps dirt and solids settle for easy removal
-
WX-0134 Dual pH Control System, 230V
For when pH adjustment is needed, will adjust pH levels up and down, has dual set points
-
WX-0135 Dual pH Control System, 115V
For when pH adjustment is needed, will adjust pH levels up and down, has dual set points
-
WX-0005 Ozone
For specialized applications where sterilization of the waste stream is desired
-
WX-0029 550-Gallon Product Tank Expansion
For when larger volume of usable water is needed
-
WX-0073 Magnetic Drive Pump
230V, 1Ø, seal-less pump
-
WX-0074 Magnetic Drive Pump
208-230V, 3Ø, seal-less pump
-
WX-0075 Magnetic Drive Pump
460V, 3Ø, seal-less pump
-
WX-0100 BIO Sump Pump Swap
Customized option, converts submersible pump to surface-mount sump pump
-
WX-0121 High Solids Media
Allows for debris to travel easily through media with vertical design
-
WX-0126 Epoxy-Lined Tank
High solid polyamide epoxy-lined tank is chemical and corrosion-resistant
-
WX-0136 Heater, 230V
Promotes heat for microbes, powered from main box, additional 20A required
-
WX-0137 Heater, 460V
Promotes heat for microbes, powered from main box, additional 20A required
-
WX-0142 Auxiliary Poly Tank
Allows you to treat the BIO water with ozone in a separate poly tank
