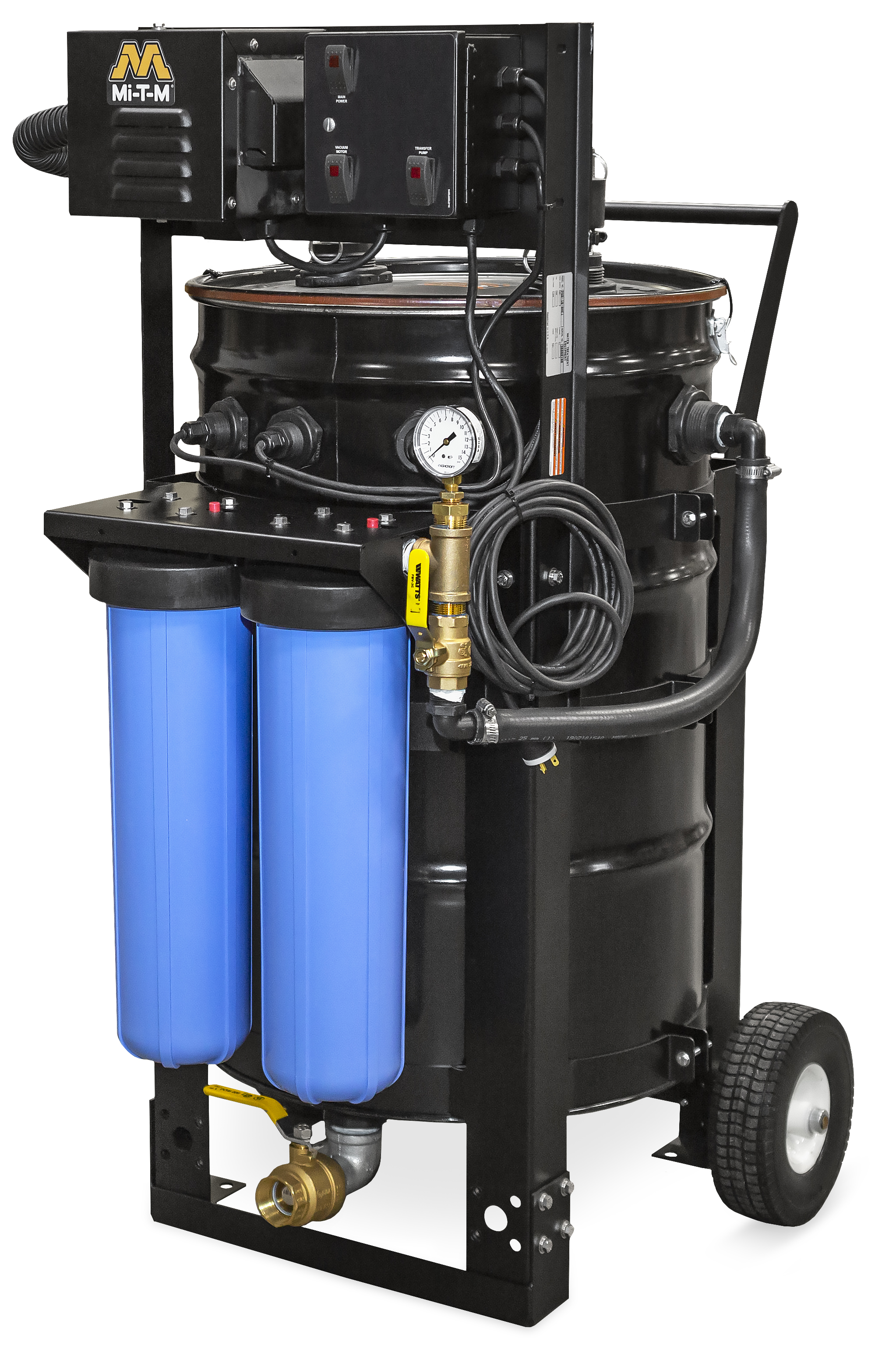

Recovery & Recycle System - PWR-10-0ME1
PWR-10-0ME1
The Portable Water Recovery Series is the ideal tool for remote cleaning applications. It efficiently captures water for reuse or for proper disposal. The compact design makes it an easy addition to trailer packages.
The PWR Series allows for wash water to be captured on the jobsite by using the included 20-foot berm to stop water from flowing down a drain or away from your area. The suction head draws wash water into a holding chamber where a pump forces the water through an optional 10-micron bag filter before returning it to the holding tank for reuse or for proper disposal.
Features:
·1/3 HP transfer pump
·Oil absorbing boom/sock
·Vacuum tank drain
·3-stage vacuum motor
·Stainless-steel suction head
·Cam lock fittings
·50-foot vacuum hose
·55-gallon tank capacity
·20-foot water berm
Consult Factory for more information on our Trailer Packages.
Specifications
-
Vacuum Motor
3-stage, 1500W, 12.5A full load
-
Tank Capacity
55 gallon
-
Filter Pump
1/3 HP, 8.0A, 120VAC, 60Hz, 1Ø
-
Water Berm
6 in. x 20 ft.
-
Plug Type
NEMA 5-20P
Weights & Dimensions
-
Net Weight
290.00 lbs.
-
Shipping Weight
340.00 lbs.
-
Length
48.00 in.
-
Width
42.00 in.
-
Height
60.00 in.
Options
-
TX-0010 Adjustable Trailer Coupler Hitch
Replaces the standard 2-inch ball hitch with a 2-inch trailer hitch with pin-style fastener trailer coupler and hinged ball socket
-
TX-0019 Lunette Ring Hitch
Replaces the standard 2-inch ball hitch with an 3-inch integrated lunette ring for use with pintle hitches
-
WX-0106 Wheel Kit
Includes two flat-free tires with powder coated steel frame and handle
-
WX-0108 Single Bag Filter
Uses 10-micron bag #19-0249, includes 5 filter bags
-
WX-0109 Dual Filters
Uses 10-micron bag #19-0249 and 50-micron bag #19-0267, includes 5 filter bags
-
WX-0129 Dual Filters
For PWR-10-0ME1 trailer-mount package
