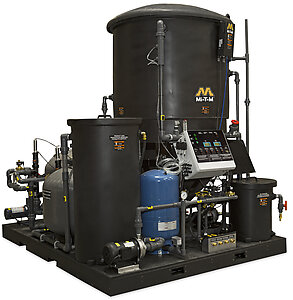

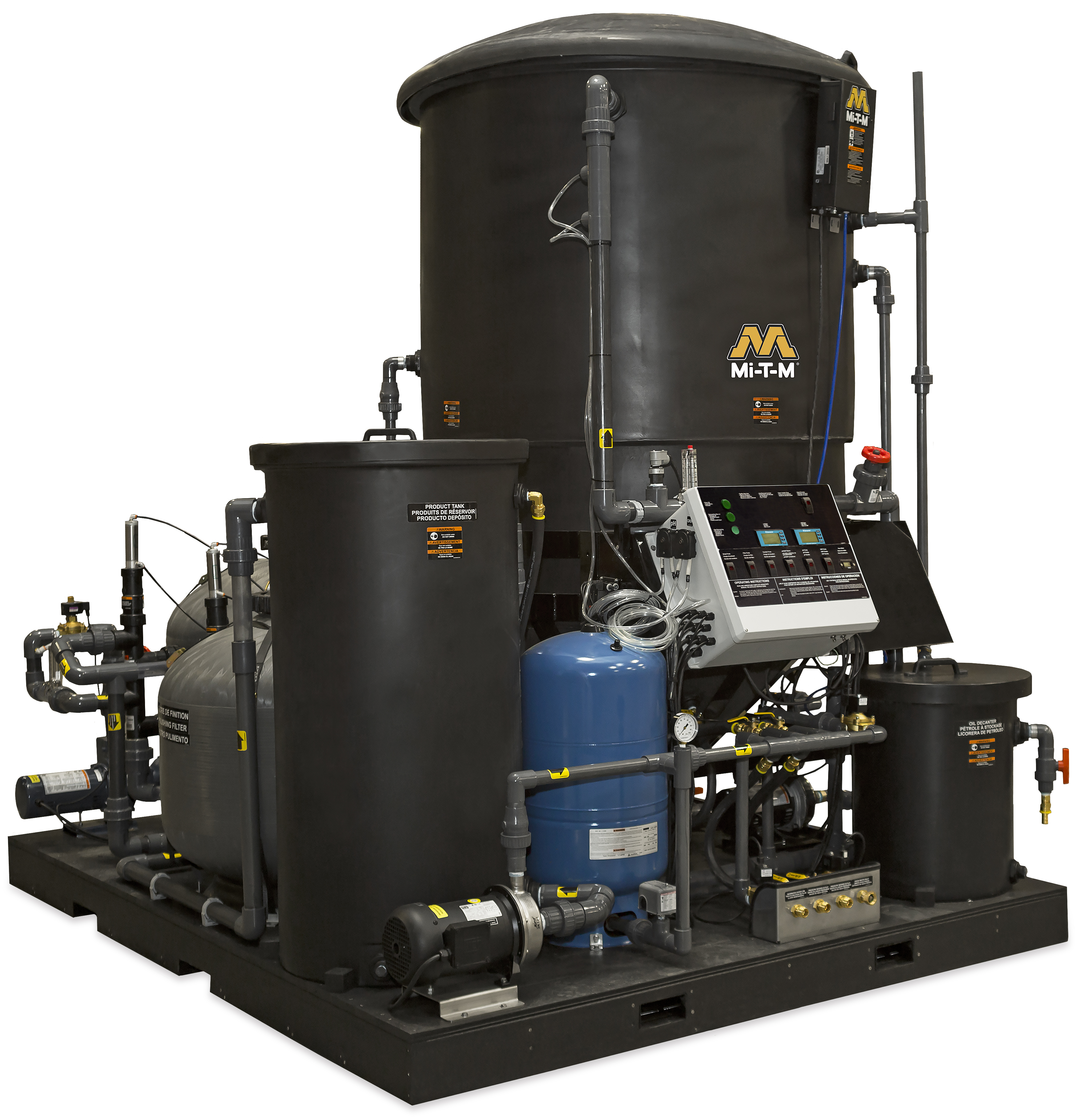

Clarifier Wash Water Recycle Systems - WCP-30Series

WCP-30Series

Designed to remove free hydrocarbons and filter water, these systems come standard with pH and ORP injection and are corrosion-resistant when utilizing polymer tanks and recycled plastic skids.

Features
·Cone-shaped tank
·Heavy-duty, corrosive-resistant base
·Corona discharge ozone system
·Clarifier oil/water/solids separator
·Oil decanter
·Sludge box
·Multi-media, reusable polyester and activated carbon filters
·ORP/pH controller
·1.0 HP surface-mount sump pump
·ETL listed NEMA-4 rated corrosion-proof control panel

Recommended Applications
·Rental Yards
·Golf Courses
·Heavy Equipment Dealers
·Trucking Facilities
·Military Bases
·Truck Rental Fleets
·Diesel Repair Facilities
·Forklift Washing Operations
·Aircraft Maintenance and Restoration
·Shipyards
·Municipalities/State DOTs
·Oil Fields
·Engine Rebuilders and Manufacturers

Models Available
WCP-30AB-0M10* – 230V, 1Ø, 35.0A
WCP-30AB-0M30* – 230V, 3Ø, 20.0A

*Auto-backwash models (air required 60 to 100-PSI)
230/208/460V 3Ø available as option

The Importance of a Proper Pit System
Once equipment is washed, the untreated wash water flows into your pit system. A proper pit system for your application is the first step in proper wash water treatment and a critical element in any wash water recycle system.

Consult Mi-T-M Corporation or your local distributor to determine the pit system configuration that works best for your application.

Specifications

  • Flow Rate

    0-30 GPM

  • Clarifier Tank

    600 gallon

  • Media Filter

    900 lb.

  • Carbon Filter

    165 lb.

  • Oil Coalescing Area

    425 sq. ft.

  • Ozone Generator

    12 grams/day

Weights & Dimensions

  • Net Weight

    0.00 lbs.

  • Shipping Weight

    3470.00 lbs.

  • Length

    84.00 in.

  • Width

    108.00 in.

  • Height

    108.00 in.

Options

  • WX-0133 Coagulation System

    Used in heavy solids applications to help dirt and solids settle for easy removal

  • WX-0056 460V, 3Ø

    Upgrades 230V models to operate at 460V
