Advanced Wash Water Recycle Systems - WLP-20Series

Get Started

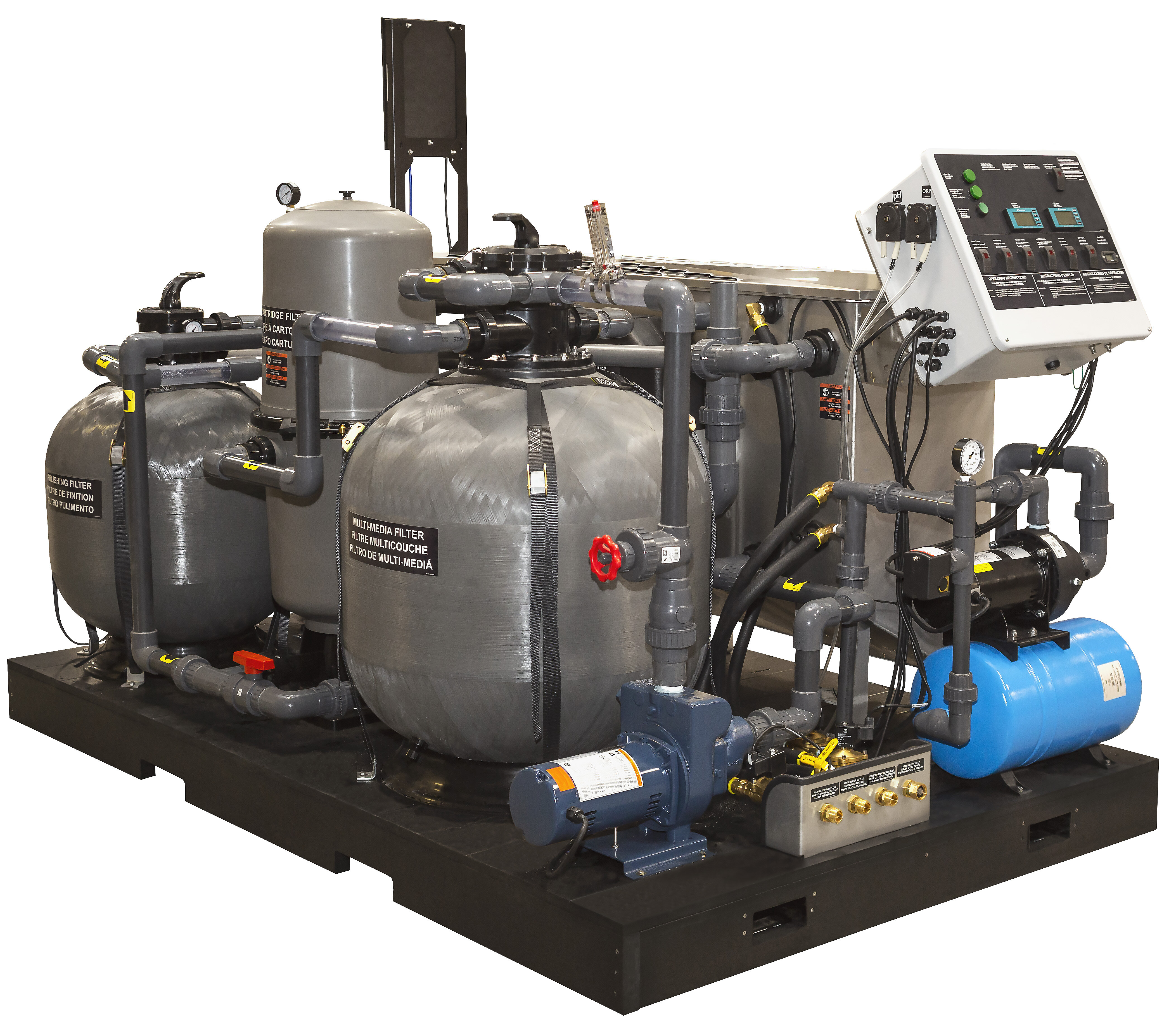

WLP-20Series

These recycle systems are designed to remove free hydrocarbons and filter water to be sent back through a pressure washer. They feature pH and ORP injection and are designed with corrosion-resistance tanks.

Features
·Poly skid is non-corrosive
·Easily accessible pumps
·Corona discharge ozone system
·Advanced oil/water/solids separator
·ORP/pH controller
·Customized multi-media filter
·Activated carbon filter
·1.0 HP surface-mount sump pump
·ETL listed NEMA-4 rated corrosion-proof control panel

Recommended Applications
·Rental Yards
·Heavy Equipment Dealers
·Trucking Facilities
·Military Bases
·Truck Rental Fleets
·Diesel Repair Facilities
·Forklift Washing Operations
·Aircraft Maintenance and Restoration
·Shipyards
·Municipalities/State DOTs
·Oil Fields
·Engine Rebuilders and Manufacturers

Models Available
WLP-20-0M10 – 230V, 1Ø, 25.0A; 400 sq. ft. cartridge filter
WLP-20AB-0M11* – 230V, 1Ø, 25.0A
WLP-20AB-0M31* – 230V, 3Ø, 13.0A

*Auto-backwash models (air required 60 to 100-PSI)
230V/208V/460V 3Ø available on all models as options

The Importance of a Proper Pit System
Once equipment is washed, the untreated wash water flows into your pit system. A proper pit system for your application is the first step in proper wash water treatment and a critical element in any wash water recycle system.

Consult Mi-T-M Corporation or your local distributor to determine the pit system configuration that works best for your application.

Specifications

Flow Rate

0-20 GPM
Media Filter (Custom Mix)

550 lb.
Carbon Filter (Degassed)

110 lb.

Weights & Dimensions

Net Weight

0.00 lbs.
Shipping Weight

2435.00 lbs.
Length

96.00 in.
Width

60.00 in.
Height

52.00 in.

Options - must be ordered with unit and cannot be added later.

WX-0054 460V, 3 Phase

Upgrades 230V models to operate at 460V
