Quality pretreatment of wash water is important for all water treament systems. The WTA Series pretreatment system can be added to any water treatment system for effective removal of solids prior to recycling. Optional custom biological units are available within the BIO Series family to satisfy specific applications needs. These set-ups offer your choice of 300-gallon or 600-gallon tanks. Please contact Mi-T-M Corporation or your local distributor for more information about available BIO Series combinations or how we can customize a water treatment system to meet your requirements.
Pretreatment Systems – 300-Gallons
WTA-300-0M10
1 - 12-0072; includes 300-gallon tank with manual dump valve
1 - 20-1282A01; includes tank stand
WTA-300CL-0M10 (Single Phase)
WTA-300CL-0M30 (Three Phase)
1 - 12-0072; includes 300-gallon tank with manual dump valve
1 - 20-1282A01; includes tank stand
1 - 3-0328; includes sump pump
WTA-300EXP-0M10 (Single Phase)
WTA-300EXP-0M30 (Three Phase)
1 - 12-0072; includes 300-gallon tank with manual dump valve
1 - 20-1282A01; includes tank stand
2 - 21-0203; includes coalescing main media frame
2 - 21-0204; includes coalescing side media frame
1 - 3-0321; includes aeration pump, ¾ HP, 3Ø
1 - 3-0331; includes aeration pump, ¾ HP, 1Ø
1 - 55-0033; includes Mazzei venturi injector
WTA-300SA-0M10 (Single Phase)
WTA-300SA-0M30 (Three Phase)
1 - 12-0072; includes 300-gallon tank with manual dump valve
1 - 20-1282A01; includes tank stand
2 - 21-0203; includes coalescing main media frame
2 - 21-0204; includes coalescing side media frame
1 - 3-0443; includes peristaltic pump
1 - 3-0321; includes aeration pump, ¾ HP, 3Ø
1 - 3-0331; includes aeration pump, ¾ HP, 1Ø
1 - 55-0033; includes Mazzei venturi injector
Pretreatment Systems – 600-Gallons
WTA-600-0M11
1 - 12-0069; includes 600-gallon tank with manual dump valve
1 - 20-1287A01; includes tank stand
WTA-600CL-0M11 (Single Phase)
WTA-600CL-0M31 (Three Phase)
1 - 12-0069; includes 600-gallon tank with manual dump valve
1 - 20-1287A01; includes tank stand
1 - 3-0328; includes sump Pump
WTA-600EXP-0M11 (Single Phase)
WTA-600EXP-0M31 (Three Phase)
1 - 12-0069; includes 600-gallon tank with manual dump valve
1 - 20-1287A01; includes tank stand
2 - 21-0203; includes coalescing main media frame
2 - 21-0204; includes coalescing side media frame
1 - 3-0321; includes aeration pump, ¾ HP, 3Ø
1 - 3-0331; includes aeration pump, ¾ HP, 1Ø
1 - 55-0033; includes mazzei venturi injector
WTA-600SA-0M11 (Single Phase)
WTA-600SA-0M31 (Three Phase)
1 - 12-0069; includes 600-gallon tank with manual dump valve
1 - 20-1287A01; includes tank stand
2 - 21-0203; includes coalescing main media frame
2 - 21-0204; includes coalescing side media frame
1 - 3-0443; includes peristaltic pump
1 - 3-0321; includes aeration pump, ¾ HP, 3Ø
1 - 3-0331; includes aeration pump, ¾ HP, 1Ø
1 - 55-0033; includes mazzei venturi injector
Leg extensions are available upon request, consult dealer
Consult dealer for availability of more options and accessories
Specifications
Weights & Dimensions
-
Net Weight
0.00 lbs.
-
Shipping Weight
0.00 lbs.
-
Length
0.00 in.
-
Width
0.00 in.
-
Height
0.00 in.
Options
-
WX-0011 Electric Dump Valve
230V, 1-1/2 inch, auto dump option
-
WX-0012 Electric Dump Valve
115V, 1-1/2 inch, auto dump option
-
WX-0013 Pinch Valve Assembly
Pinch valve, bladder style (used on cone bottom tanks), 1-1/2 inch, 230VAC, single phase
-
WX-0014 Pinch Valve Assembly
Pinch valve, bladder style (used on cone bottom tanks), 2 inch, 230VAC, single phase
-
WX-0037 pH Control System, 230V
For when pH adjustment is needed
-
WX-0038 Pinch Valve Assembly
Pinch valve, bladder style (used on cone bottom tanks), 1-1/2 inch, 120VAC
-
WX-0039 Pinch Valve Assembly
Pinch valve, bladder style (used on cone bottom tanks), 2 inch, 120VAC
-
WX-0102 pH Control System, 120V
For when pH adjustment is needed
-
WX-0115 Floating Media
Ideal for tanks with small openings, greater gestation
-
WX-0116 Floating Media
Ideal for tanks with small openings, greater gestation
-
WX-0118 High Solids Media
Allows for debris to travel easily through media with vertical design
-
WX-0119 High Solids Media
Allows for debris to travel easily through media with vertical design
-
WX-0128 Hour Meter
Displays the number of hours unit has been in operation
-

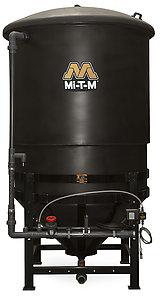

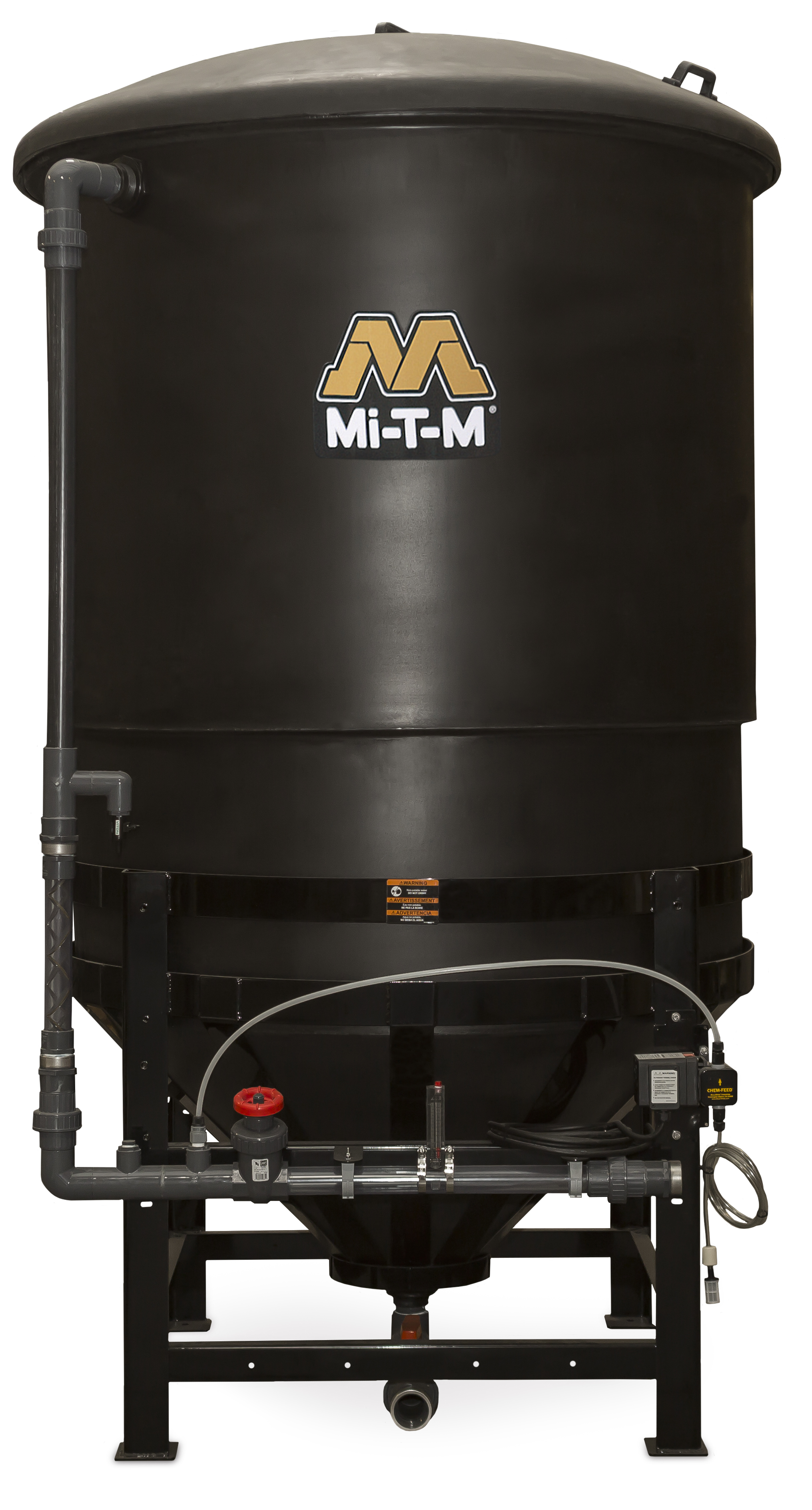

WX-0133 Coagulation System
Used in heavy solids applications to help dirt and solids settle for easy removal
-
WX-0134 Dual pH Control System, 230V
Two set points where pH can be adjusted
-
WX-0135 Dual pH Control System, 115V
Two set points where pH can be adjusted
-
WX-0140 Heater, 230V
Promotes heat for microbes, powered from main box, additional 20A required
-
WX-0141 Heater, 460V
Promotes heat for microbes, powered from main box, additional 20A required
