14000-Watt Gasoline Generator - GEN-14000-1MHE

Limited Warranties:
  • 2 Year Alternator
  • 3 Year Honda Engine

Download Catalog »

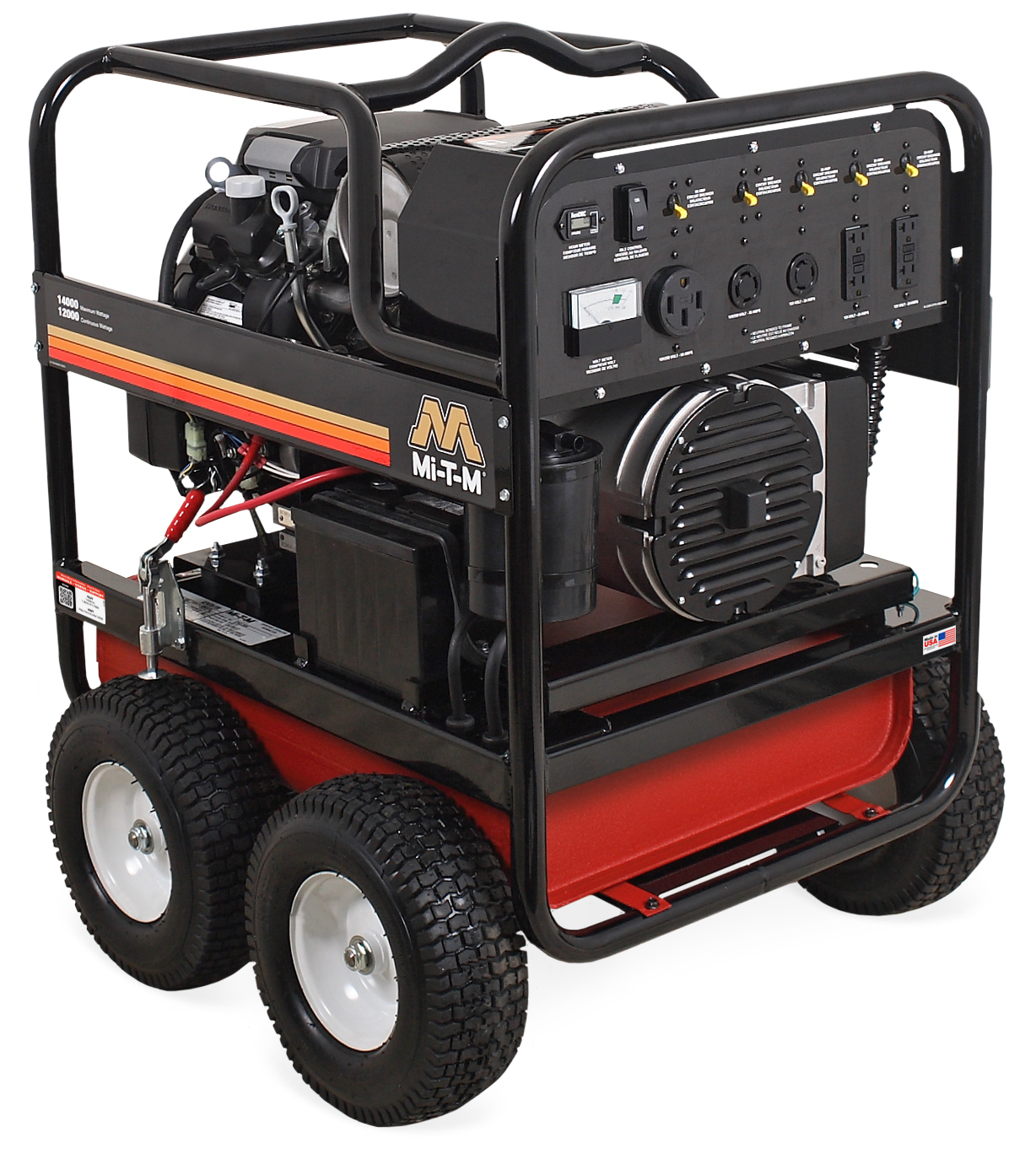

GEN-14000-1MHE

The Mi-T-M 14000-watt generator is a virtual power plant. Built for industrial applications with the portability to move from one job to the next, this generator will never let you down. It's the perfect tool for professional contractors.

Alternator: Total harmonic distortion (THD) less than 5% · 100% copper windings

Frame: Reinforced 1 1/4-inch powder coated steel tube frame · 13-inch flat-free tires

Components: Easy-access and protected control panel with magnetic circuit breakers and GFCI-protected receptacles · Large low tone muffler · Easy-to-read fuel gauge · Idle control · Voltmeter/hour meter · Heavy-duty industrial air cleaner

Miscellaneous: USDA/USFS-approved spark arrestors

Noise level tested at seven meters (75% load). Rating represents minimum noise level rating.

View Product Sheet »

Find a Dealer »

Specifications

  • Max. AC Output

    14000 watts

  • Rated AC Output

    12000 watts

  • Displacement/ Engine

    688cc Honda GX630 OHV with Electric Start - Battery Included

  • Alternator

    Brushless 120V/240V, 60Hz

  • Max. Amps (120V/240V)

    116.7/58.3

  • Cont. Amps (120V/240V)

    100.0/50.0

  • Receptacles

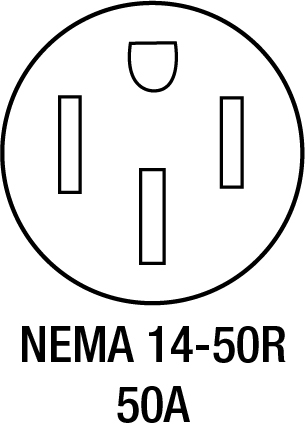

    (2) 120V, 20A GFCI Duplex; (1) 120V, 30A Twist Lock; (1) 120V/240V, 30A Twist Lock; (1) 120V/240V, 50A

  • Circuit Breakers

    (2) 20A Toggle Circuit Breakers, Single Pole; (1) 30A Toggle Circuit Breaker, Single Pole; (1) 30A Toggle Circuit Breaker, Double Pole; (1) 50A Toggle Circuit Breaker, Double Pole

  • Rated Speed

    3600 RPM

  • Decibel Rating

    77.5

  • Fuel Capacity

    13.2 gallon

  • Run Time (At Full Load)

    8.0 hours

Weights & Dimensions

  • Net Weight

    508.00 lbs.

  • Shipping Weight

    568.00 lbs.

  • Length

    31.50 in.

  • Width

    30.50 in.

  • Height

    37.50 in.

Options

  • GX-0003 Skid Feet

    For stationary applications

  • GX-0005 50-Amp Twist Lock Receptacle

    Marine receptacle for routine marine applications
