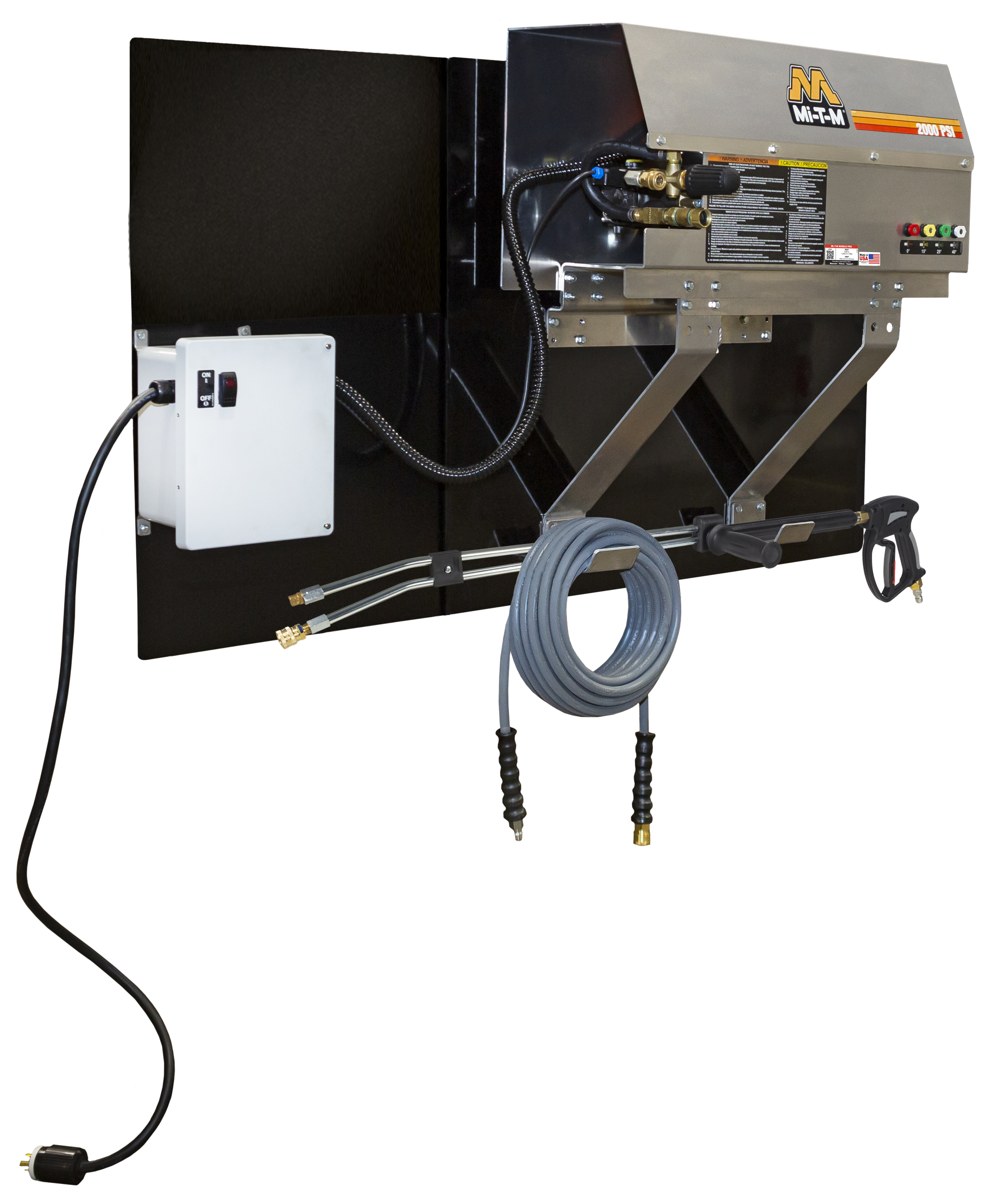

CAW Aluminum Series Electric Direct Drive Wall-Mount - CAW-2004-0ME3

Get Started

CAW-2004-0ME3

Mount this CAW Series pressure washer inside wash bays, workshops and garages to clean vehicles and equipment.

Pump
Stainless-steel and brass trapping unloader · Factory preset unloader · Forged brass manifold · Thermal relief valve · External quick connect low pressure detergent injector · Pump accepts incoming water up to 165°F

Motor
Totally enclosed fan-cooled electric motor with manual thermal overload protection · 4-foot power cord

Frame
Aluminum frame with wall-mounting brackets

Components
Time delay shutdown · Remote mounted electrical box, must be within 3 ½-feet of unit

Unit Includes
Quick connect nozzles – 0°, 15°, 25° and 40° · 50-foot x 3/8-inch non-marking hose · 36-in adjustable dual lance with insulated trigger gun

460V motor available as option.
Dimensions do not include the mounting brackets.

Specifications

PSI

2000
GPM

3.9
Horsepower/Motor

6.0 HP, 230V, 3Ø, 17.3A -OR- 6.0 HP, 460V, 3Ø, 8.64A
Pump

General
Plug Type

NEMA L15-20P

Weights & Dimensions

Net Weight

163.00 lbs.
Shipping Weight

223.00 lbs.
Length

34.00 in.
Width

17.25 in.
Height

18.00 in.

Options - must be ordered with unit and cannot be added later.

CX-0078 Remote Box

Adds plastic control box with rocker switches, can be mounted away from unit to control on/off
CX-0109 Additional Remote Box

Additional remote boxes (up to 3)
CX-0112 Auto Start/Stop

When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart
CX-0110 460V on 6.0 HP, 3 Phase Models

For when you have 460V of power available

Warranty Information

1 Year Electric Motor
7 Year General Pump

Additional Info

Chat With An Expert

Find A Service Center

Support Videos
