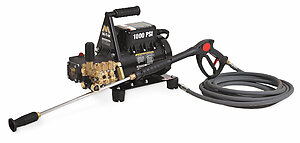

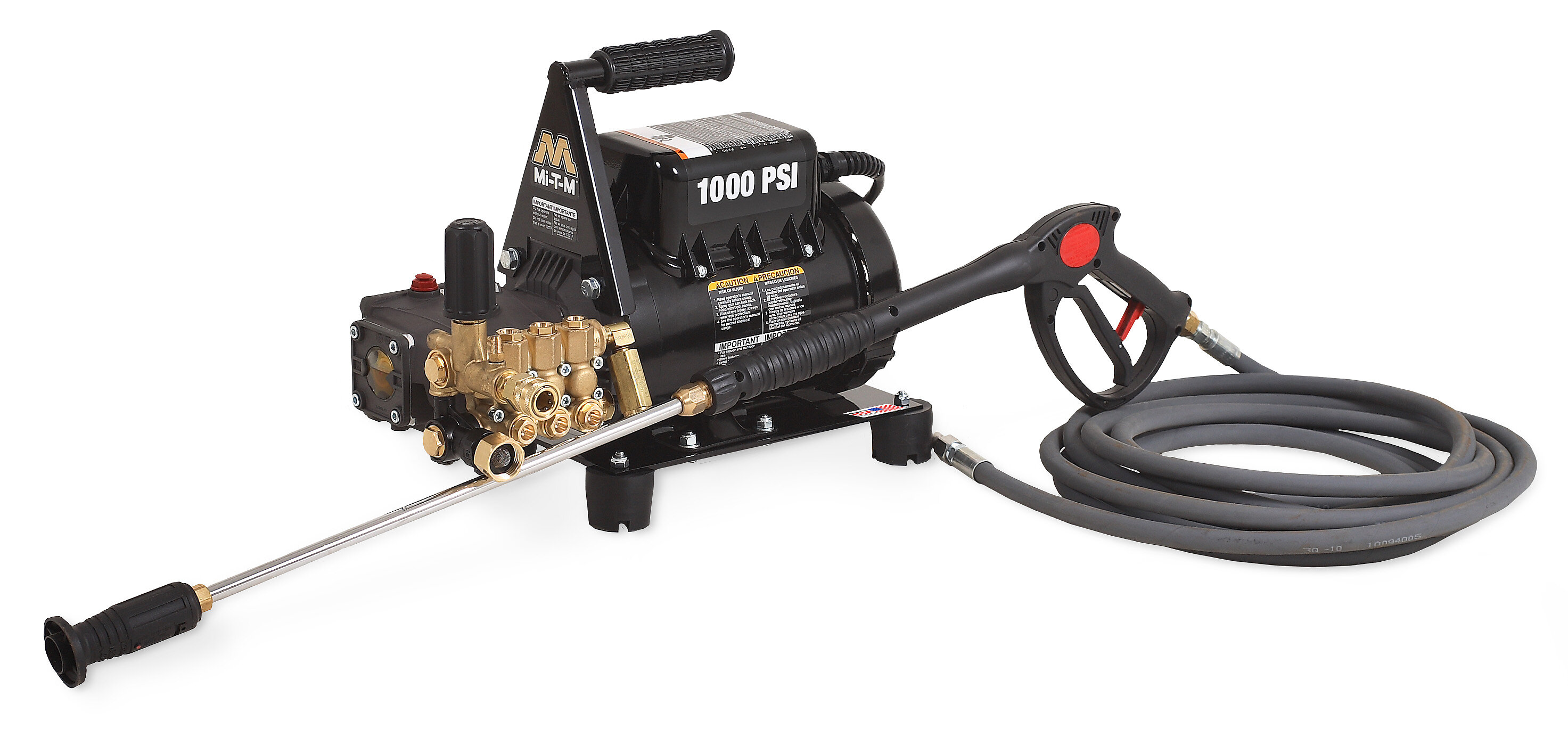

CD Series Electric Direct Drive - CD-1002-3MUH
CD-1002-3MUH
The portable hand carry design of the CD Electric Series pressure washer makes it easy to use almost anywhere.
Pump
Forged brass manifold · Thermal and safety relief valves · Built-in low pressure detergent injector
Motor
Totally enclosed fan-cooled electric motor with magnetic circuit breaker · 35-foot, 15-amp power cord with GFCI
Frame
Powder coated steel mounting plate with center balanced lift and four rubber isolators
Unit Includes
Variable high/low pressure nozzle · 25-foot x 3⁄8-inch non-marking hose · Two-piece, 36-inch lance with insulated trigger gun
Specifications
-
PSI
1000
-
GPM
2.0
-
Horsepower/Motor
1.5 HP, 120V, 1Ø, 13.2A
-
Pump
AR
-
Unloader
Adjustable Pressure
-
Plug Type
NEMA 5-15P
Weights & Dimensions
-
Net Weight
67.00 lbs.
-
Shipping Weight
78.00 lbs.
-
Length
22.00 in.
-
Width
11.50 in.
-
Height
14.50 in.
Options - must be ordered with unit and cannot be added later.
-
CX-0030 High Pressure Hose - 50-Foot
For when you need extra hose for added mobility
Warranty Information
- 1 Year Electric Motor
- 7 Year AR Pump
Additional Info
Chat With An Expert
Find A Service Center
Support Videos
