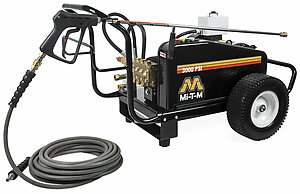

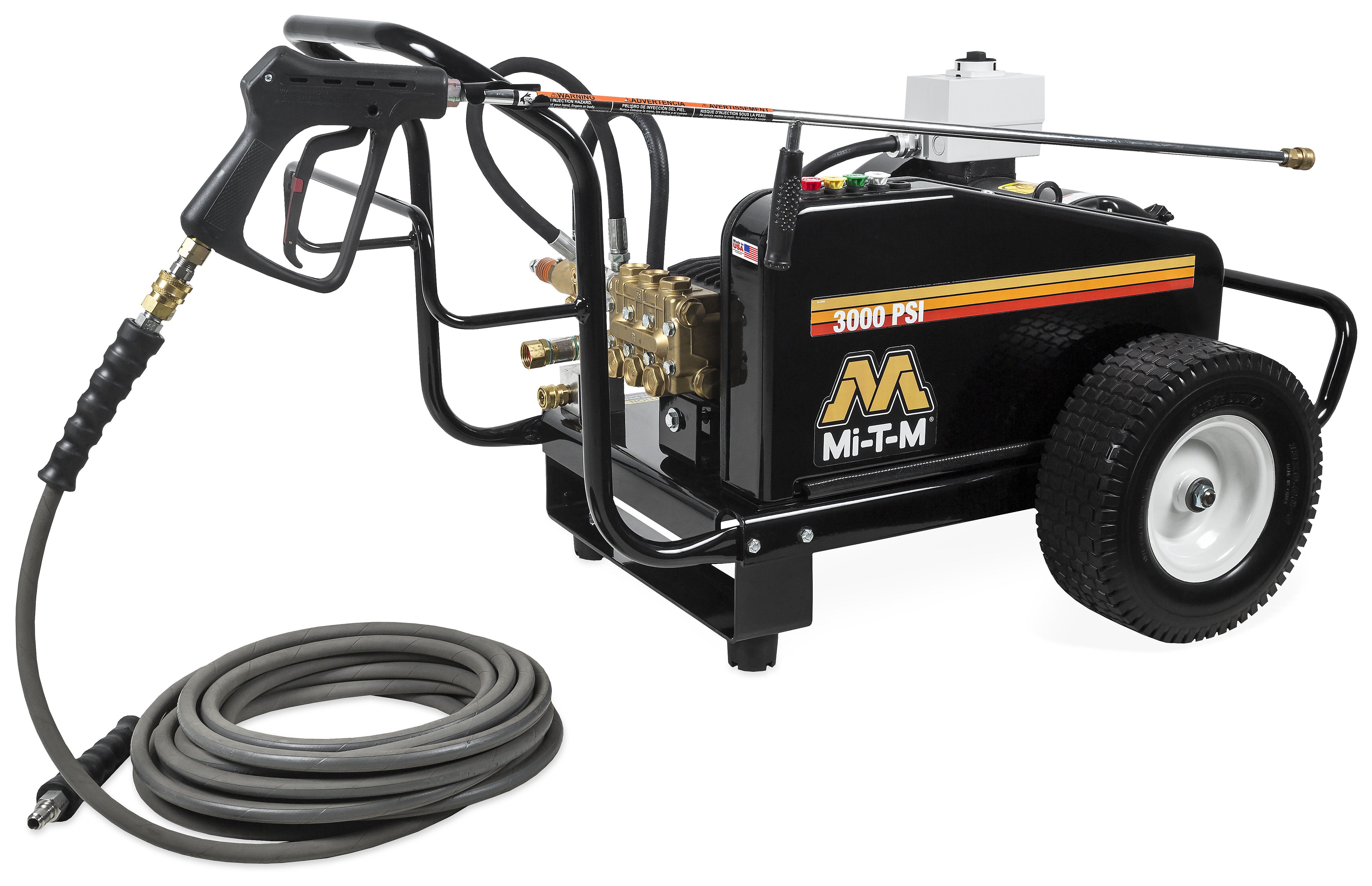

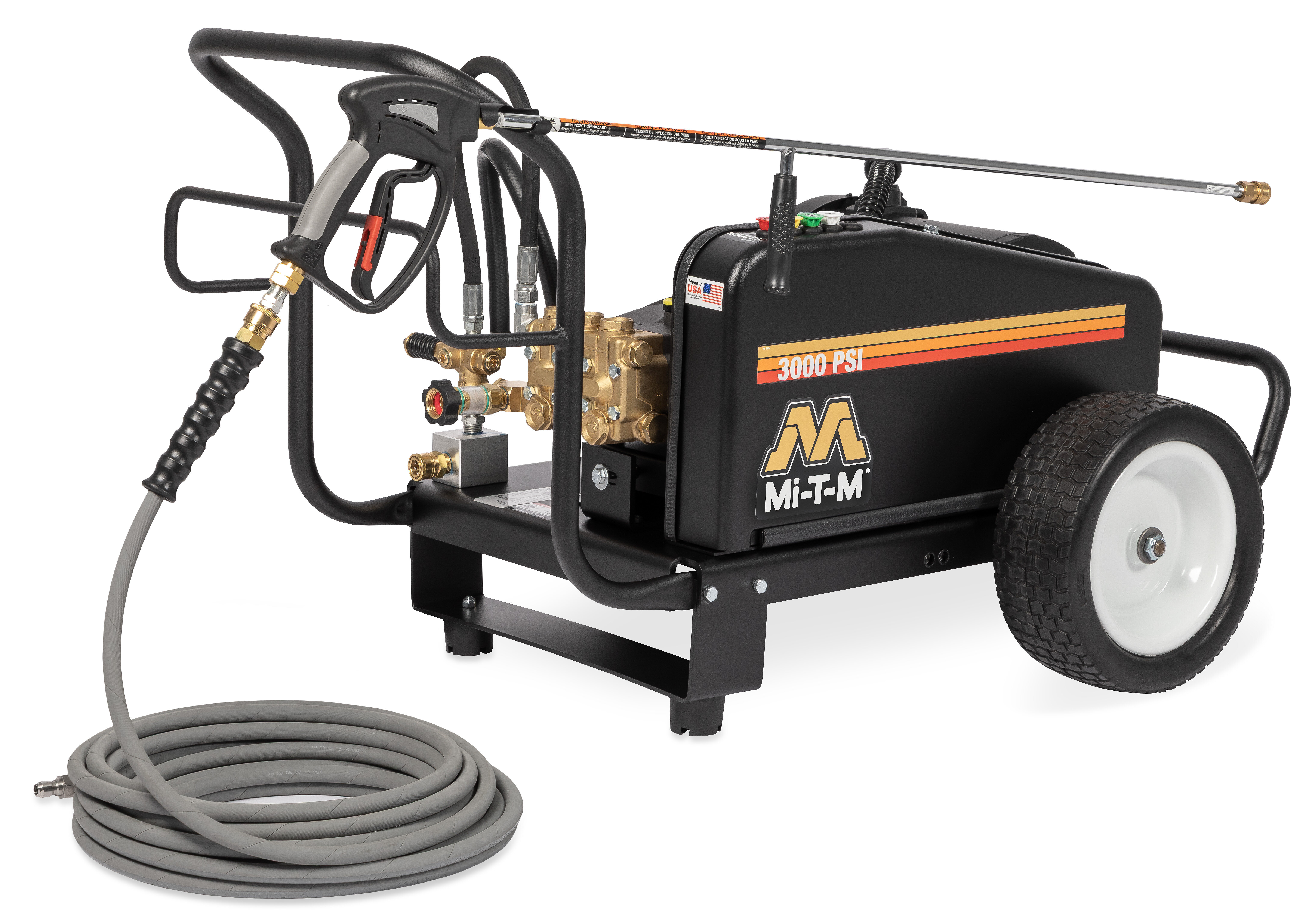

CW Premium Series Electric Belt Drive - CW-3004-4ME3

Get Started

CW-3004-4ME3

This pressure washer is perfect for cleaning equipment, floors and walls inside commercial facilities and service shops.

Pump
External bypass system protects from heat build-up · Factory preset Mi-T-M unloader · Forged brass manifold · Thermal relief valve · Water filter with clear sleeve for screen inspection

Motor
Totally enclosed fan-cooled electric motor with thermal overload protection · 10-foot power cord

Frame
Powder coated steel frame · Totally enclosed belt guard · 13-inch flat-free tires

Unit Includes
Quick connect nozzles - 0º, 15º, 25º and 40º · 50-foot x 3/8-inch non-marking hose · 36-inch lance with insulated trigger gun

460V motor available as option.

Specifications

PSI

3000
GPM

3.9
Horsepower/Motor

8.0 HP, 230V, 3Ø, 20.0A -OR- 8.0 HP, 460V, 3Ø, 10.0A
Pump

General
Plug Type

NEMA L15-30P

Weights & Dimensions

Net Weight

318.00 lbs.
Shipping Weight

384.00 lbs.
Length

46.00 in.
Width

30.00 in.
Height

30.00 in.

Options - must be ordered with unit and cannot be added later.

CX-0005 Insulated Dual Lance

Has both a high and low pressure top that allows you to switch to the low pressure chemical injector without having to change tips - 36-inch
CX-0003 460V on 8.0 HP, 3 Phase Models

For when you have 460V of power available
CX-0093 Stationary Option

This option will remove the existing tall handle and wheels, which will be replaced with a short handle and rubber feet for stationary applications

Warranty Information

1 Year Electric Motor
1 Year Mi-T-M Unloader
7 Year General Pump
