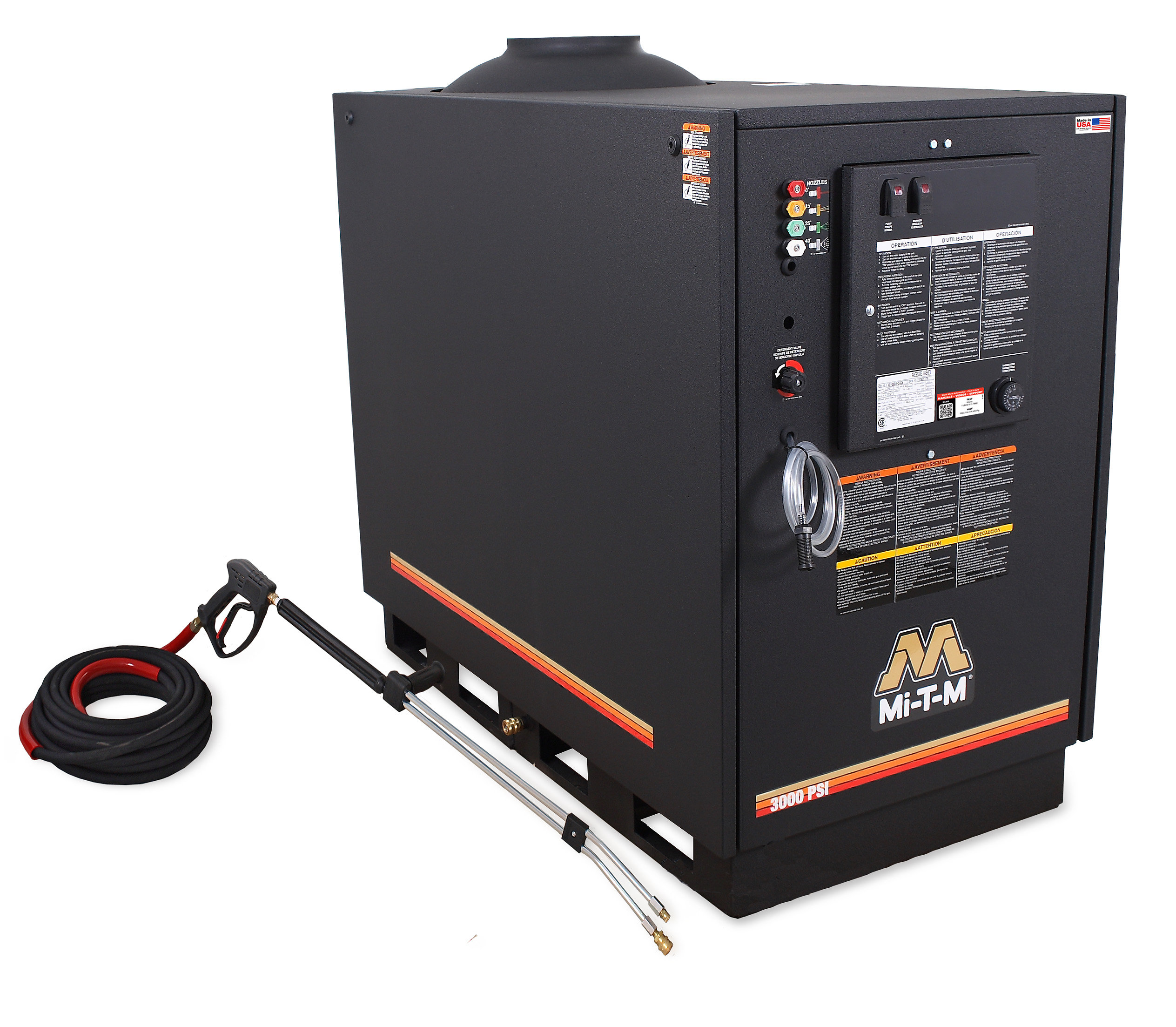

HG Series Natural Gas/LP Belt Drive - HG-3004-3460

Get Started

HG-3004-3460

With its steady fuel source, the stationary HG Series is the ultimate choice for wash bays, delivering performance every time.

Pump
Factory preset trapping unloader · Thermal relief valve · Adjustable high pressure detergent injector

Motor
Open drip-proof motor electric motor with thermal overload protection

Frame
Powder coated steel side panels and frame

Components
Natural gas or LP gas-fired (vapor only) natural draft with aspirating-type burner, 10-inch stack · 24 volt control system · 1/2-inch schedule 80-coil heat exchanger · Electronic ignition with an intermittent pilot · Adjustable thermostat

Miscellaneous
Maximum outlet temperature is 200°F (250°F/121°C outlet temperature with steam option)

Unit Includes
Quick connect nozzles - 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire-braided hose · Adjustable pressure insulated dual lance with trigger gun

Specifications

PSI

3000
GPM

3.9
Horsepower/Motor

8.0 HP, 460V, 3Ø, 10.0A
Pump

General
Natural Gas BTU Per Hour

338,000
LP Gas BTU Per Hour

326,000
Draft Diverter

21 in.

Weights & Dimensions

Net Weight

758.00 lbs.
Shipping Weight

878.00 lbs.
Length

56.50 in.
Width

29.00 in.
Height

49.75 in.

Options - must be ordered with unit and cannot be added later.

HX-0104 K7 Unloader, Flow Activated - Auto Start/Stop N/A

Converts pressure trapping unloader system to flow actuated K7 unloader. Pressure is not trapping in the discharge line when trigger is released
HX-0105 Liquid Propane - Vapor Only

Converts natural gas pressure washer to operate on liquid propane (vapor only)
HX-0106 Hour Meter

Displays the number of hours unit has been in operation
HX-0107 Time Delay Shutdown

Timer will shut unit off automatically when trigger gun is released and timer reaches setting **Consult factory before ordering this option.**
HX-0108 (1) Remote Station - Auto Start/Stop N/A

Adds control box which may be mounted away from unit to control on/off, burner and soap injection **Consult factory before ordering this option.**
HX-0109 Time Delay Shutdown and First Remote Box

Timer will shut unit off automatically when trigger gun is released and timer reaches setting; Adds control box which may be mounted away from unit to control on/off, burner and soap injection **Consult factory before ordering this option.**
HX-0110 Additional Remotes - Up To 3

Additional remotes that may be added to unit after the first remote is installed
HX-0111 Auto Start/Stop

When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart
HX-0121 250°F Steam Upgrade

Steam option adjusts unloader valve counter-clockwise increasing outlet temperature to 250°F while lowering system pressure
HX-0124 Auto Start/Stop and First Remote Option

When trigger gun is released timer will turn unit off, when trigger gun is pulled unit will restart; Adds control box which may be mounted away from unit to control on/off, burner and soap injection
HX-0296 Programmable Logic Controller

Includes auto start/ stop and timed lockout
HX-0297 Programmable Logic Controller with First Remote

Includes auto start/stop, timed lockout and detergent solenoid
HX-0299 Auto Start/Stop and First Remote Option - Metal Control Box

When trigger gun is released, the timer will turn unit off; when trigger gun is pulled, unit will restart; Adds metal control box, may be mounted away from unit to control on/off, burner and soap injection
HX-0288 (1) Remote Station (Auto Start/Stop Not Available), Metal Control Box

Adds plastic control box with rocker switches, can be mounted away from unit to control on/off, burner and soap injection **Consult factory before ordering this option**
HX-0289 Time Delay Shutdown and First Remote, Metal Control Box

Timer will shut unit off automatically when trigger gun is released and timer reaches setting; adds metal control box with rocker switches, can be mounted away from unit to control on/off, burner and soap injection **Consult factory before ordering this option**
HX-0290 Addition Remotes (Up to 3), Metal Control Box

Additional metal control boxes with rocker switches, can be added to unit after the first remote is installed
HX-0304 Programmable Logic Controller with First Remote, Metal Control Box

Includes auto start/stop and timed lockout
HX-0305 Additional Programmable Logic Controller Remotes, Plastic Control Box

Adds additional remotes to PLC
HX-0306 Additional Programmable Logic Controller Remotes, Metal Control Box

Adds additional remotes to PLC

Warranty Information

1 Year Electric Motor
3 Year Coil
7 Year General Pump
